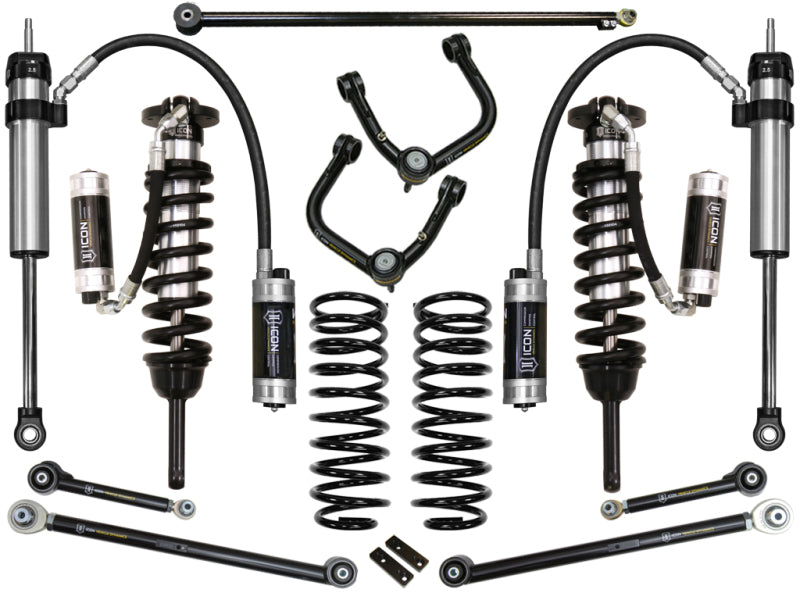

ICON K53067T Stage 7 Suspension System for 2010-2024 Toyota 4Runner and 2010-2014 FJ Cruiser

ICON Vehicle Dynamics 2010-2024 Toyota 4Runner and 2010-2014 Toyota FJ Cruiser suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. This Stage 7 system includes vehicle-specific tuned, extended travel 2.5” coilover shocks featuring CDCV equipped remote reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable for 0-3.5” of front lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. Tubular Delta Joint upper control arms not only add strength and durability, but help retain factory alignment specs, increasing caster over stock and allow proper wheel alignment at the lift height this system provides. ICON's tubular steel upper and lower links are much stronger than the OE units, feature a low maintenance multi-durometer bushing, and can be adjusted for optimum pinion angle. ICON rear coil springs deliver on-road comfort and superior off-road performance with 2” of rear lift height over stock for a level stance front to rear. An adjustable rear track bar is included to provide proper rear axle alignment, improve articulation, and ensure fitment on KDSS equipped 4Runners. The 2.5 Aluminum Series CDCV remote reservoir rear shocks’ larger diameter offers outstanding performance off-road and a smooth ride on the street with adjustable compression damping. ICON suspension systems lift your 4Runner or FJ Cruiser while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market. APPLICATION NOTE #46: Suspension system compatible with KDSS. Front sway bar relocation brackets not used for KDSS equipped vehicles. Certain years require trimming for front reservoir bracket fitment.

• 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• Tubular upper and lower rear links offer increased strength, improved geometry, and pinion angle adjustment
• CDC Valve technology allows for quick and easy compression damping adjustment without the need for tools
• Extended Travel remote reservoir coilovers matched with ICON UCAs provide increased front droop travel
• Tubular upper control arms for added strength, durability, and improved alignment geometry
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• Adjustable rear track bar proper rear axle placement under vehicle
• FK Rod End bearings for extended longevity and minimal deflection
• Bolt-on system means no cutting or welding necessary for install
• Adjustable coilovers provide 0-3.5" of front lift height
• 6061 aircraft grade aluminum CNC machined components
• Increased wheel travel and ride quality over stock

The ICON K53067T Stage 7 Suspension System is engineered for drivers who demand improved control, comfort, and off-road capability from their 2010-2024 Toyota 4Runner or 2010-2014 Toyota FJ Cruiser. This complete suspension package combines vehicle-specific tuned shocks, extended-travel coilovers, ICON coil springs, tubular upper and lower links, Delta Joint upper control arms, and an adjustable rear track bar. The system is compatible with KDSS-equipped 4Runners and is designed to increase wheel travel, improve suspension geometry, and provide a controlled ride on both pavement and demanding terrain.
The front extended-travel 2.5-inch coilover shocks feature CDCV-equipped remote reservoirs for improved cooling and externally adjustable compression damping. The adjustable coilovers provide 0 to 3.5 inches of front lift over stock, allowing fitment of larger wheel and tire combinations while maintaining a balanced suspension setup. ICON-engineered coil springs enhance vehicle feel throughout the range of travel, while the tubular upper control arms improve strength, durability, caster, and alignment capability at the lifted ride height. Rear ICON coil springs provide approximately 2 inches of lift for a level front-to-rear stance, and the adjustable track bar helps maintain proper axle alignment and articulation.
The system includes 2.5 Aluminum Series CDCV remote reservoir rear shocks with corrosion-resistant, impact-extruded aluminum bodies for consistent performance and long-term durability. Tubular rear links offer increased strength, improved suspension geometry, and adjustable pinion angle control, while FK rod-end bearings help reduce deflection and extend service life. CNC-machined 6061 aircraft-grade aluminum components and CAD-plated coilover bodies further support reliable operation in demanding conditions. The bolt-on design requires no cutting or welding, although certain applications may require trimming for front reservoir bracket clearance. Front sway bar relocation brackets are not used on KDSS-equipped vehicles.

Features:

• Application: Fits 2010-2024 Toyota 4Runner and 2010-2014 Toyota FJ Cruiser applications

• Lift Height: Adjustable front coilovers provide 0 to 3.5 inches of lift over stock

• Rear Lift: ICON rear coil springs provide approximately 2 inches of lift for a level stance

• Damping Adjustment: CDC Valve technology provides 10 levels of externally adjustable compression damping without tools

• Shock Design: Vehicle-specific tuned front and rear shocks improve ride control and off-road performance

• Reservoirs: Remote reservoirs improve shock cooling and sustained performance

• Control Arms: Tubular Delta Joint upper control arms improve strength, caster, and alignment geometry

• Rear Links: Tubular upper and lower links provide increased strength and adjustable pinion angle control

• Track Bar: Adjustable rear track bar maintains proper axle placement and improves articulation

• Materials: 6061 aircraft-grade aluminum components and corrosion-resistant shock bodies enhance durability

• Installation: Bolt-on design requires no cutting or welding

• Compatibility: Designed for KDSS-equipped 4Runners; front sway bar relocation brackets are not used with KDSS

Compatible With
2010 Lexus GX460
2010 Toyota 4Runner
2010 Toyota FJ Cruiser
2011 Lexus GX460
2011 Toyota 4Runner
2011 Toyota FJ Cruiser
2012 Lexus GX460
2012 Toyota 4Runner
2012 Toyota FJ Cruiser
2013 Lexus GX460
2013 Toyota 4Runner
2013 Toyota FJ Cruiser
2014 Lexus GX460
2014 Toyota 4Runner
2014 Toyota FJ Cruiser
2015 Lexus GX460
2015 Toyota 4Runner
2016 Lexus GX460
2016 Toyota 4Runner
2017 Lexus GX460
2017 Toyota 4Runner
2018 Lexus GX460
2018 Toyota 4Runner
2019 Lexus GX460
2019 Toyota 4Runner
2020 Lexus GX460
2020 Toyota 4Runner
2021 Lexus GX460
2021 Toyota 4Runner
2022 Lexus GX460
2022 Toyota 4Runner
2023 Lexus GX460
2023 Toyota 4Runner
2024 Toyota 4Runner
