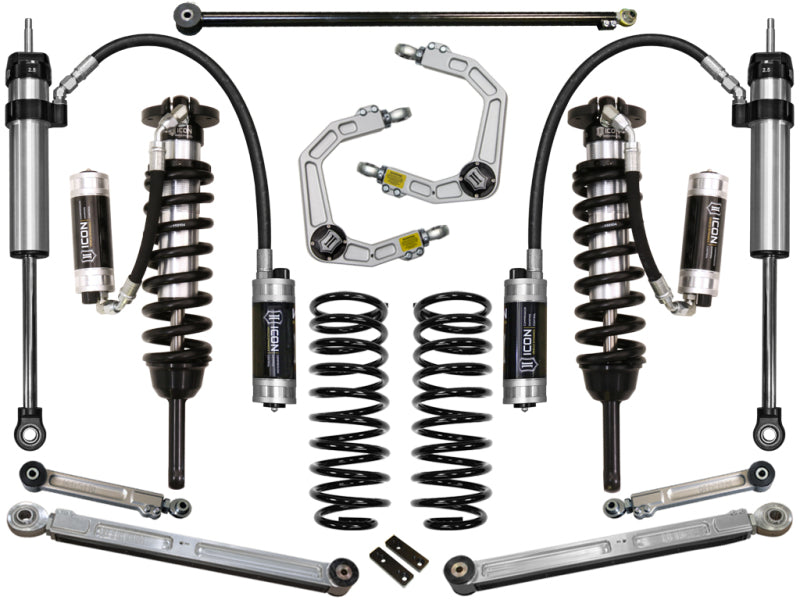

ICON K53067 Stage 7 Suspension System for 2010-2024 Toyota 4Runner and 2010-2014 FJ Cruiser

ICON Vehicle Dynamics 2010-2024 Toyota 4Runner and 2010-2014 Toyota FJ Cruiser suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. This Stage 7 system includes vehicle-specific tuned, extended travel 2.5” coilover shocks featuring CDCV equipped remote reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable for 0-3.5” of front lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. Billet aluminum Delta Joint upper control arms not only add strength and durability but help retain factory alignment specs, offer on-vehicle caster/camber adjustment, and allow proper wheel alignment at the lift height this system provides. ICON billet aluminum adjustable rear upper and lower links are made from CNC machined 6061 aluminum and anodized for corrosion resistance. These link arm kits feature PTFE-lined FK rod ends and greaseable polyurethane bushings for increased suspension articulation, reduced deflection, and on-vehicle link arm length adjustability. ICON rear coil springs deliver on-road comfort and superior off-road performance with 2” of rear lift height over stock for a level stance front to rear. An adjustable rear track bar is included to provide proper rear axle alignment, improve articulation, and ensure fitment on KDSS equipped 4Runners. The 2.5 Aluminum Series CDCV remote reservoir rear shocks’ larger diameter offers outstanding performance off-road and a smooth ride on the street with adjustable compression damping. ICON suspension systems lift your 4Runner or FJ Cruiser while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market. APPLICATION NOTE #46: Suspension system compatible with KDSS. Front sway bar relocation brackets not used for KDSS equipped vehicles. Certain years require trimming for front reservoir bracket fitment.

• 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• Billet aluminum upper control arms for added strength, durability, adjustability, and improved alignment geometry
• CDC Valve technology allows for quick and easy compression damping adjustment without the need for tools
• Extended Travel remote reservoir coilovers matched with ICON UCAs provide increased front droop travel
• Billet Aluminum rear upper and lower links offer on vehicle pinion angle adjustment
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• Adjustable rear track bar proper rear axle placement under vehicle
• FK Rod End bearings for extended longevity and minimal deflection
• Bolt-on system means no cutting or welding necessary for install
• Adjustable coilovers provide 0-3.5" of front lift height
• 6061 aircraft grade aluminum CNC machined components
• Increased wheel travel and ride quality over stock

The ICON K53067 Stage 7 Suspension System is engineered for serious drivers who want improved control, ride quality, and wheel travel from their 2010-2024 Toyota 4Runner or 2010-2014 Toyota FJ Cruiser. This complete suspension package combines vehicle-specific tuned shocks, adjustable coilovers, billet aluminum control arms, rear links, coil springs, and an adjustable track bar to deliver balanced performance on the street and off-road. The system is compatible with KDSS-equipped 4Runners, with application-specific installation considerations for front reservoir bracket clearance.
The extended-travel 2.5-inch front coilovers feature CDCV remote reservoirs for improved cooling and externally adjustable compression damping. ICON CDC Valve technology provides 10 levels of compression adjustment without tools, while the adjustable coilovers provide 0-3.5 inches of front lift over stock. ICON-engineered coil springs and vehicle-specific tuning help maintain confident handling throughout the suspension travel range. The included billet aluminum Delta Joint upper control arms add strength, improve alignment geometry, and provide on-vehicle caster and camber adjustment at the lifted ride height.
At the rear, ICON 2.5 Aluminum Series CDCV remote reservoir shocks deliver consistent damping, corrosion resistance, and a smooth ride both on pavement and rough terrain. Rear coil springs provide approximately 2 inches of lift for a level stance, while the adjustable track bar helps maintain proper axle placement and improves articulation. CNC-machined 6061 aluminum upper and lower links feature PTFE-lined FK rod ends, greaseable polyurethane bushings, and on-vehicle adjustability for improved suspension control and pinion angle adjustment. This bolt-on system requires no cutting or welding, although certain applications may require trimming for front reservoir bracket fitment.

Features:

• 2.5-inch Aluminum Series rear shocks with impact-extruded aluminum bodies for corrosion resistance and consistent performance

• Billet aluminum Delta Joint upper control arms improve strength, alignment geometry, and adjustability

• CDCV technology provides 10 levels of tool-free compression damping adjustment

• Extended-travel remote reservoir front coilovers increase front droop travel

• Adjustable front coilovers provide 0-3.5 inches of lift over stock

• Vehicle-specific tuned front and rear shocks improve damping and vehicle control

• Billet aluminum rear upper and lower links provide on-vehicle adjustability

• Adjustable rear track bar helps maintain proper rear axle alignment, including on KDSS-equipped vehicles

• FK rod end bearings improve longevity and reduce suspension deflection

• 6061 aircraft-grade aluminum CNC-machined components provide strength and corrosion resistance

• Corrosion-resistant CAD-plated coilover bodies with 7/8-inch shafts

• Rear coil springs provide approximately 2 inches of lift for a level stance

• Bolt-on installation requires no cutting or welding

• Designed to increase wheel travel, ride quality, and off-road performance

Compatible With
2010 Lexus GX460
2010 Toyota 4Runner
2010 Toyota FJ Cruiser
2011 Lexus GX460
2011 Toyota 4Runner
2011 Toyota FJ Cruiser
2012 Lexus GX460
2012 Toyota 4Runner
2012 Toyota FJ Cruiser
2013 Lexus GX460
2013 Toyota 4Runner
2013 Toyota FJ Cruiser
2014 Lexus GX460
2014 Toyota 4Runner
2014 Toyota FJ Cruiser
2015 Lexus GX460
2015 Toyota 4Runner
2016 Lexus GX460
2016 Toyota 4Runner
2017 Lexus GX460
2017 Toyota 4Runner
2018 Lexus GX460
2018 Toyota 4Runner
2019 Lexus GX460
2019 Toyota 4Runner
2020 Lexus GX460
2020 Toyota 4Runner
2021 Lexus GX460
2021 Toyota 4Runner
2022 Lexus GX460
2022 Toyota 4Runner
2023 Lexus GX460
2023 Toyota 4Runner
2024 Toyota 4Runner
