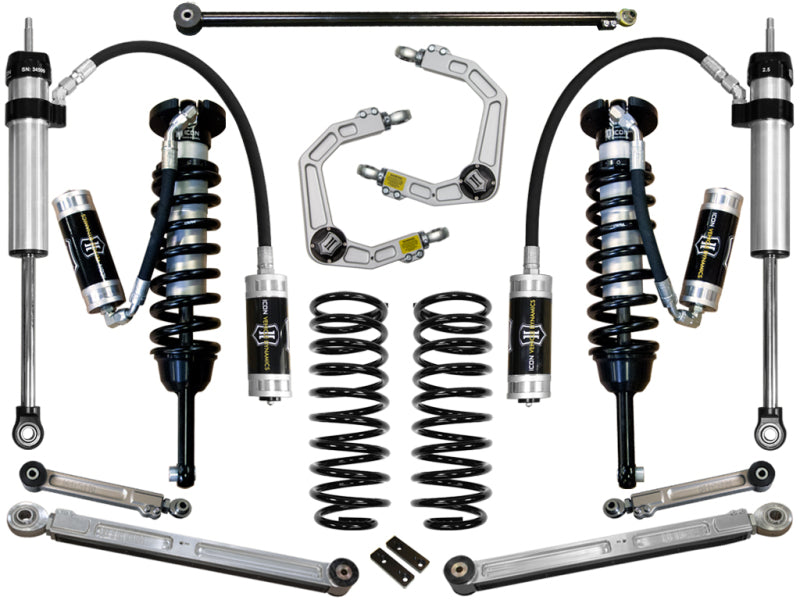

ICON K53066 Stage 6 Suspension System for 2010-2024 Toyota 4Runner and 2010-2014 FJ Cruiser

ICON Vehicle Dynamics 2010-2024 Toyota 4Runner and 2010-2014 Toyota FJ Cruiser suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. This Stage 6 system includes vehicle-specific tuned, extended travel 2.5” coilover shocks featuring remote reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable for 0-3.5” of front lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. Billet aluminum Delta Joint upper control arms not only add strength and durability but help retain factory alignment specs, offer on-vehicle caster/camber adjustment, and allow proper wheel alignment at the lift height this system provides. ICON billet aluminum adjustable rear upper and lower links are made from CNC machined 6061 aluminum and anodized for corrosion resistance. These link arm kits feature PTFE-lined FK rod ends and greaseable polyurethane bushings for increased suspension articulation, reduced deflection, and on-vehicle link arm length adjustability. ICON rear coil springs deliver on-road comfort and superior off-road performance with 2” of rear lift height over stock for a level stance front to rear. An adjustable rear track bar is included to provide proper rear axle alignment, improve articulation, and ensure fitment on KDSS equipped 4Runners. The 2.5 Aluminum Series rear shocks’ larger diameter offers outstanding performance off-road and a smooth ride on the street. Remote reservoirs ensure optimum performance by keeping the shocks at a cooler operating temperature during heavy use. They also feature a unique internal Bump Zone that creates an additional 20% of damping force to help better control hard bottom outs. ICON suspension systems lift your 4Runner or FJ Cruiser while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market. APPLICATION NOTE #46: Suspension system compatible with KDSS. Front sway bar relocation brackets not used for KDSS equipped vehicles. Certain years require trimming for front reservoir bracket fitment.

• Billet aluminum upper control arms for added strength, durability, adjustability, and improved alignment geometry
• Extended Travel remote reservoir coilovers matched with ICON UCAs provide increased front droop travel
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Billet Aluminum rear upper and lower links offer on vehicle pinion angle adjustment
• Adjustable rear track bar for proper rear axle placement under vehicle
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts
• FK Rod End bearings for extended longevity and minimal deflection
• Bolt-on system means no cutting or welding necessary for install
• Adjustable coilovers provide 0-3.5" of front lift height
• 6061 aircraft grade aluminum CNC machined components
• Increased wheel travel and ride quality over stock

The ICON K53066 Stage 6 Suspension System is engineered for serious 2010-2024 Toyota 4Runner and 2010-2014 Toyota FJ Cruiser drivers who demand improved control, ride quality, and off-road capability. The system combines vehicle-specific tuned, extended-travel 2.5-inch front coilover shocks with remote reservoirs, ICON-engineered coil springs, billet aluminum Delta Joint upper control arms, adjustable rear links, rear coil springs, an adjustable rear track bar, and 2.5 Aluminum Series rear shocks. Together, these components increase wheel travel and improve damping performance on and off the road.
The height-adjustable front coilovers provide 0-3.5 inches of front lift over stock, while the rear coil springs provide approximately 2 inches of lift for a balanced stance. Remote reservoirs help maintain consistent shock performance during demanding use by improving cooling capacity. The rear shocks also feature ICON’s internal Bump Zone, which adds damping force to help control hard bottom-out events. Vehicle-specific tuning delivers responsive handling, improved suspension control, and a smoother street ride without sacrificing off-road performance.
Billet aluminum upper control arms strengthen the front suspension, support improved alignment geometry, and provide on-vehicle caster and camber adjustment. CNC-machined 6061 aluminum rear upper and lower links feature PTFE-lined FK rod ends and greaseable polyurethane bushings for increased articulation, reduced deflection, and adjustable pinion angle control. The adjustable rear track bar helps maintain proper axle placement and supports fitment on KDSS-equipped 4Runners. This bolt-on system requires no cutting or welding, although certain applications may require trimming for front reservoir bracket clearance. On KDSS-equipped vehicles, front sway bar relocation brackets are not used.

Features:

• Billet aluminum upper control arms provide increased strength, durability, adjustability, and improved alignment geometry

• Extended-travel remote-reservoir coilovers increase front droop travel and provide 0-3.5 inches of front lift

• Vehicle-specific tuned front and rear shocks deliver improved damping, control, and ride quality

• Billet aluminum rear upper and lower links provide on-vehicle pinion angle adjustment

• Adjustable rear track bar helps maintain proper rear axle placement and supports KDSS-equipped 4Runners

• Corrosion-resistant CAD-plated coilover shock bodies with 7/8-inch shafts

• 2.5 Aluminum Series remote-reservoir rear shocks with 7/8-inch shafts

• FK rod end bearings provide extended service life and reduced suspension deflection

• Bolt-on installation requires no cutting or welding

• 6061 aircraft-grade aluminum CNC-machined components

• Rear coil springs provide approximately 2 inches of lift for a balanced front-to-rear stance

• Internal rear shock Bump Zone adds damping force to help control hard bottom-outs

• Compatible with 2010-2024 Toyota 4Runner and 2010-2014 Toyota FJ Cruiser applications

Compatible With
2010 Lexus GX460
2010 Toyota 4Runner
2010 Toyota FJ Cruiser
2011 Lexus GX460
2011 Toyota 4Runner
2011 Toyota FJ Cruiser
2012 Lexus GX460
2012 Toyota 4Runner
2012 Toyota FJ Cruiser
2013 Lexus GX460
2013 Toyota 4Runner
2013 Toyota FJ Cruiser
2014 Lexus GX460
2014 Toyota 4Runner
2014 Toyota FJ Cruiser
2015 Lexus GX460
2015 Toyota 4Runner
2016 Lexus GX460
2016 Toyota 4Runner
2017 Lexus GX460
2017 Toyota 4Runner
2018 Lexus GX460
2018 Toyota 4Runner
2019 Lexus GX460
2019 Toyota 4Runner
2020 Lexus GX460
2020 Toyota 4Runner
2021 Lexus GX460
2021 Toyota 4Runner
2022 Lexus GX460
2022 Toyota 4Runner
2023 Lexus GX460
2023 Toyota 4Runner
2024 Toyota 4Runner
