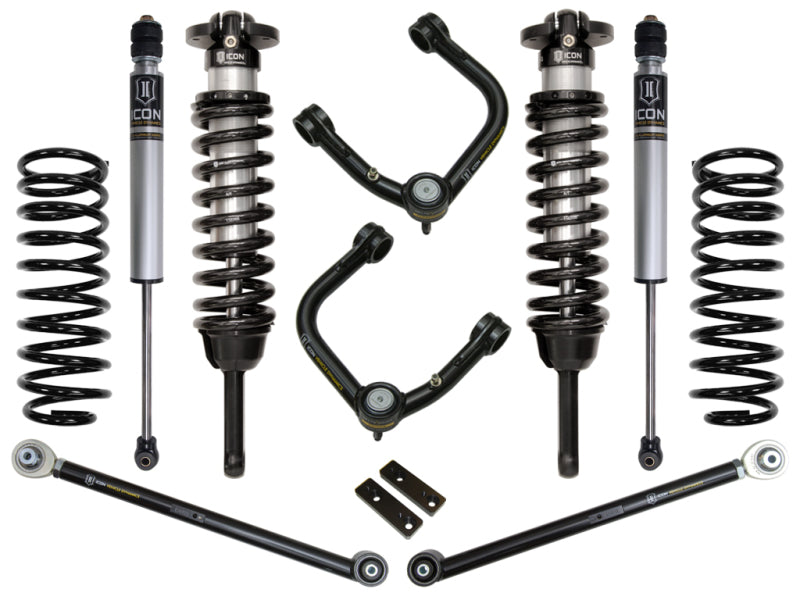

ICON K53063T Stage 3 Suspension System with Tubular Upper Control Arms for 2010-2024 Toyota 4Runner and 2010-2014 Toyota FJ Cruiser

ICON Vehicle Dynamics 2010-2024 Toyota 4Runner and 2010-2014 Toyota FJ Cruiser suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. This Stage 3 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable for 0-3.5” of front lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. Their extended travel length improves performance by increasing front wheel travel and require the addition of ICON front upper control arms. Tubular Delta Joint upper control arms not only add strength and durability, but help retain factory alignment specs, increasing caster over stock and allow proper wheel alignment at the lift height this system provides. ICON's tubular steel lower links are much stronger than the OE units, feature a low maintenance multi-durometer bushing, and can be adjusted for optimum pinion angle. ICON rear coil springs deliver on-road comfort and superior off-road performance with 2” of rear lift height over stock for a level stance front to rear. ICON 2.0 Aluminum Series internal reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2010-2024 Toyota 4Runner and 2010-2014 Toyota FJ Cruiser Stage 3 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt. ICON suspension systems lift your 4Runner or FJ Cruiser while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market. APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation.

• Tubular rear lower links offer increased strength, improved geometry, and pinion angle adjustment
• Tubular upper control arms for added strength, durability, and improved alignment geometry
• Extended Travel coilovers matched with ICON UCA provides increased front droop travel
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• 2.0 Aluminum Series rear internal reservoir shocks with 5/8" shafts
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• FK Rod End bearings for extended longevity and minimal deflection
• Bolt-on system means no cutting or welding necessary for install
• Adjustable coilovers provide 0-3.5" of front lift height
• 6061 aircraft grade aluminum CNC machined components
• Increased wheel travel and ride quality over stock

Upgrade your Toyota 4Runner or FJ Cruiser with the ICON Vehicle Dynamics K53063T Stage 3 Suspension System, engineered to improve wheel travel, damping performance, ride quality, and vehicle control on pavement and off-road terrain. This complete suspension solution combines vehicle-specific shock tuning with durable, adjustable components designed for serious drivers who want enhanced capability without sacrificing everyday drivability. The bolt-on design requires no cutting or welding for installation.
The system includes height-adjustable front 2.5-inch coilovers with internal reservoirs, corrosion-resistant CAD-plated bodies, 7/8-inch shafts, and ICON-engineered coil springs. The coilovers provide 0 to 3.5 inches of front lift over stock, helping accommodate larger wheel and tire combinations while increasing front droop travel. Tubular Delta Joint upper control arms improve strength, durability, and alignment geometry while helping maintain factory alignment specifications and increase caster at the lifted ride height. FK rod-end bearings support long service life with minimal deflection.
At the rear, ICON coil springs provide approximately 2 inches of lift for a balanced stance, comfortable on-road ride, and improved off-road performance. Tubular steel lower links offer greater strength than original equipment components, improved suspension geometry, and adjustable pinion angle control through low-maintenance multi-durometer bushings. Vehicle-specific tuned ICON 2.0 Aluminum Series internal-reservoir rear shocks feature 5/8-inch shafts and are matched to the front system for controlled damping from end to end.
Designed for 2010-2024 Toyota 4Runner models and 2010-2014 Toyota FJ Cruiser applications, the ICON K53063T Stage 3 system delivers increased travel, improved handling, and dependable performance across varied terrain. A bump stop spacer kit is available separately for applications requiring additional threads beyond the maximum recommended adjustment.

Features:

• Tubular rear lower links provide increased strength, improved suspension geometry, and adjustable pinion angle control

• Tubular Delta Joint upper control arms add strength, durability, and improved alignment geometry

• Extended-travel front coilovers work with ICON upper control arms to increase front droop travel

• Vehicle-specific tuned front and rear shocks deliver improved damping and vehicle control

• 2.0 Aluminum Series rear internal-reservoir shocks feature 5/8-inch shafts

• Corrosion-resistant CAD-plated coilover bodies feature 7/8-inch shafts

• FK rod-end bearings provide extended longevity and minimal deflection

• Bolt-on installation requires no cutting or welding

• Adjustable front coilovers provide 0 to 3.5 inches of lift over stock

• 6061 aircraft-grade aluminum CNC-machined components provide strength and precision

• Increased wheel travel and improved ride quality compared with stock suspension

Compatible With
2010 Lexus GX460
2010 Toyota 4Runner
2010 Toyota FJ Cruiser
2011 Lexus GX460
2011 Toyota 4Runner
2011 Toyota FJ Cruiser
2012 Lexus GX460
2012 Toyota 4Runner
2012 Toyota FJ Cruiser
2013 Lexus GX460
2013 Toyota 4Runner
2013 Toyota FJ Cruiser
2014 Lexus GX460
2014 Toyota 4Runner
2014 Toyota FJ Cruiser
2015 Lexus GX460
2015 Toyota 4Runner
2016 Lexus GX460
2016 Toyota 4Runner
2017 Lexus GX460
2017 Toyota 4Runner
2018 Lexus GX460
2018 Toyota 4Runner
2019 Lexus GX460
2019 Toyota 4Runner
2020 Lexus GX460
2020 Toyota 4Runner
2021 Lexus GX460
2021 Toyota 4Runner
2022 Lexus GX460
2022 Toyota 4Runner
2023 Lexus GX460
2023 Toyota 4Runner
2024 Toyota 4Runner
