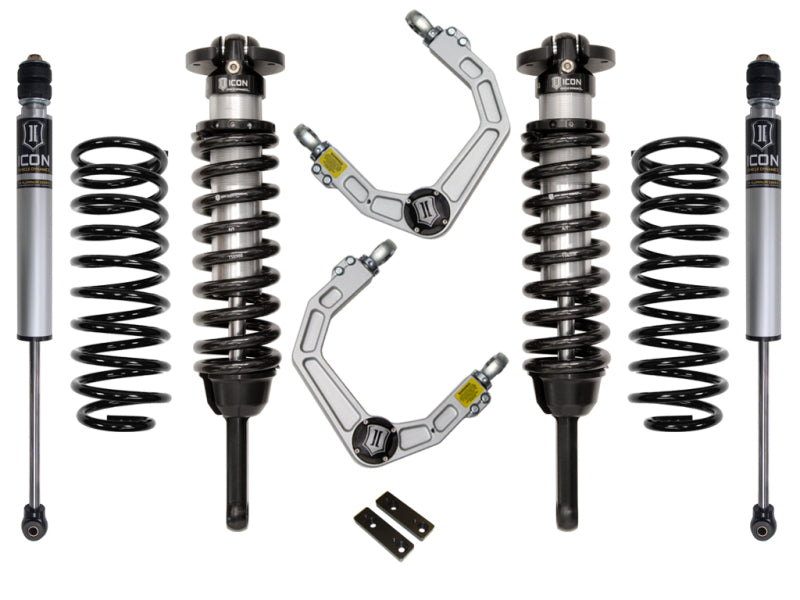

ICON K53062 Stage 2 Suspension System with Billet Upper Control Arms for 2010-2024 Toyota 4Runner and 2010-2014 Toyota FJ Cruiser

ICON Vehicle Dynamics 2010-2024 Toyota 4Runner and 2010-2014 Toyota FJ Cruiser suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. This Stage 2 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable for 0-3.5” of front lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. Their extended travel length improves performance by increasing front wheel travel and require the addition of ICON front upper control arms. Billet aluminum Delta Joint upper control arms not only add strength and durability but help retain factory alignment specs, offer on-vehicle caster/camber adjustment, and allow proper wheel alignment at the lift height this system provides. ICON rear coil springs deliver on-road comfort and superior off-road performance with 2” of rear lift height over stock for a level stance front to rear. ICON 2.0 Aluminum Series internal reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2010-2024 Toyota 4Runner and 2010-2014 Toyota FJ Cruiser Stage 2 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt. ICON suspension systems lift your 4Runner or FJ Cruiser while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market. APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation.

• Billet aluminum upper control arms for added strength, durability, adjustability, and improved alignment geometry
• Extended Travel coilovers matched with ICON UCA provides increased front droop travel
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• 2.0 Aluminum Series internal reservoir rear shocks with 5/8" shafts
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• FK Rod End bearings for extended longevity and minimal deflection
• Bolt-on system means no cutting or welding necessary for install
• Adjustable coilovers provide 0-3.5" of front lift height
• 6061 aircraft grade aluminum CNC machined components
• Increased wheel travel and ride quality over stock

Upgrade your Toyota 4Runner or FJ Cruiser with the ICON Vehicle Dynamics K53062 Stage 2 suspension system, engineered for drivers who demand improved control, ride quality, and off-road capability. Designed for 2010-2024 Toyota 4Runner models and 2010-2014 Toyota FJ Cruiser models, this system combines vehicle-specific shocks, adjustable coilovers, performance coil springs, and billet aluminum upper control arms into a complete suspension solution. ICON engineering focuses on increasing wheel travel and damping performance while maintaining confident handling on pavement and challenging terrain.
The extended-travel front coilovers feature internal reservoirs for improved heat management and are height adjustable from 0 to 3.5 inches of front lift over stock. ICON-engineered coil springs improve vehicle response throughout the suspension range and provide clearance for larger wheel and tire combinations. The included billet aluminum Delta Joint upper control arms add strength, durability, and on-vehicle caster and camber adjustment while helping maintain factory alignment specifications at the increased ride height. Extended travel also improves front suspension droop and requires the included ICON upper control arms for proper operation.
At the rear, ICON coil springs provide approximately 2 inches of lift for a level front-to-rear stance while retaining comfortable on-road manners and capable off-road performance. Vehicle-specific tuned ICON 2.0 Aluminum Series internal reservoir rear shocks balance damping from front to rear and use durable 5/8-inch shafts. Corrosion-resistant coilover bodies, FK rod-end bearings, and CNC-machined 6061 aircraft-grade aluminum components support long-term performance. The bolt-on design requires no cutting or welding. A bump stop spacer kit is available under Application Note 111 for applications requiring additional threads beyond the maximum recommendation. Professional installation and alignment are recommended.

Features:

• Billet aluminum upper control arms improve strength, durability, alignment geometry, and adjustability

• Extended-travel front coilovers increase front suspension droop travel when paired with ICON upper control arms

• Vehicle-specific tuned front and rear shocks provide improved damping, control, and ride quality

• 2.0 Aluminum Series internal reservoir rear shocks feature durable 5/8-inch shafts

• Corrosion-resistant CAD-plated coilover shock bodies use 7/8-inch shafts

• Adjustable front coilovers provide 0-3.5 inches of lift over stock

• ICON rear coil springs provide approximately 2 inches of rear lift for a level stance

• FK rod-end bearings support extended service life and minimize deflection

• Bolt-on installation requires no cutting or welding

• CNC-machined 6061 aircraft-grade aluminum components deliver strength and durability

• Increased wheel travel and improved ride quality over stock suspension

Compatible With
2010 Lexus GX460
2010 Toyota 4Runner
2010 Toyota FJ Cruiser
2011 Lexus GX460
2011 Toyota 4Runner
2011 Toyota FJ Cruiser
2012 Lexus GX460
2012 Toyota 4Runner
2012 Toyota FJ Cruiser
2013 Lexus GX460
2013 Toyota 4Runner
2013 Toyota FJ Cruiser
2014 Lexus GX460
2014 Toyota 4Runner
2014 Toyota FJ Cruiser
2015 Lexus GX460
2015 Toyota 4Runner
2016 Lexus GX460
2016 Toyota 4Runner
2017 Lexus GX460
2017 Toyota 4Runner
2018 Lexus GX460
2018 Toyota 4Runner
2019 Lexus GX460
2019 Toyota 4Runner
2020 Lexus GX460
2020 Toyota 4Runner
2021 Lexus GX460
2021 Toyota 4Runner
2022 Lexus GX460
2022 Toyota 4Runner
2023 Lexus GX460
2023 Toyota 4Runner
2024 Toyota 4Runner
