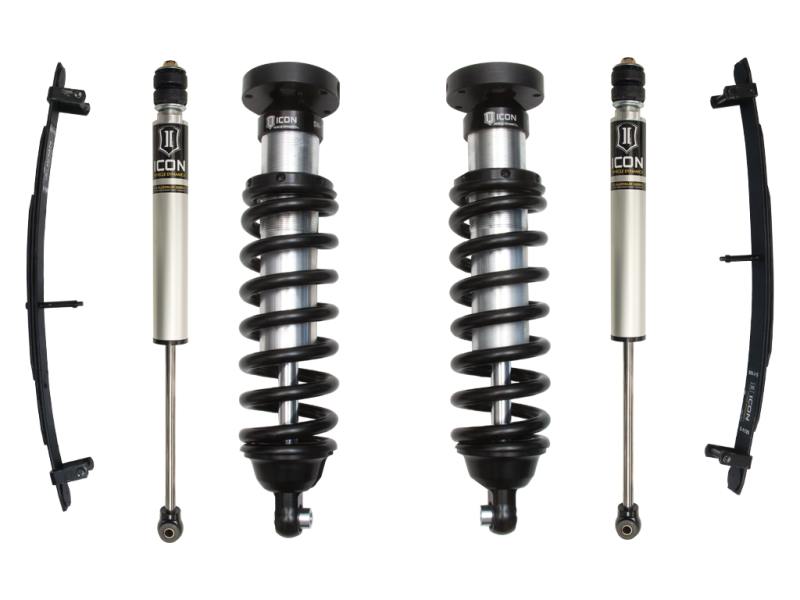

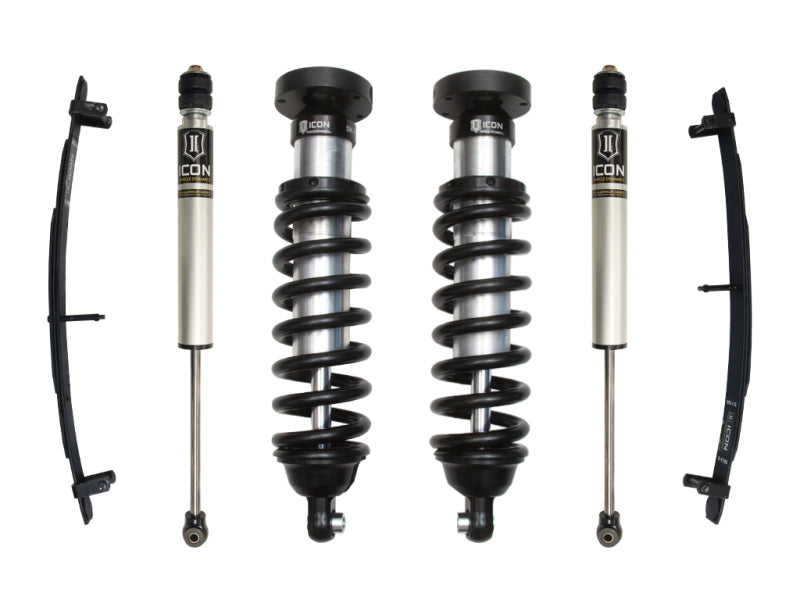

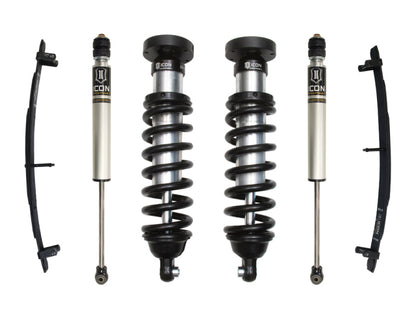

ICON K53032 Stage 2 Suspension System for 2000-2006 Toyota Tundra, 0-2.5-Inch Lift

ICON Vehicle Dynamics Toyota Tundra Stage 2 suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 2 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties. These coilovers are also height adjustable from 0-2.5” of lift allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 VS Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2000 - 2006 Toyota Tundra Stage 2 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt. 2000-2006 TOYOTA TUNDRA 0-2.5" LIFT STAGE 2 SUSPENSION SYSTEM Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)

• Increased wheel travel and ride quality over stock with no change in towing capacity
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install
• 2.0 VS Aluminum Series rear shocks with 5/8" polished chrome shaft
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• FK rod end bearings for extended longevity and minimal deflection
• 6061 Aircraft grade aluminum CNC machined components
• Adjustable coilovers from 0-2.5" of lift height

The ICON Vehicle Dynamics K53032 Stage 2 suspension system is designed for 2000-2006 Toyota Tundra models seeking improved wheel travel, damping performance, and ride control on both paved roads and off-road terrain. This complete suspension package combines vehicle-specific front and rear shock tuning with adjustable front coilovers to enhance handling and comfort without changing the truck’s towing capacity. The system is engineered for drivers who want stronger suspension performance while maintaining a practical, bolt-on installation.
The front 2.5-inch coilover shocks feature internal reservoirs for improved heat management during demanding driving conditions. Their adjustable design provides 0 to 2.5 inches of lift, supporting more aggressive wheel and tire combinations while allowing ride height customization. Corrosion-resistant CAD-plated shock bodies, 7/8-inch shafts, FK rod end bearings, and CNC-machined 6061 aircraft-grade aluminum components provide durable construction for extended use. The included ICON 2.0 VS Aluminum Series rear monotube shocks use vehicle-specific valving to balance suspension performance from front to rear and feature polished 5/8-inch shafts.
The ICON K53032 Stage 2 system is a 100% bolt-on upgrade requiring no drilling, cutting, or welding for installation. It is recommended for use with aftermarket tires up to 33 inches by 11.50 inches; larger tire applications may require fender trimming or additional vehicle modifications. This suspension system fits select 2000-2006 Toyota Tundra applications, including the listed model years, and is intended to provide improved control, increased travel, and more consistent damping for street, trail, and off-road driving.

Features:

• Increased wheel travel and ride quality compared with stock suspension without changing towing capacity

• Vehicle-specific tuned front and rear shocks for improved damping and vehicle control

• 100% bolt-on installation with no drilling, cutting, or welding required

• Adjustable front coilovers provide 0 to 2.5 inches of lift

• Internal-reservoir 2.5-inch front coilover shocks support improved cooling during demanding use

• ICON 2.0 VS Aluminum Series rear monotube shocks with polished 5/8-inch shafts

• Corrosion-resistant CAD-plated coilover shock bodies with 7/8-inch shafts

• FK rod end bearings provide extended service life and reduced deflection

• CNC-machined components made from 6061 aircraft-grade aluminum

• Recommended aftermarket tire size is up to 33 inches by 11.50 inches; larger tires may require fender trimming and modifications

Compatible With
2000 Toyota Tundra
2001 Toyota Tundra
2002 Toyota Tundra
2003 Toyota Tundra
2004 Toyota Tundra
2005 Toyota Tundra
2006 Toyota Tundra
