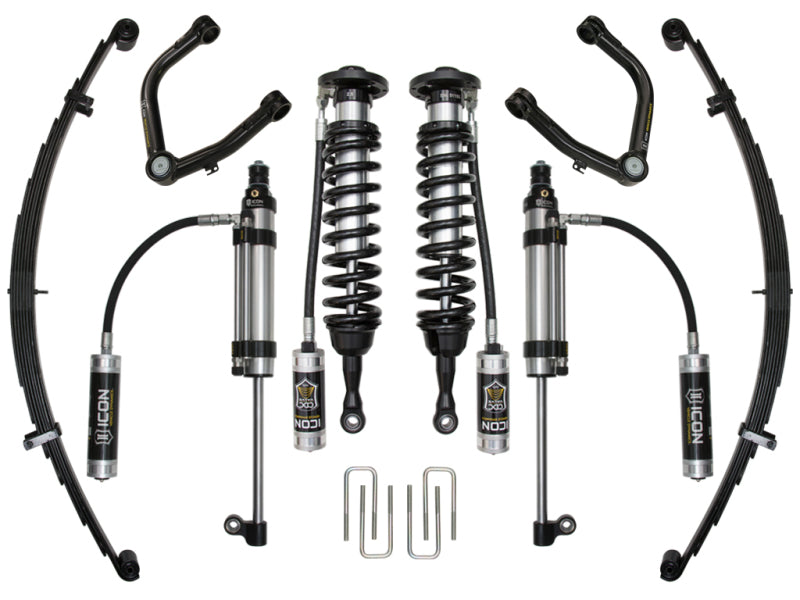

ICON K53030T Stage 10 Suspension System with Tubular Upper Control Arms for 2007-2021 Toyota Tundra

The Stage 10 system includes vehicle-specific tuned 2.5 Series Extended Travel coilover shocks equipped with ICON's CDC (Compression Damping Control) Valve. The easy-to-adjust CDC Valve allows for end-user compression changes to provide optimal ride quality across all types of terrain and vehicle cargo configurations. In addition, the coilovers feature a remote reservoir for exceptional cooling properties, ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel, and are height adjustable from 1-3” of lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. Used in conjunction with the included ICON upper control arm, these extended travel coilovers add increased droop travel to the front suspension. To further increase the ride quality of the truck and gain additional droop travel, the ICON RXT multi-rate leaf springs are added to the rear. Designed with an additional leaf (included with kit) that can be exchanged or added to the pack to yield an additional spring rate, this leaf spring is perfect for drivers seeking improved rear ride quality in an “unloaded” vehicle as well as those that are have outfitted their trucks with a significant amount of weight in the form of a bed rack, roof top tent, spare tires, parts, or other additions. To compliment this increase in rear wheel travel the Stage 10 system includes a unique 2.5 Aluminum Series remote reservoir Omega bypass shock that features a side-mount eyelet that making it shorter in collapsed length, longer at extension, and still fits in the factory mounting location. This shock combines vehicle-specific valving with compression and rebound adjustment giving end-users ultimate control of performance and ride quality while a large ten-inch remote reservoir was also added to aid in heat dissipation and resist shock fade during spirited driving. 2007-2021 TUNDRA 1-3" LIFT STAGE 10 SUSPENSION SYSTEM WITH TUBULAR UPPER CONTROL ARMS APPLICATION NOTE #87: INSTALLATION OF COMPLETE ICON SYSTEM REQUIRED TO ATTAIN ADVERTISED WHEEL TRAVEL. USE OF ANY OTHER MANUFACTURERS COMPONENTS WILL NOT PROVIDE ADVERTISED WHEEL TRAVEL AND COULD CAUSE UNKNOWN DAMAGE.

• 2.5 Aluminum Series RXT rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• 10” aluminum reservoirs in RXT shocks provide generous oil and nitrogen volume for consistent damping as shock temperature increases
• Unique side-mounted lower eyelet allows for increased rear shock travel while utilizing factory mounting location
• Omega Series two-tube bypass rear shocks allow for 24 settings of compression and rebound damping adjustment
• CDC Valve technology allows for 10 settings of quick and easy compression damping adjustment
• Vehicle-specific tuned front and rear shocks for superior shock damping and control
• Increased wheel travel when used with RXT shock without sacrificing up-travel
• 3 user-adjustable rear leaf spring rates for unique vehicle configurations
• Galvanized leaf separators reduce friction and aid in corrosion resistance
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• FK Rod End bearings for extended longevity and minimal deflection
• Bolt-on system means no cutting or welding necessary for install
• Military wrap front leaf spring eyelets for increased durability
• Leaf spring tip inserts reduce noise and increase ride comfort
• Adjustable coilovers provide 1-3" of front lift height
• 6061 aircraft grade aluminum CNC machined components
• Increased wheel travel and ride quality over stock
• Shocks are fully rebuildable and revalveable

Upgrade your 2007-2021 Toyota Tundra with the ICON K53030T Stage 10 Suspension System, engineered to improve ride quality, suspension control, and wheel travel on and off the road. This complete system includes vehicle-specific tuned 2.5 Series Extended Travel front coilovers with ICON CDC Compression Damping Control Valves, remote reservoirs, ICON-engineered Eibach coil springs, and adjustable front lift from 1 to 3 inches over stock. The extended-travel coilovers work with the included tubular upper control arms to increase front droop travel while maintaining a bolt-on installation with no cutting or welding required.
The rear suspension package includes ICON RXT multi-rate leaf springs and 2.5 Aluminum Series remote reservoir Omega bypass shocks. The RXT leaf springs include an additional leaf that can be exchanged or added to adjust the spring rate for different vehicle configurations, including unloaded trucks or builds carrying bed racks, rooftop tents, spare tires, tools, and other equipment. The rear shocks feature a side-mounted lower eyelet that increases extended travel while fitting the factory mounting location, along with vehicle-specific valving and adjustable compression and rebound damping for precise performance tuning.
The ICON K53030T Stage 10 system is designed as a complete ICON suspension system. Use of components from other manufacturers may prevent the advertised wheel travel and could cause unknown damage. Its corrosion-resistant, rebuildable, and revalveable shocks use aircraft-grade aluminum components, large remote reservoirs, and durable construction to help manage heat and maintain consistent damping during demanding driving. Verify vehicle configuration and application compatibility before installation.

Features:

• 10-position CDC Valve provides quick and easy front compression damping adjustment

• Omega bypass rear shocks provide 24 settings of compression and rebound damping adjustment

• 10-inch aluminum remote reservoirs increase oil and nitrogen volume for consistent damping as temperatures rise

• Side-mounted lower eyelet increases rear shock travel while using the factory mounting location

• Vehicle-specific front and rear shock valving improves damping and suspension control

• RXT multi-rate rear leaf springs offer three user-adjustable spring rates for different vehicle configurations

• Extended-travel coilovers provide adjustable front lift from 1 to 3 inches

• ICON-engineered Eibach coil springs improve vehicle feel throughout the suspension travel range

• Tubular upper control arms support increased front droop travel

• Galvanized leaf separators reduce friction and improve corrosion resistance

• Military-wrap front leaf spring eyelets increase durability

• Leaf spring tip inserts help reduce noise and improve ride comfort

• Corrosion-resistant CAD-plated coilover bodies use durable 7/8-inch shafts

• FK rod-end bearings provide extended longevity and minimal deflection

• 6061 aircraft-grade aluminum CNC-machined components deliver strength and corrosion resistance

• Bolt-on design requires no cutting or welding for installation

• Shocks are fully rebuildable and revalveable

• Complete ICON system installation is required to achieve advertised wheel travel

Compatible With
2007 Toyota Tundra
2008 Toyota Tundra
2009 Toyota Tundra
2010 Toyota Tundra
2011 Toyota Tundra
2012 Toyota Tundra
2013 Toyota Tundra
2014 Toyota Tundra
2015 Toyota Tundra
2016 Toyota Tundra
2017 Toyota Tundra
2018 Toyota Tundra
2019 Toyota Tundra
2020 Toyota Tundra
2021 Toyota Tundra
