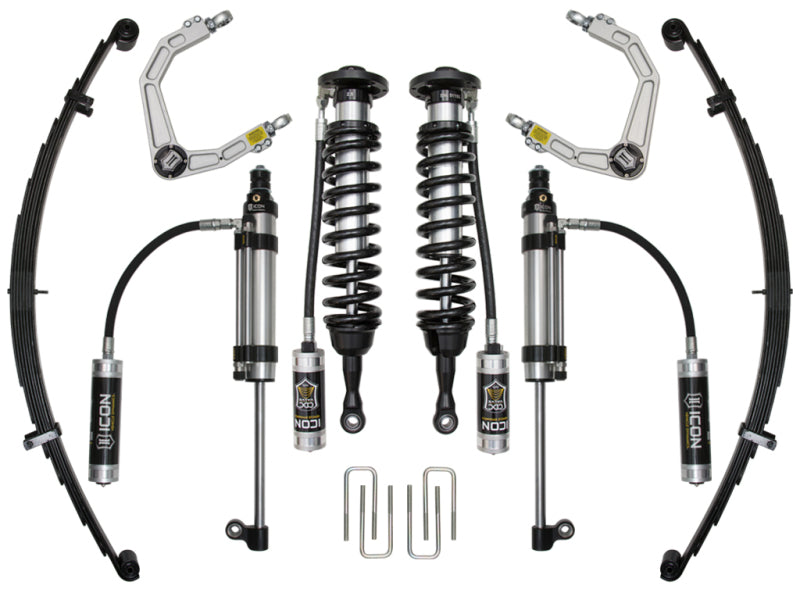

ICON K53030 Stage 10 Suspension System with Billet Upper Control Arms for 2007-2021 Toyota Tundra

The Stage 10 system includes vehicle-specific tuned 2.5 Series Extended Travel coilover shocks equipped with ICON's CDC (Compression Damping Control) Valve. The easy-to-adjust CDC Valve allows for end-user compression changes to provide optimal ride quality across all types of terrain and vehicle cargo configurations. In addition, the coilovers feature a remote reservoir for exceptional cooling properties, ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel, and are height adjustable from 1-3” of lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. Used in conjunction with the included ICON upper control arm, these extended travel coilovers add increased droop travel to the front suspension. To further increase the ride quality of the truck and gain additional droop travel, the ICON RXT multi-rate leaf springs are added to the rear. Designed with an additional leaf (included with kit) that can be exchanged or added to the pack to yield an additional spring rate, this leaf spring is perfect for drivers seeking improved rear ride quality in an “unloaded” vehicle as well as those that are have outfitted their trucks with a significant amount of weight in the form of a bed rack, roof top tent, spare tires, parts, or other additions. To compliment this increase in rear wheel travel, the Stage 10 system includes a unique 2.5 Aluminum Series remote reservoir Omega bypass shock that features a side-mount eyelet that making it shorter in collapsed length, longer at extension, and still fits in the factory mounting location. This shock combines vehicle-specific valving with compression and rebound adjustment giving end-users ultimate control of performance and ride quality while a large ten-inch remote reservoir was also added to aid in heat dissipation and resist shock fade during spirited driving. 2007-2021 TOYOTA TUNDRA 1-3" LIFT STAGE 10 SUSPENSION SYSTEM WITH BILLET UPPER CONTROL ARMS APPLICATION NOTE #87: INSTALLATION OF COMPLETE ICON SYSTEM REQUIRED TO ATTAIN ADVERTISED WHEEL TRAVEL. USE OF ANY OTHER MANUFACTURERS COMPONENTS WILL NOT PROVIDE ADVERTISED WHEEL TRAVEL AND COULD CAUSE UNKNOWN DAMAGE.

• 2.5 Aluminum Series RXT rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• 10” aluminum reservoirs in RXT shocks provide generous oil and nitrogen volume for consistent damping as shock temperature increases
• Unique side-mounted lower eyelet allows for increased rear shock travel while utilizing factory mounting location
• Omega Series two-tube bypass rear shocks allow for 24 settings of compression and rebound damping adjustment
• CDC Valve technology allows for 10 settings of quick and easy compression damping adjustment
• Vehicle-specific tuned front and rear shocks for superior shock damping and control
• Increased wheel travel when used with RXT shock without sacrificing up-travel
• Galvanized leaf separators reduce friction and aid in corrosion resistance
• 3 user-adjustable rear leaf spring rates for unique vehicle configurations
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• FK Rod End bearings for extended longevity and minimal deflection
• Bolt-on system means no cutting or welding necessary for install
• Military wrap front leaf spring eyelets for increased durability
• Leaf spring tip inserts reduce noise and increase ride comfort
• Adjustable coilovers provide 1-3" of front lift height
• 6061 aircraft grade aluminum CNC machined components
• Increased wheel travel and ride quality over stock
• Shocks are fully rebuildable and revalveable

Upgrade your 2007-2021 Toyota Tundra with the ICON K53030 Stage 10 Suspension System, engineered to improve ride quality, suspension control, and wheel travel on and off the road. This complete system combines vehicle-specific 2.5 Series extended-travel front coilovers with ICON CDC Valve technology, billet upper control arms, RXT multi-rate rear leaf springs, and 2.5 Aluminum Series Omega bypass rear shocks. Adjustable front coilovers provide 1–3 inches of lift over stock, allowing fitment of larger, more aggressive wheel and tire combinations while maintaining improved suspension performance.
The front coilovers feature remote reservoirs for increased cooling capacity, corrosion-resistant CAD-plated bodies, 7/8-inch shafts, ICON-engineered Eibach coil springs, and 10-position compression damping adjustment through the CDC Valve. FK rod-end bearings and CNC-machined 6061 aircraft-grade aluminum components provide durability with minimal deflection. The included billet upper control arms help maximize front suspension droop travel when the complete ICON system is installed. Application Note #87: The advertised wheel travel requires installation of the complete ICON system; combining these components with other manufacturers’ parts may reduce performance and could cause unknown damage.
At the rear, ICON RXT multi-rate leaf springs offer three user-adjustable spring-rate configurations to accommodate unloaded vehicles or added equipment such as bed racks, rooftop tents, spare tires, and trail accessories. Galvanized leaf separators, military-wrap front eyelets, and leaf-spring tip inserts help reduce friction, noise, and corrosion. The 2.5 Aluminum Series Omega bypass shocks use one-piece impact-extruded aluminum cylinders, large remote reservoirs, and a side-mounted lower eyelet that increases rear shock travel while retaining the factory mounting location. With 24 compression and rebound adjustment settings, vehicle-specific valving, and fully rebuildable, revalveable shock construction, the ICON K53030 provides precise tuning and dependable performance without cutting or welding.

Features:

• Vehicle-specific Stage 10 suspension system for 2007-2021 Toyota Tundra applications

• Adjustable front coilovers provide 1–3 inches of lift over stock

• CDC Valve technology offers 10 quick compression damping adjustments

• Remote-reservoir front coilovers improve cooling and resist shock fade

• Included billet upper control arms increase front suspension droop travel

• RXT multi-rate rear leaf springs provide three user-adjustable spring-rate configurations

• Omega bypass rear shocks offer 24 compression and rebound adjustment settings

• 10-inch aluminum remote reservoirs provide increased oil and nitrogen volume

• Side-mounted lower shock eyelet increases rear travel in the factory mounting location

• One-piece impact-extruded aluminum shock cylinders provide corrosion resistance

• Galvanized leaf separators reduce friction and improve corrosion resistance

• Military-wrap leaf-spring eyelets enhance durability

• Leaf-spring tip inserts reduce noise and improve ride comfort

• Corrosion-resistant CAD-plated coilover bodies with 7/8-inch shafts

• FK rod-end bearings provide extended service life and minimal deflection

• CNC-machined 6061 aircraft-grade aluminum components

• Bolt-on installation requires no cutting or welding

• Fully rebuildable and revalveable shocks

• Increased wheel travel and ride quality compared with stock suspension

Compatible With
2007 Toyota Tundra
2008 Toyota Tundra
2009 Toyota Tundra
2010 Toyota Tundra
2011 Toyota Tundra
2012 Toyota Tundra
2013 Toyota Tundra
2014 Toyota Tundra
2015 Toyota Tundra
2016 Toyota Tundra
2017 Toyota Tundra
2018 Toyota Tundra
2019 Toyota Tundra
2020 Toyota Tundra
2021 Toyota Tundra
