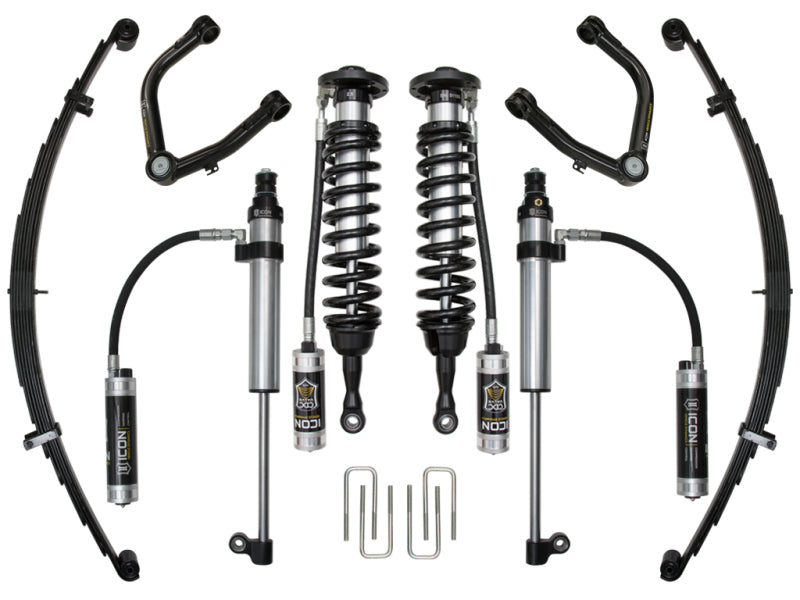

ICON K53029T Stage 9 Suspension System with Tubular Upper Control Arms for 2007-2021 Toyota Tundra, 1-3-Inch Lift

The Stage 9 system includes vehicle-specific tuned 2.5 Series coilover shocks equipped with ICON's CDC (Compression Damping Control) Valve. The easy-to-adjust CDC Valve allows for end-user compression changes to provide optimal ride quality across all types of terrain and vehicle cargo configurations. In addition, the coilovers feature a remote reservoir for exceptional cooling properties, ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel, and are height adjustable from 1-3” allowing the use of larger, more aggressive wheel and tire combinations. Used in conjunction with the included ICON upper control arm, these coilovers increase droop travel to the front suspension. To further increase the ride quality of the truck and gain additional droop travel, the ICON RXT multi-rate leaf springs are added to the rear. Designed with an additional leaf (included with kit) that can be exchanged or added to the pack to yield additional spring rate, this leaf spring is perfect for drivers seeking improved rear ride quality in an “unloaded” vehicle as well as those that are have outfitted their trucks with a significant amount of weight in the form of a bed rack, roof top tent, spare tires, parts, or other additions. To compliment this increase in rear wheel travel the Stage 9 system includes a unique 2.5 Aluminum Series CDC remote reservoir shock that features a side-mount eyelet making it shorter in collapsed length, longer at extension, and still fit in the factory mounting location. This shock also features ICON's CDC technology for simple compression adjustability, and a large ten-inch remote reservoir was added to aid in heat dissipation and resist shock fade during spirited driving. 2007-2021 TOYOTA TUNDRA 1-3" LIFT STAGE 9 SUSPENSION SYSTEM WITH TUBULAR UPPER CONTROL ARMS APPLICATION NOTE #87: INSTALLATION OF COMPLETE ICON SYSTEM REQUIRED TO ATTAIN ADVERTISED WHEEL TRAVEL. USE OF ANY OTHER MANUFACTURERS COMPONENTS WILL NOT PROVIDE ADVERTISED WHEEL TRAVEL AND COULD CAUSE UNKNOWN DAMAGE.

• 10” aluminum reservoirs in RXT shocks provide generous oil and nitrogen volume for consistent damping as shock temperature increases
• Unique side-mounted lower eyelet allows for increased rear shock travel while utilizing factory mounting location
• 2.5 Aluminum Series remote reservoir RXT rear shocks with impact extruded aluminum cylinders and 7/8" shafts
• CDC Valve technology allows for 10 settings of quick and easy compression damping adjustment
• Vehicle-specific tuned front and rear shocks for superior shock damping and control
• Increased wheel travel when used with RXT shock without sacrificing up-travel
• Galvanized leaf separators reduce friction and aid in corrosion resistance
• 3 user-adjustable rear leaf spring rates for unique vehicle configurations
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• FK Rod End bearings for extended longevity and minimal deflection
• Bolt-on system means no cutting or welding necessary for install
• Military wrap front leaf spring eyelets for increased durability
• Leaf spring tip inserts reduce noise and increase ride comfort
• Adjustable coilovers provide 1-3" of front lift height
• 6061 aircraft grade aluminum CNC machined components
• Increased wheel travel and ride quality over stock
• Shocks are fully rebuildable and revalveable

Upgrade your 2007-2021 Toyota Tundra with the ICON K53029T Stage 9 suspension system, engineered to improve ride quality, wheel travel, damping control, and off-road capability. This complete bolt-on system includes vehicle-specific tuned 2.5 Series front coilover shocks with remote reservoirs, ICON CDC (Compression Damping Control) Valve technology, tubular upper control arms, RXT multi-rate rear leaf springs, and 2.5 Aluminum Series rear shocks. Adjustable front coilovers provide 1-3 inches of lift, supporting larger and more aggressive wheel and tire combinations without sacrificing suspension performance.
The front coilovers feature ICON-engineered Eibach coil springs for responsive handling through the full range of travel, corrosion-resistant shock bodies, 7/8-inch shafts, and FK rod end bearings for long service life with minimal deflection. The CDC Valve provides 10 quick and easy compression damping settings, allowing drivers to fine-tune ride quality for different terrain and cargo configurations. Rear RXT leaf springs include an additional adjustable leaf that can be exchanged or added to provide one of three spring rates, making the system adaptable for unloaded trucks or vehicles carrying bed racks, rooftop tents, spare tires, tools, and other equipment.
Rear damping is handled by ICON 2.5 Aluminum Series CDC remote reservoir shocks with unique side-mounted lower eyelets. This design increases rear suspension travel while retaining the factory mounting location. The 10-inch aluminum reservoirs provide additional oil and nitrogen volume to promote consistent damping as temperatures rise, while impact-extruded aluminum cylinders and fully rebuildable, revalveable construction support long-term serviceability. Galvanized leaf separators, military-wrap front leaf spring eyelets, leaf spring tip inserts, and 6061 aircraft-grade aluminum CNC-machined components add durability, reduce friction and noise, and improve comfort. Complete ICON components must be installed together to achieve the advertised wheel travel; mixing components from other manufacturers may alter performance or cause damage.

Features:

• 10-inch aluminum reservoirs provide additional oil and nitrogen volume for consistent damping as shock temperatures increase

• Side-mounted lower eyelet increases rear shock travel while using the factory mounting location

• 2.5 Aluminum Series remote reservoir RXT rear shocks feature impact-extruded aluminum cylinders and 7/8-inch shafts

• CDC Valve technology provides 10 settings for quick and easy compression damping adjustment

• Vehicle-specific tuned front and rear shocks deliver improved damping and suspension control

• RXT shocks increase wheel travel without sacrificing suspension up-travel

• Galvanized leaf separators reduce friction and help resist corrosion

• Three user-adjustable rear leaf spring rates accommodate different vehicle configurations

• Corrosion-resistant CAD-plated coilover bodies feature 7/8-inch shafts

• FK rod end bearings provide extended longevity and minimal deflection

• Bolt-on installation requires no cutting or welding

• Military-wrap front leaf spring eyelets improve durability

• Leaf spring tip inserts reduce noise and improve ride comfort

• Adjustable coilovers provide 1-3 inches of front lift

• 6061 aircraft-grade aluminum CNC-machined components enhance strength and precision

• Improves wheel travel and ride quality compared with the factory suspension

• Shocks are fully rebuildable and revalveable

Compatible With
2007 Toyota Tundra
2008 Toyota Tundra
2009 Toyota Tundra
2010 Toyota Tundra
2011 Toyota Tundra
2012 Toyota Tundra
2013 Toyota Tundra
2014 Toyota Tundra
2015 Toyota Tundra
2016 Toyota Tundra
2017 Toyota Tundra
2018 Toyota Tundra
2019 Toyota Tundra
2020 Toyota Tundra
2021 Toyota Tundra
