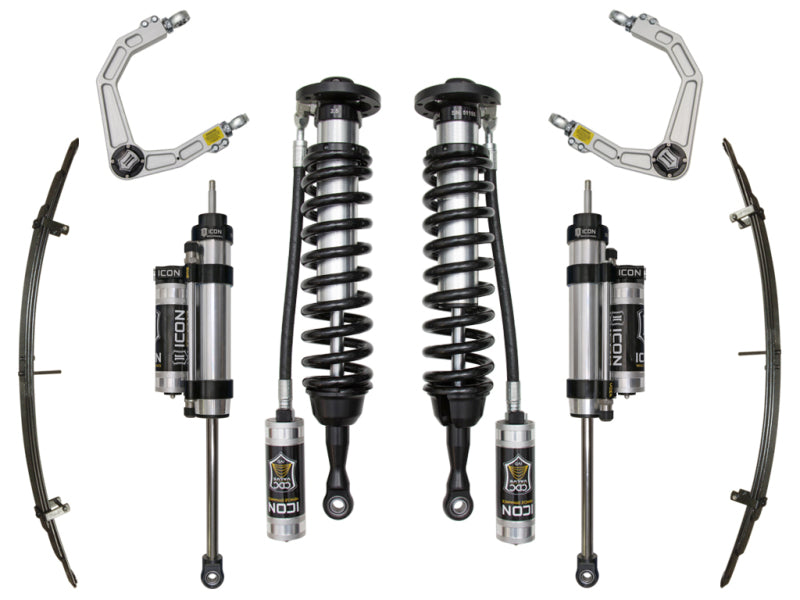

ICON K53027 Stage 7 Suspension System with Billet UCA for 2007-2021 Toyota Tundra, 1-3-Inch Lift

This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint. 2007-2021 TOYOTA TUNDRA 1-3" LIFT STAGE 7 SUSPENSION SYSTEM WITH BILLET UCA APPLICATION NOTE #111: BUMP STOP SPACER KIT AVAILABLE THAT CAN BE INSTALLED TO INCREASE THREADS SHOWING BEYOND MAX RECOMMENDATION.

• 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• Increased wheel travel and ride quality over stock with no change in towing capacity
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• 100% Bolt-on system - no cutting, or welding necessary for install
• FK rod end bearings for extended longevity and minimal deflection
• Rear expansion pack for 1.5” of lift and better ride quality
• 6061 Aircraft grade aluminum CNC machined components
• CDC tuned front shocks for a custom tuneable ride
• Adjustable coilovers from 1-3" of lift height

Upgrade your 2007-2021 Toyota Tundra with the ICON K53027 Stage 7 Suspension System, engineered to improve wheel travel, ride quality, and suspension performance while maintaining the truck’s towing capacity. This complete system includes billet upper control arms equipped with ICON’s patented Delta Joint, combining the articulation of a traditional uniball with the durability and weather protection of a heavy-duty ball joint. The zinc-plated housing resists corrosion, while the grease seal helps protect internal components from contamination. Metal-on-metal construction and a greaseable design promote long service life and quiet operation.
The system includes adjustable coilovers capable of providing 1-3 inches of lift height, along with CDC-tuned front shocks for a customizable ride. Corrosion-resistant CAD-plated shock bodies and 7/8-inch shafts provide dependable performance in demanding driving conditions. The rear expansion pack adds 1.5 inches of lift and helps improve rear ride quality, while 2.5 Aluminum Series rear shocks use one-piece impact-extruded aluminum cylinders for excellent corrosion resistance and a consistent finish.
Designed as a 100% bolt-on installation, the ICON K53027 requires no cutting or welding. FK rod end bearings help minimize deflection and support extended component longevity, while CNC-machined 6061 aircraft-grade aluminum components deliver strength and precision. Application Note 111 indicates that a bump stop spacer kit is available for increasing the amount of thread showing beyond the maximum recommendation. Verify vehicle configuration and lift requirements before installation.

Features:

• Delta Joint upper control arms combine high-angle articulation with sealed, greaseable durability

• Adjustable coilovers provide 1-3 inches of lift height

• CDC-tuned front shocks support a custom-tunable ride

• 2.5 Aluminum Series rear shocks feature impact-extruded aluminum cylinders for corrosion resistance

• Rear expansion pack provides 1.5 inches of lift and improved ride quality

• Increases wheel travel and ride quality without changing towing capacity

• Corrosion-resistant CAD-plated coilover shock bodies with 7/8-inch shafts

• 100% bolt-on installation requires no cutting or welding

• FK rod end bearings provide extended longevity and minimal deflection

• CNC-machined 6061 aircraft-grade aluminum components

Compatible With
2007 Toyota Tundra
2008 Toyota Tundra
2009 Toyota Tundra
2010 Toyota Tundra
2011 Toyota Tundra
2012 Toyota Tundra
2013 Toyota Tundra
2014 Toyota Tundra
2015 Toyota Tundra
2016 Toyota Tundra
2017 Toyota Tundra
2018 Toyota Tundra
2019 Toyota Tundra
2020 Toyota Tundra
2021 Toyota Tundra
