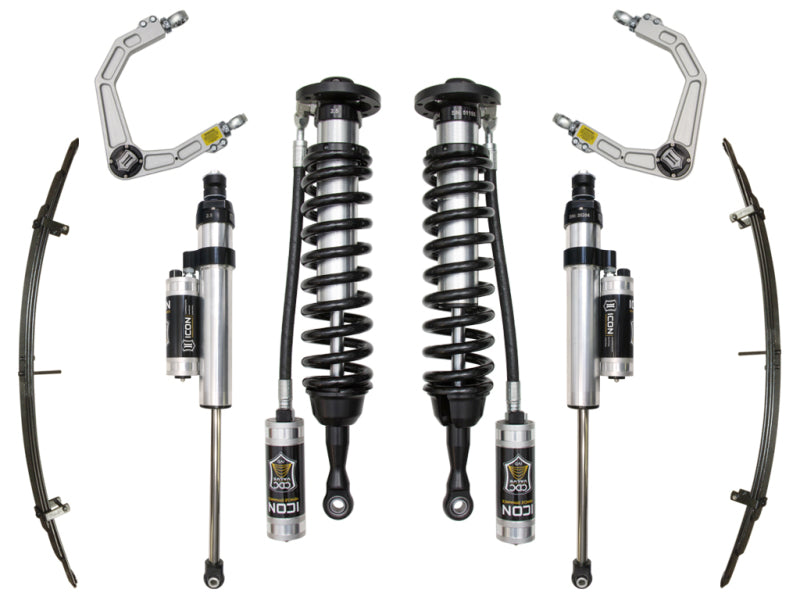

ICON K53026 Stage 6 Suspension System with Billet UCA for 2007-2021 Toyota Tundra

This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greasable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint. 2007-2021 TOYOTA TUNDRA 1-3" LIFT STAGE 6 SUSPENSION SYSTEM WITH BILLET UCA APPLICATION NOTE #111: BUMP STOP SPACER KIT AVAILABLE THAT CAN BE INSTALLED TO INCREASE THREADS SHOWING BEYOND MAX RECOMMENDATION.

• 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• Increased wheel travel and ride quality over stock with no change in towing capacity
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• FK rod end bearings for extended longevity and minimal deflection
• Rear expansion pack for 1.5” of lift and better ride quality
• CDC tuned front and rear shocks for a custom tuneable ride
• 6061 Aircraft grade aluminum CNC machined components
• Adjustable coilovers from 1-3" of lift height

Upgrade your 2007-2021 Toyota Tundra with the ICON K53026 Stage 6 Suspension System, engineered for trucks running 1 to 3 inches of lift. This complete suspension system includes ICON upper control arms with patented Delta Joints, adjustable coilovers, CDC-tuned front and rear shocks, and a rear expansion pack designed to provide 1.5 inches of lift and improved ride quality. The system increases wheel travel and enhances on-road and off-road performance without changing the truck’s towing capacity.
ICON Delta Joints combine the articulation of a traditional uniball with the durability and sealing of a heavy-duty ball joint. Their zinc-plated housings provide corrosion resistance, while grease seals help protect the internal components from dirt and moisture. Metal-on-metal construction and a greasable design support long service life and quiet operation. FK rod end bearings further reduce deflection and contribute to precise suspension performance.
The ICON 2.5 Aluminum Series rear shocks use one-piece impact-extruded aluminum cylinders for consistent finish and excellent corrosion resistance. Front coilover shock bodies feature corrosion-resistant CAD plating and 7/8-inch shafts, while adjustable coilovers allow the lift height to be tuned from 1 to 3 inches. CNC-machined components are manufactured from 6061 aircraft-grade aluminum for strength and durability. This is a 100% bolt-on system that requires no drilling, cutting, or welding. A bump stop spacer kit is available separately for applications requiring increased threads beyond the maximum recommendation.

Features:

• Designed for 2007-2021 Toyota Tundra models with 1 to 3 inches of lift

• Includes ICON billet upper control arms with patented Delta Joints

• Delta Joints feature zinc-plated housings, grease seals, metal-on-metal construction, and a greasable design

• 2.5 Aluminum Series rear shocks use one-piece impact-extruded aluminum cylinders for corrosion resistance

• Increases wheel travel and ride quality without changing towing capacity

• 100% bolt-on installation requires no drilling, cutting, or welding

• Corrosion-resistant CAD-plated coilover shock bodies with 7/8-inch shafts

• FK rod end bearings provide extended longevity and minimal deflection

• Rear expansion pack provides 1.5 inches of lift and improved ride quality

• CDC-tuned front and rear shocks provide a custom-tunable ride

• 6061 aircraft-grade aluminum CNC-machined components

• Adjustable coilovers support 1 to 3 inches of lift height

Compatible With
2007 Toyota Tundra
2008 Toyota Tundra
2009 Toyota Tundra
2010 Toyota Tundra
2011 Toyota Tundra
2012 Toyota Tundra
2013 Toyota Tundra
2014 Toyota Tundra
2015 Toyota Tundra
2016 Toyota Tundra
2017 Toyota Tundra
2018 Toyota Tundra
2019 Toyota Tundra
2020 Toyota Tundra
2021 Toyota Tundra
