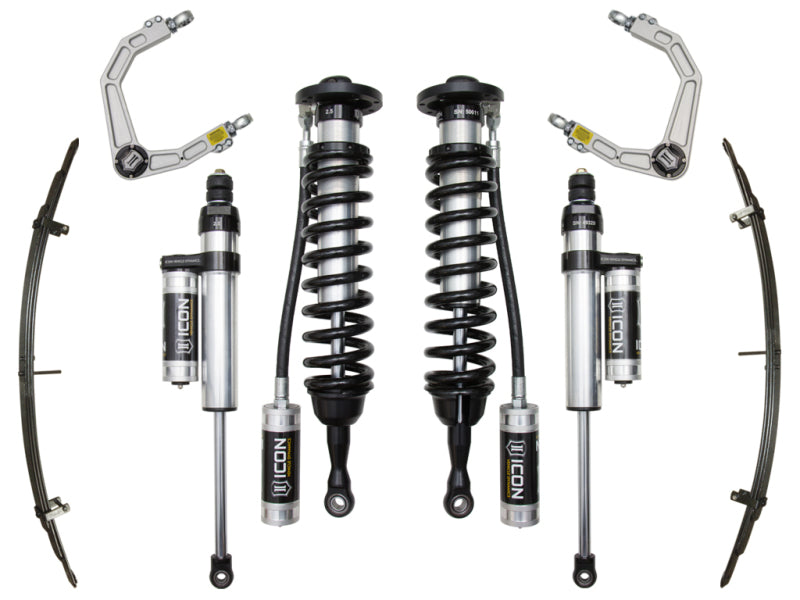

ICON K53025 Stage 5 Suspension System with Billet UCA for 2007-2021 Toyota Tundra, 1-3 Inch Lift

$4,991.85

Skip to product information

Regular price $4,991.85
Sale price $4,991.85 Regular price $4,991.85
Shipping calculated at checkout.
Low stock
This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint. 2007-2021 TOYOTA TUNDRA 1-3" LIFT STAGE 5 SUSPENSION SYSTEM WITH BILLET UCA APPLICATION NOTE #111: BUMP STOP SPACER KIT AVAILABLE THAT CAN BE INSTALLED TO INCREASE THREADS SHOWING BEYOND MAX RECOMMENDATION.
  • 2.5 Aluminium Series piggyback rear shocks with impact extruded aluminum bodies an 7/8" polished chrome shafts
  • Increased wheel travel and ride quality over stock with no change in towing capacity
  • Vehicle specific tuned front and rear shocks for superior shock damping and control
  • 100% Bolt-on system - no cutting, or welding necessary for install
  • Corrosion resistant CAD plated coilover shock body with 7/8" shaft
  • FK rod end bearings for extended longevity and minimal deflection
  • Rear expansion pack for 1.5" of lift and better ride quality
  • 6061 Aircraft grade aluminum CNC machined components
  • Adjustable coilovers from 1-3" of lift height

Upgrade your 2007-2021 Toyota Tundra with the ICON K53025 Stage 5 Suspension System, engineered to improve wheel travel, ride quality, and suspension control while retaining the truck’s towing capacity. This complete system includes adjustable front coilovers, vehicle-specific tuned shocks, rear expansion components, and billet upper control arms equipped with ICON’s patented Delta Joint. Designed for trucks running 1-3 inches of lift, it provides a balanced combination of on-road comfort and off-road capability.
The Delta Joint combines the articulation of a traditional uniball with the durability and weather protection of a heavy-duty ball joint. Its zinc-plated housing helps resist corrosion, while the grease seal protects the internal components from dirt and moisture. Metal-on-metal construction and a greaseable design support long service life and quiet operation, making the joint well suited for daily-driven trucks. FK rod end bearings further help minimize deflection and provide dependable performance under demanding suspension loads.
The ICON 2.5 Aluminum Series front and rear shocks feature impact-extruded aluminum bodies, corrosion-resistant coilover components, and polished chrome shafts for durable performance. The adjustable coilovers allow the lift height to be tailored from 1-3 inches, while the rear expansion pack adds 1.5 inches of lift and helps improve ride quality. Constructed with CNC-machined 6061 aircraft-grade aluminum components, this 100% bolt-on system installs without cutting or welding. A bump stop spacer kit may be available to increase the amount of thread showing beyond the maximum recommended setting.

Features:

  • ICON K53025 Stage 5 suspension system designed for 2007-2021 Toyota Tundra models
  • Adjustable front coilovers provide 1-3 inches of lift height
  • Billet upper control arms include ICON Delta Joint high-angle ball joints
  • Zinc-plated Delta Joint housing helps resist corrosion
  • Greaseable metal-on-metal Delta Joint design supports quiet, durable operation
  • 2.5 Aluminum Series piggyback rear shocks feature impact-extruded aluminum bodies
  • Polished chrome shock shafts provide durable, corrosion-resistant performance
  • Vehicle-specific front and rear shock tuning improves damping and suspension control
  • Rear expansion pack provides 1.5 inches of lift and enhanced ride quality
  • FK rod end bearings help extend service life and minimize deflection
  • CNC-machined 6061 aircraft-grade aluminum components
  • 100% bolt-on installation requires no cutting or welding
  • Maintains the vehicle’s towing capacity

Compatible With
2007 Toyota Tundra
2008 Toyota Tundra
2009 Toyota Tundra
2010 Toyota Tundra
2011 Toyota Tundra
2012 Toyota Tundra
2013 Toyota Tundra
2014 Toyota Tundra
2015 Toyota Tundra
2016 Toyota Tundra
2017 Toyota Tundra
2018 Toyota Tundra
2019 Toyota Tundra
2020 Toyota Tundra
2021 Toyota Tundra
