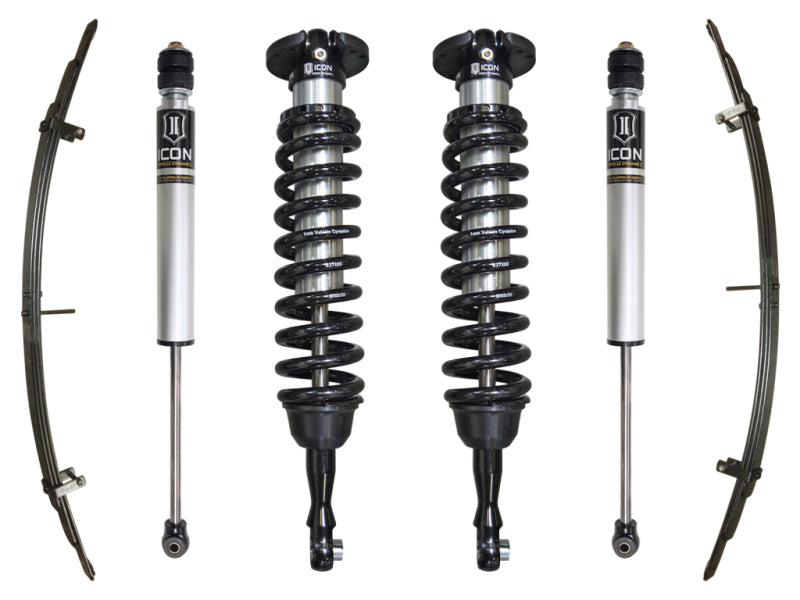

ICON K53022 Stage 2 Suspension System for 2007-2021 Toyota Tundra, 1-3-Inch Lift

ICON Vehicle Dynamics Toyota Tundra Stage 2 suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 2 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties. These coilovers are also height adjustable from 1-3” of lift allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 VS Aluminum Series monotube rear shocks utilize a vehicle-specific valving and then when combined with ICON's expansion pack give you the performance of the truck from front to rear. The ICON Vehicle Dynamics 2007-2021 Toyota Tundra Stage 2 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt. 2007-2021 TOYOTA TUNDRA 1-3" LIFT STAGE 2 SUSPENSION SYSTEM APPLICATION NOTE #24: Factory UCA's Will Not Align Properly Past 2.5” Of Lift. Above 2.5” Of Lift An Aftermarket UCA Is Recommended.

• Increased wheel travel and ride quality over stock with no change in towing capacity
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• FK rod end bearings for extended longevity and minimal deflection
• 2.0 VS Aluminum Series with 5/8" polished nitro steel shaft
• 1.5" lift Rear Exspansion pack for better ride quaility
• 6061 Aircraft grade aluminum CNC machined components
• Adjustable coilovers from 1-3" of lift height

The ICON Vehicle Dynamics K53022 Stage 2 suspension system is engineered for 2007-2021 Toyota Tundra models seeking improved wheel travel, damping performance, and ride control on the street and off-road. This vehicle-specific system combines height-adjustable front coilovers with tuned rear shocks and an expansion pack to deliver balanced performance from front to rear without reducing towing capacity. The adjustable coilovers provide 1-3 inches of lift, helping accommodate larger and more aggressive wheel and tire combinations while allowing the ride height to be tailored to the vehicle and intended use.
The front coilovers feature vehicle-specific tuning, internal reservoirs for improved cooling, corrosion-resistant CAD-plated shock bodies, 7/8-inch shafts, and FK rod end bearings designed for long-term durability with minimal deflection. At the rear, ICON 2.0 VS Aluminum Series monotube shocks use a polished 5/8-inch nitro steel shaft and vehicle-specific valving for consistent damping and improved control. The included 1.5-inch rear expansion pack further enhances rear suspension performance and ride quality over varying terrain.
Installation is straightforward with a 100% bolt-on design that requires no drilling, cutting, or welding. CNC-machined components made from 6061 aircraft-grade aluminum provide strength while maintaining a refined fit and finish. Application Note #24: Factory upper control arms may not align properly beyond 2.5 inches of lift. An aftermarket upper control arm is recommended when using more than 2.5 inches of lift. Confirm vehicle configuration and application details before installation to ensure proper fitment.

Features:

• Increased wheel travel and improved ride quality over stock without changing towing capacity

• Vehicle-specific tuned front and rear shocks for enhanced damping and vehicle control

• 100% bolt-on installation with no drilling, cutting, or welding required

• Height-adjustable front coilovers provide 1-3 inches of lift

• Internal-reservoir front coilovers improve shock cooling during demanding use

• Corrosion-resistant CAD-plated coilover bodies with 7/8-inch shafts

• FK rod end bearings provide extended service life and reduced deflection

• ICON 2.0 VS Aluminum Series rear monotube shocks with polished 5/8-inch nitro steel shafts

• 1.5-inch rear expansion pack improves rear suspension ride quality

• 6061 aircraft-grade aluminum CNC-machined components

• Aftermarket upper control arms recommended when using more than 2.5 inches of lift

Compatible With
2007 Toyota Tundra
2008 Toyota Tundra
2009 Toyota Tundra
2010 Toyota Tundra
2011 Toyota Tundra
2012 Toyota Tundra
2013 Toyota Tundra
2014 Toyota Tundra
2015 Toyota Tundra
2016 Toyota Tundra
2017 Toyota Tundra
2018 Toyota Tundra
2019 Toyota Tundra
2020 Toyota Tundra
2021 Toyota Tundra
