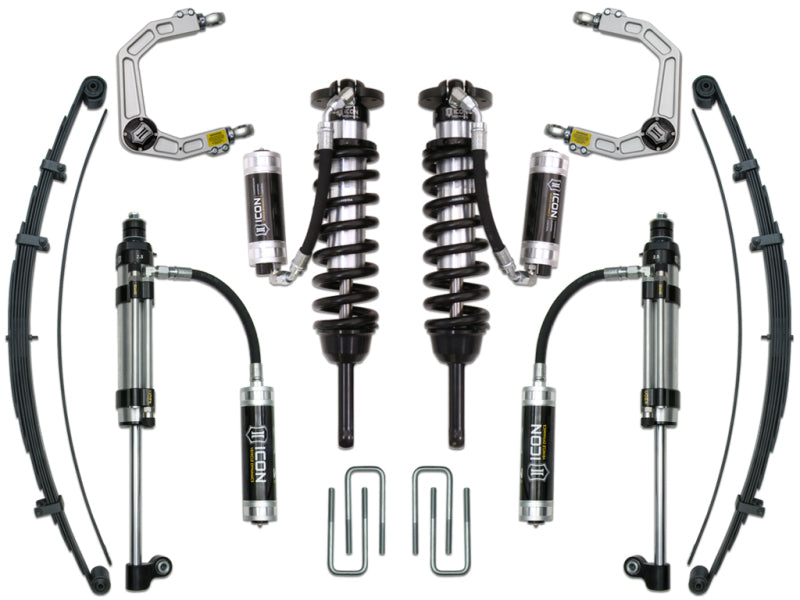

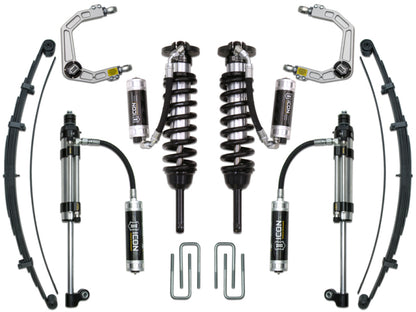

ICON K53010 Stage 10 Suspension System with Billet UCAs for Toyota Tacoma

The Stage 10 system includes vehicle-specific tuned 2.5 Series Extended Travel coilover shocks featuring a remote reservoir with CDCV for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. The included ICON CDC Valves are externally adjustable valves that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. These coilovers are also height adjustable from 0-3.5” for 2005-2015 models or 0-2.75" for 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. Used in conjunction with the included ICON upper control arm, these extended travel coilovers add increased droop travel to the front suspension. The included ICON billet aluminum upper control arm kit is designed to improve the overall performance of the Toyota Tacoma with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. To increase the ride quality of the truck and gain additional droop travel, the ICON RXT multi-rate leaf springs are added to the rear. Designed with an additional leaf (included with kit) that can be exchanged or added to the pack to yield an additional 10-20% spring rate, this leaf spring is perfect for drivers seeking improved rear ride quality in an “unloaded” vehicle as well as those that are have outfitted their trucks with a significant amount of weight in the form of a bed rack, roof top tent, spare tires, parts, or other additions. ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road. APPLICATION NOTE #87: Installation of complete ICON system required to attain advertised wheel travel. Use of any other manufacturers components will not provide advertised wheel travel and could cause unknown damage.

• ICON RXT Rear Shock with unique side-mounted lower eyelet allows for increased travel (up to 20%) while utilizing factory mounting location
• 2.5 Aluminum Series RXT Omega Bypass rear shocks with compression and rebound adjustability provide the ultimate in ride control
• 2.5 Series front coilovers with remote reservoirs for improved shock cooling and consistent performance under hard use
• Adjustable coilovers provide up to 3.5" of front lift height on 2005-2015 models and up to 2.75" on 2016-2023 models
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
• Front coilovers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
• Multi-Rate Leaf Springs with 3 user-adjustable spring rates for unique vehicle configurations
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• FK Rod End bearings for extended longevity and minimal deflection
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint
• Extended Travel coilovers offer maximum wheel travel
• 6061 aircraft grade aluminum CNC machined components
• Increased wheel travel and ride quality over stock

Upgrade your Toyota Tacoma with the ICON K53010 Stage 10 Suspension System, engineered for drivers who demand improved wheel travel, damping control, and ride quality on and off the road. This complete system combines vehicle-specific 2.5 Series Extended Travel front coilovers, remote reservoirs with CDC Valves, billet aluminum upper control arms, ICON RXT multi-rate leaf springs, and adjustable rear shocks. The system is designed for 2005-2015 Tacoma models with up to 3.5 inches of front lift and 2016-2023 models with up to 2.75 inches of front lift, providing clearance for larger wheel and tire combinations.
The front coilovers use ICON-engineered coil springs and externally adjustable CDC Valves with 10 compression damping settings, allowing the suspension to be tuned from soft to firm for changing terrain and vehicle configurations. Remote reservoirs promote improved shock cooling during demanding use, while corrosion-resistant CAD-plated bodies, 7/8-inch shafts, FK rod ends, and 6061 aircraft-grade aluminum components support long-term durability. The included billet aluminum upper control arms correct front suspension geometry, improve component clearance, and provide on-vehicle caster and camber adjustment through ICON’s patented Delta Joint design.

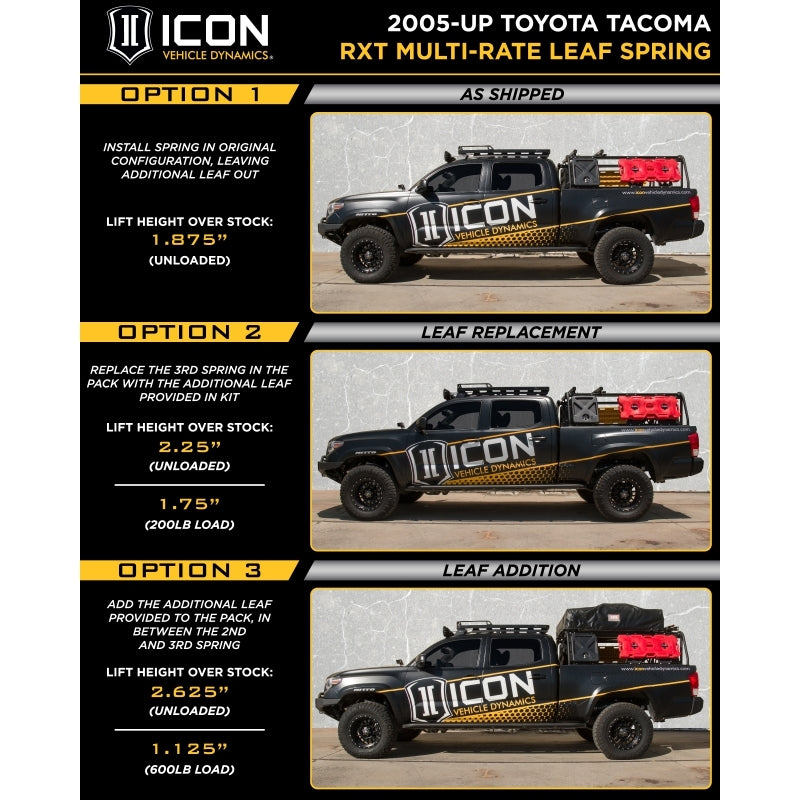

At the rear, ICON RXT multi-rate leaf springs improve ride quality and add increased droop travel while offering three user-adjustable spring rates. The included additional leaf can be exchanged or added to the pack to accommodate an unloaded truck or added equipment such as a bed rack, rooftop tent, spare tire, or other cargo. RXT Omega Bypass rear shocks feature compression and rebound adjustability, and their side-mounted lower eyelets help increase travel while retaining factory mounting locations. Installation of the complete ICON system is required to achieve the advertised wheel travel; combining components from other manufacturers may affect performance and could cause damage.

Features:

• Vehicle-specific ICON Stage 10 suspension system for Toyota Tacoma applications

• Extended-travel 2.5 Series front coilovers with remote reservoirs and improved cooling

• 10-position CDC compression damping adjustment from soft to firm

• Up to 3.5 inches of front lift on 2005-2015 models

• Up to 2.75 inches of front lift on 2016-2023 models

• Billet aluminum upper control arms with improved geometry and on-vehicle caster and camber adjustment

• Patented ICON Delta Joint for strength, durability, and reduced deflection

• 2.5 Aluminum Series RXT Omega Bypass rear shocks with compression and rebound adjustment

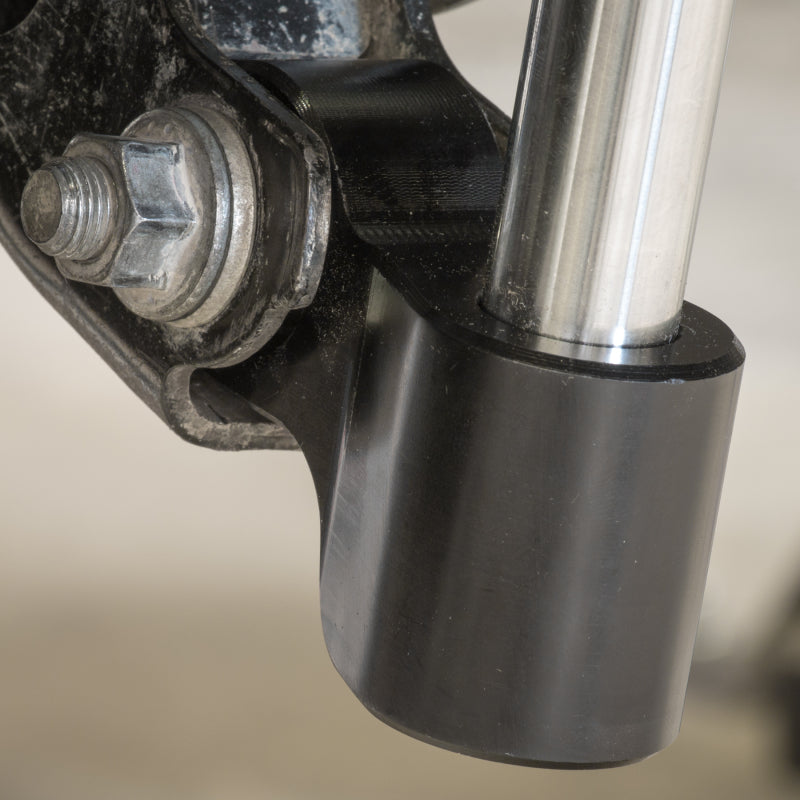

• Side-mounted rear shock lower eyelet for increased travel using factory mounting locations

• RXT multi-rate leaf springs with three user-adjustable spring rates

• Additional leaf supports changing vehicle loads and equipment configurations

• Corrosion-resistant CAD-plated shock bodies with 7/8-inch shafts

• FK rod end bearings for extended longevity and minimal deflection

• 6061 aircraft-grade aluminum CNC-machined components

• ICON 1K tested for off-road performance, strength, and durability

• Complete ICON system installation required to achieve advertised wheel travel

Compatible With
2005 Toyota Tacoma
2006 Toyota Tacoma
2007 Toyota Tacoma
2008 Toyota Tacoma
2009 Toyota Tacoma
2010 Toyota Tacoma
2011 Toyota Tacoma
2012 Toyota Tacoma
2013 Toyota Tacoma
2014 Toyota Tacoma
2015 Toyota Tacoma
2016 Toyota Tacoma
2017 Toyota Tacoma
2018 Toyota Tacoma
2019 Toyota Tacoma
2020 Toyota Tacoma
2021 Toyota Tacoma
2022 Toyota Tacoma
2023 Toyota Tacoma
