ICON K53009 Stage 9 Suspension System with Billet Upper Control Arms for Toyota Tacoma

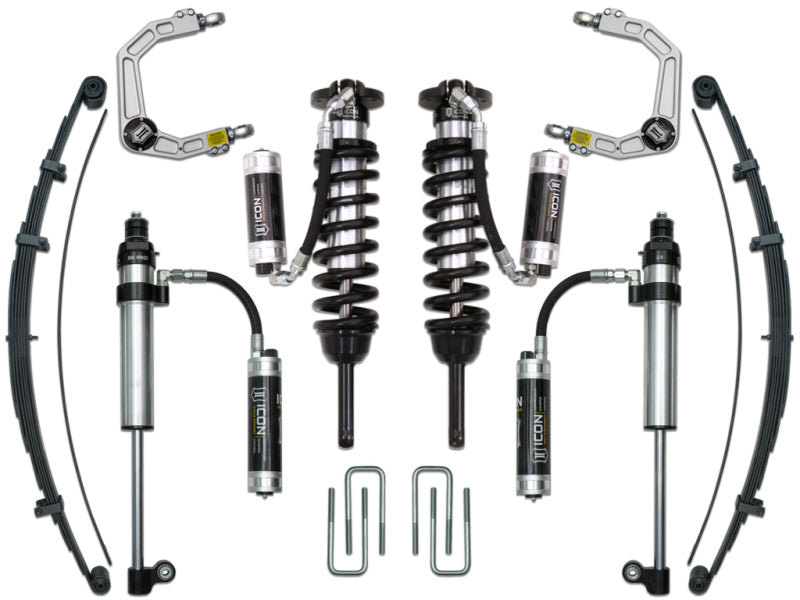

The Stage 9 system includes vehicle-specific tuned 2.5 Series Extended Travel coilover shocks featuring a remote reservoir with CDCV for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3.5” for 2005-2015 models or 0-2.75" for 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. Used in conjunction with the included ICON upper control arm, these extended travel coilovers add increased droop travel to the front suspension. The included ICON billet aluminum upper control arm kit is designed to improve the overall performance of the Toyota Tacoma with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. To increase the ride quality of the truck and gain additional droop travel, the ICON RXT multi-rate leaf springs are added to the rear. Designed with an additional leaf (included with kit) that can be exchanged or added to the pack to yield an additional 10-20% spring rate, this leaf spring is perfect for drivers seeking improved rear ride quality in an “unloaded” vehicle as well as those that are have outfitted their trucks with a significant amount of weight in the form of a bed rack, roof top tent, spare tires, parts, or other additions. To compliment this increase in rear wheel travel the Stage 9 system includes a unique 2.5 Aluminum Series remote reservoir shock with CDCV that features a side-mount eyelet that making it shorter in collapsed length, longer at extension, and still fits in the factory mounting location. A large ten-inch remote reservoir was added to aid in heat dissipation and resist shock fade during spirited driving. The included ICON CDC Valves are externally adjustable valves that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road. APPLICATION NOTE #87: Installation of complete ICON system required to attain advertised wheel travel. Use of any other manufacturers components will not provide advertised wheel travel and could cause unknown damage.

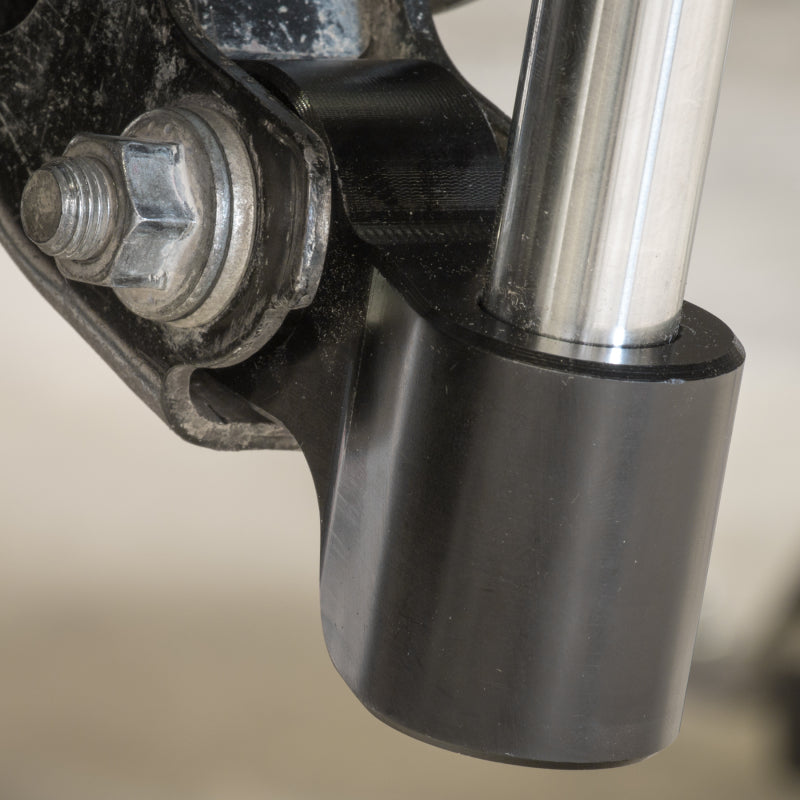

• ICON RXT CDCV Rear Shock with unique side-mounted lower eyelet allows for increased travel (up to 20%) while utilizing factory mounting location
• ICON RXT Rear Shock with unique side-mounted lower eyelet allows for increased travel (up to 20%) while utilizing factory mounting location
• 2.5 Aluminum Series remote reservoir RXT rear shocks feature corrosion resistant anodized aluminum shock bodies with 7/8" shafts
• 2.5 Series front coilovers with remote reservoirs for improved shock cooling and consistent performance under hard use
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• Adjustable coilovers provide up to 3.5" of front lift height on 2005-2015 models and up to 2.75" on 2016-2023 models
• All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
• Multi-Rate Leaf Springs with 3 user-adjustable spring rates for unique vehicle configurations
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• FK Rod End bearings for extended longevity and minimal deflection
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint
• Extended Travel coilovers offer maximum wheel travel
• 6061 aircraft grade aluminum CNC machined components
• Increased wheel travel and ride quality over stock

Upgrade your Toyota Tacoma with the ICON K53009 Stage 9 Suspension System, engineered for drivers who demand improved wheel travel, damping control, and ride quality on and off the road. This vehicle-specific system combines 2.5 Series extended-travel front coilovers, billet aluminum upper control arms, multi-rate rear leaf springs, and remote-reservoir rear shocks for a balanced suspension package. Front coilovers provide adjustable lift from 0 to 3.5 inches on 2005–2015 Tacoma models and from 0 to 2.75 inches on 2016–2023 models, helping accommodate larger wheel and tire combinations while increasing front suspension droop travel.
The included ICON billet aluminum upper control arms improve front-end geometry, provide increased on-vehicle caster and camber adjustment, and enhance clearance around suspension components. Each UCA uses the patented Delta Joint and FK rod-end bearings for durability, reduced deflection, and long service life. ICON-engineered coil springs and vehicle-specific shock tuning help deliver controlled suspension response throughout the available travel. The front remote reservoirs improve cooling performance during demanding driving, while corrosion-resistant shock bodies and 7/8-inch shafts support reliable operation in challenging conditions.

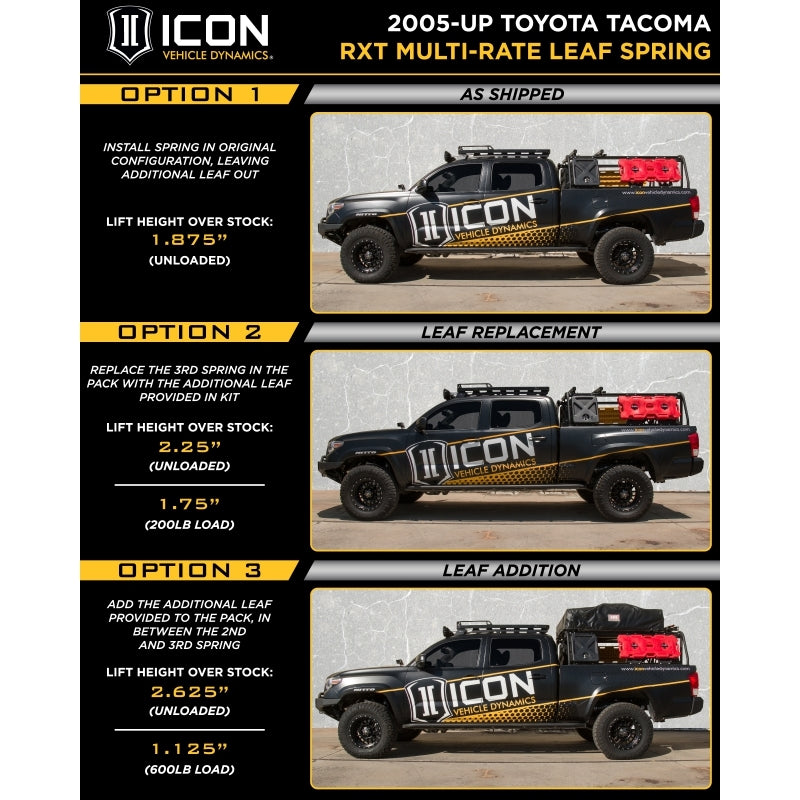

At the rear, ICON RXT multi-rate leaf springs improve ride quality and provide three user-adjustable spring-rate configurations. The included additional leaf can be exchanged or added to increase spring rate by approximately 10–20 percent, making the system adaptable to unloaded trucks or Tacoma builds carrying added equipment such as bed racks, rooftop tents, spare tires, and recovery gear. RXT rear shocks feature a side-mounted lower eyelet that increases extension and travel while retaining the factory mounting location. Remote reservoirs and externally adjustable ICON CDC Valves provide 10 compression-damping settings, allowing the driver to tailor ride and handling from softer to firmer control. Complete ICON system installation is required to achieve the advertised wheel travel; mixing components from other manufacturers may reduce performance or cause damage.

Features:

• ICON RXT CDCV rear shocks with side-mounted lower eyelets for increased travel while retaining factory mounting locations

• 2.5 Aluminum Series remote-reservoir rear shocks with corrosion-resistant anodized aluminum bodies and 7/8-inch shafts

• 2.5 Series extended-travel front coilovers with remote reservoirs for improved cooling and consistent performance

• Billet aluminum upper control arms with on-vehicle caster and camber adjustment

• Adjustable front lift from 0 to 3.5 inches on 2005–2015 models and 0 to 2.75 inches on 2016–2023 models

• ICON CDC Valves with 10 externally adjustable compression-damping settings

• Multi-rate leaf springs with three user-adjustable spring-rate configurations

• Vehicle-specific front and rear shock tuning for controlled damping and improved drivability

• Corrosion-resistant coilover shock bodies with durable 7/8-inch shafts

• FK rod-end bearings designed for extended service life and minimal deflection

• Patented Delta Joint upper control arm design

• Extended-travel coilovers for increased front wheel travel

• 6061 aircraft-grade aluminum CNC-machined components

• Improved wheel travel and ride quality compared with stock suspension

Compatible With
2005 Toyota Tacoma
2006 Toyota Tacoma
2007 Toyota Tacoma
2008 Toyota Tacoma
2009 Toyota Tacoma
2010 Toyota Tacoma
2011 Toyota Tacoma
2012 Toyota Tacoma
2013 Toyota Tacoma
2014 Toyota Tacoma
2015 Toyota Tacoma
2016 Toyota Tacoma
2017 Toyota Tacoma
2018 Toyota Tacoma
2019 Toyota Tacoma
2020 Toyota Tacoma
2021 Toyota Tacoma
2022 Toyota Tacoma
2023 Toyota Tacoma
