ICON K53008T Stage 8 Suspension System with Tubular UCAs for 2005-2017 Toyota Tacoma

The Stage 8 system includes vehicle-specific tuned 2.5 Series Extended Travel coilover shocks featuring a remote reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3.5” for 2005-2015 models or 0-2.75" for 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. Used in conjunction with the included ICON upper control arm, these extended travel coilovers add increased droop travel to the front suspension. The included ICON tubular upper control arm kit is designed to improve the overall performance of the Toyota Tacoma with corrected front-end geometry, built in additional caster, and improved suspension component clearance. To increase the ride quality of the truck and gain additional droop travel, the ICON RXT multi-rate leaf springs are added to the rear. Designed with an additional leaf (included with kit) that can be exchanged or added to the pack to yield an additional 10-20% spring rate, this leaf spring is perfect for drivers seeking improved rear ride quality in an “unloaded” vehicle as well as those that are have outfitted their trucks with a significant amount of weight in the form of a bed rack, roof top tent, spare tires, parts, or other additions. To compliment this increase in rear wheel travel the Stage 8 system includes a unique 2.5 Aluminum Series remote reservoir shock that features a side-mount eyelet that making it shorter in collapsed length, longer at extension, and still fits in the factory mounting location. A large ten-inch remote reservoir was added to aid in heat dissipation and resist shock fade during spirited driving. ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road. APPLICATION NOTE #87: Installation of complete ICON system required to attain advertised wheel travel. Use of any other manufacturers components will not provide advertised wheel travel and could cause unknown damage.

• ICON RXT Rear Shock with unique side-mounted lower eyelet allows for increased travel (up to 20%) while utilizing factory mounting location
• 2.5 Aluminum Series remote reservoir RXT rear shocks feature corrosion resistant anodized aluminum shock bodies with 7/8" shafts
• 2.5 Series front coilovers with remote reservoirs for improved shock cooling and consistent performance under hard use
• Adjustable coilovers provide up to 3.5" of front lift height on 2005-2015 models and up to 2.75" on 2016-2023 models
• Multi-Rate Leaf Springs with 3 user-adjustable spring rates for unique vehicle configurations
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• FK Rod End bearings for extended longevity and minimal deflection
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint
• Extended Travel coilovers offer maximum wheel travel
• 6061 aircraft grade aluminum CNC machined components
• Increased wheel travel and ride quality over stock

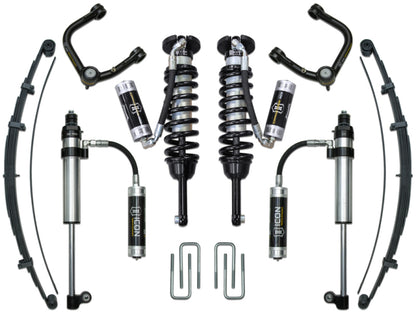

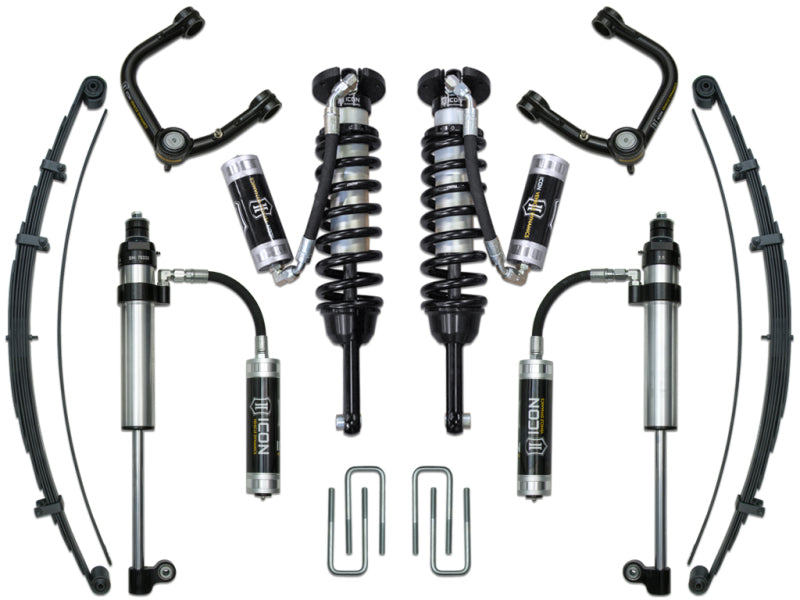

Upgrade your Toyota Tacoma with the ICON K53008T Stage 8 Suspension System, engineered for drivers who demand improved wheel travel, damping control, and ride quality on and off the road. This complete system combines vehicle-specific tuned 2.5 Series Extended Travel front coilovers, ICON tubular upper control arms, multi-rate rear leaf springs, and 2.5 Aluminum Series remote reservoir rear shocks. The result is a balanced suspension package designed to improve handling, comfort, and performance across a wide range of driving conditions.
The remote reservoir front coilovers provide improved cooling and consistent performance during demanding use, while adjustable ride height accommodates up to 3.5 inches of front lift on 2005-2015 Toyota Tacoma models or up to 2.75 inches on 2016-2017 models. The extended-travel design increases front droop travel and supports larger, more aggressive wheel and tire combinations. ICON-engineered coil springs and vehicle-specific shock tuning provide a controlled ride throughout the suspension range.

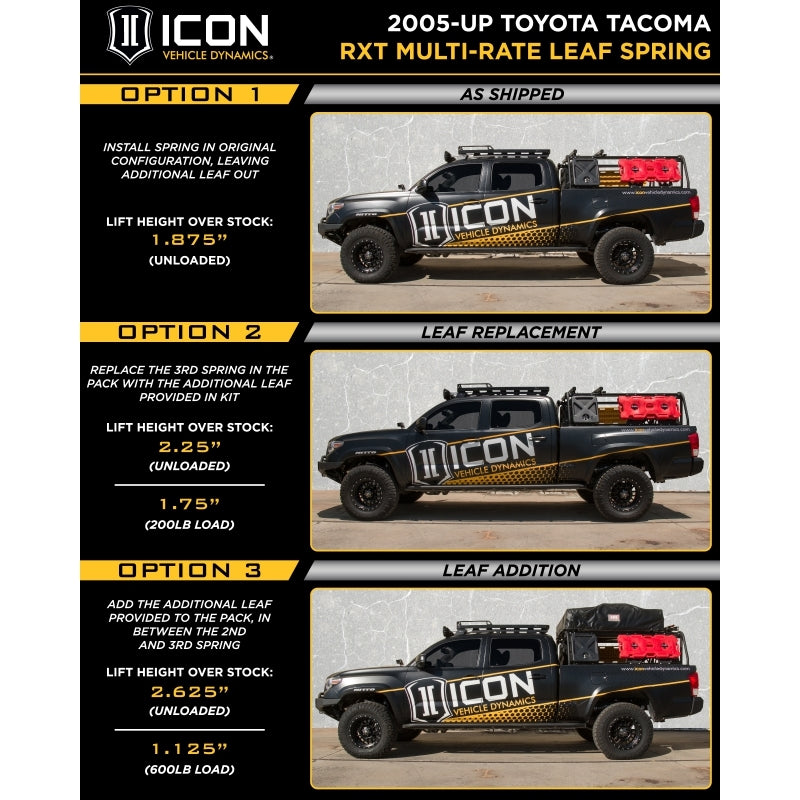

ICON tubular upper control arms correct front-end geometry, add caster, improve component clearance, and use the patented Delta Joint with durable FK rod-end bearings. At the rear, RXT multi-rate leaf springs include an additional leaf that can be exchanged or added to provide an additional 10-20% spring rate. This allows the system to be configured for improved unloaded ride quality or vehicles carrying added equipment such as a bed rack, rooftop tent, spare tire, or other accessories. The unique side-mounted lower eyelet on the RXT rear shocks increases travel while retaining the factory mounting location, and the large remote reservoirs help dissipate heat and resist shock fade.
The ICON K53008T is designed as a complete ICON suspension system. Installation of the complete system is required to achieve the advertised wheel travel; mixing components from other manufacturers may prevent the system from performing as intended and could cause damage. Fits select 2005-2017 Toyota Tacoma applications; verify vehicle configuration and model year before installation.

Features:

• ICON RXT rear shocks with side-mounted lower eyelets increase suspension travel while using the factory mounting location

• 2.5 Aluminum Series remote reservoir rear shocks feature corrosion-resistant anodized aluminum bodies and 7/8-inch shafts

• 2.5 Series front coilovers use remote reservoirs for improved cooling and consistent performance under hard use

• Adjustable front coilovers provide up to 3.5 inches of lift on 2005-2015 models and up to 2.75 inches on 2016-2017 models

• Multi-rate leaf springs provide three user-adjustable spring-rate configurations

• Tubular upper control arms improve strength, durability, alignment correction, and suspension clearance

• Vehicle-specific front and rear shock tuning delivers improved damping and control

• Corrosion-resistant CAD-plated coilover bodies use durable 7/8-inch shafts

• FK rod-end bearings provide extended service life and minimal deflection

• Upper control arms feature the patented Delta Joint

• Extended-travel coilovers increase available wheel travel

• 6061 aircraft-grade aluminum CNC-machined components provide strength and durability

• Increased wheel travel and ride quality compared with the factory suspension

Compatible With
2005 Toyota Tacoma
2006 Toyota Tacoma
2007 Toyota Tacoma
2008 Toyota Tacoma
2009 Toyota Tacoma
2010 Toyota Tacoma
2011 Toyota Tacoma
2012 Toyota Tacoma
2013 Toyota Tacoma
2014 Toyota Tacoma
2015 Toyota Tacoma
2016 Toyota Tacoma
2017 Toyota Tacoma
2018 Toyota Tacoma
2019 Toyota Tacoma
2020 Toyota Tacoma
2021 Toyota Tacoma
2022 Toyota Tacoma
2023 Toyota Tacoma
