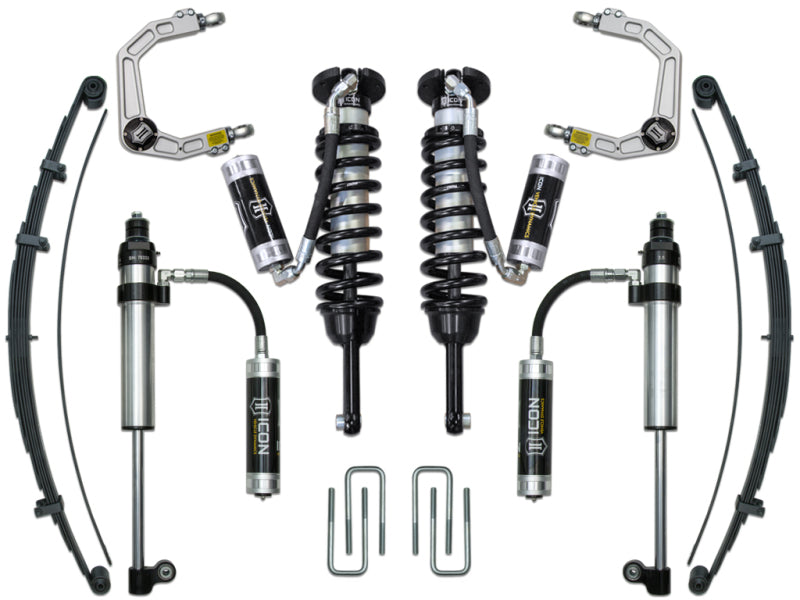

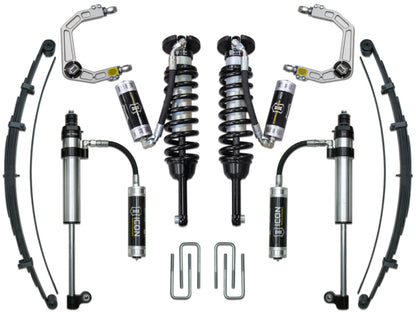

ICON K53008 Stage 8 Suspension System with Billet UCAs for Toyota Tacoma

The Stage 8 system includes vehicle-specific tuned 2.5 Series Extended Travel coilover shocks featuring a remote reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3.5” for 2005-2015 models or 0-2.75" for 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. Used in conjunction with the included ICON upper control arm, these extended travel coilovers add increased droop travel to the front suspension. The included ICON billet aluminum upper control arm kit is designed to improve the overall performance of the Toyota Tacoma with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. To increase the ride quality of the truck and gain additional droop travel, the ICON RXT multi-rate leaf springs are added to the rear. Designed with an additional leaf (included with kit) that can be exchanged or added to the pack to yield an additional 10-20% spring rate, this leaf spring is perfect for drivers seeking improved rear ride quality in an “unloaded” vehicle as well as those that are have outfitted their trucks with a significant amount of weight in the form of a bed rack, roof top tent, spare tires, parts, or other additions. To compliment this increase in rear wheel travel the Stage 8 system includes a unique 2.5 Aluminum Series remote reservoir shock that features a side-mount eyelet that making it shorter in collapsed length, longer at extension, and still fits in the factory mounting location. A large ten-inch remote reservoir was added to aid in heat dissipation and resist shock fade during spirited driving. ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road. APPLICATION NOTE #87: Installation of complete ICON system required to attain advertised wheel travel. Use of any other manufacturers components will not provide advertised wheel travel and could cause unknown damage.

• ICON RXT Rear Shock with unique side-mounted lower eyelet allows for increased travel (up to 20%) while utilizing factory mounting location
• 2.5 Aluminum Series remote reservoir RXT rear shocks feature corrosion resistant anodized aluminum shock bodies with 7/8" shafts
• 2.5 Series front coilovers with remote reservoirs for improved shock cooling and consistent performance under hard use
• Adjustable coilovers provide up to 3.5" of front lift height on 2005-2015 models and up to 2.75" on 2016-2023 models
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• Multi-Rate Leaf Springs with 3 user-adjustable spring rates for unique vehicle configurations
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• FK Rod End bearings for extended longevity and minimal deflection
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint
• Extended Travel coilovers offer maximum wheel travel
• 6061 aircraft grade aluminum CNC machined components
• Increased wheel travel and ride quality over stock

The ICON K53008 Stage 8 Suspension System is engineered for serious off-road drivers seeking increased wheel travel, improved damping, and enhanced ride quality for select Toyota Tacoma models. This vehicle-specific system combines extended-travel 2.5 Series front coilovers with remote reservoirs, ICON-engineered coil springs, billet aluminum upper control arms, RXT multi-rate rear leaf springs, and 2.5 Aluminum Series rear remote-reservoir shocks. Together, these components improve suspension control and performance on demanding trails while maintaining compatibility with the factory rear shock mounting location.
The height-adjustable front coilovers provide up to 3.5 inches of lift on 2005-2015 Tacoma models or up to 2.75 inches on 2016-2023 models, allowing clearance for larger and more aggressive wheel and tire combinations. The included billet aluminum upper control arms correct front suspension geometry, increase on-vehicle caster and camber adjustment, and improve component clearance. Their patented Delta Joint and FK rod end bearings provide durable articulation with minimal deflection.

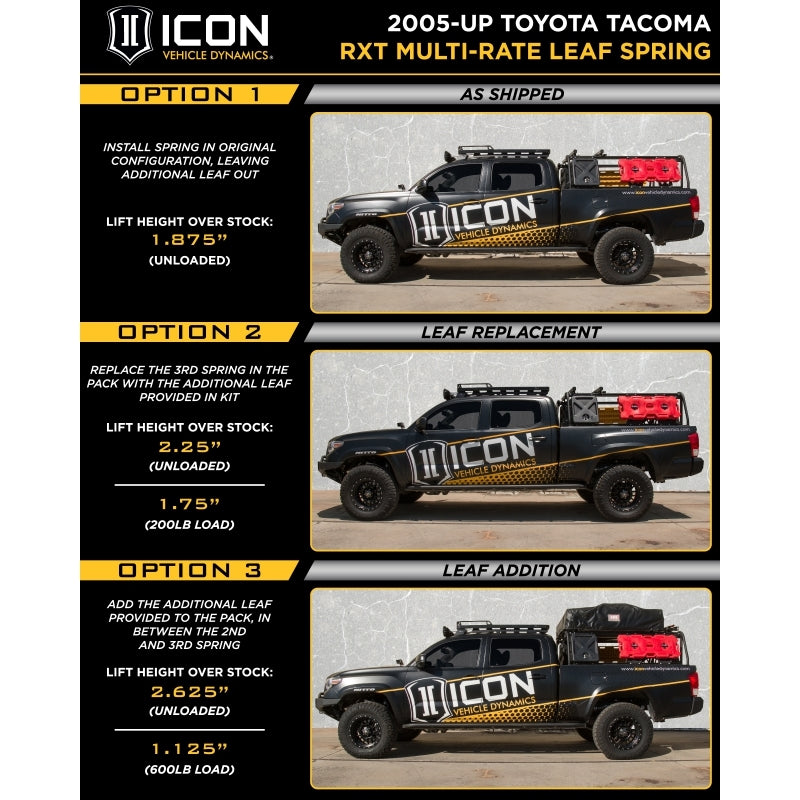

At the rear, ICON RXT multi-rate leaf springs include an additional leaf that can be exchanged or added to achieve a 10-20% spring-rate increase. This adjustable design helps optimize ride quality for an unloaded truck or Tacoma equipped with added weight such as a bed rack, rooftop tent, spare tire, tools, or other accessories. The RXT rear shocks feature a side-mounted lower eyelet for increased travel while using the factory mounting location, along with large remote reservoirs to improve heat dissipation and reduce fade during spirited driving.
For advertised wheel travel, the complete ICON system must be installed as supplied. Combining components from other manufacturers may reduce performance, alter fitment, or cause damage. The ICON K53008 system is designed for select Toyota Tacoma applications and provides a substantial upgrade in suspension travel, ride quality, and off-road control over stock equipment.

Features:

• Vehicle-specific Stage 8 suspension system for select Toyota Tacoma models

• Extended-travel 2.5 Series front coilovers with remote reservoirs for improved cooling

• Adjustable front lift height up to 3.5 inches for 2005-2015 models and up to 2.75 inches for 2016-2023 models

• Billet aluminum upper control arms with improved caster and camber adjustment

• Patented Delta Joint upper control arm design for increased articulation and durability

• RXT multi-rate rear leaf springs with three user-adjustable spring-rate configurations

• Included additional leaf supports a 10-20% spring-rate increase

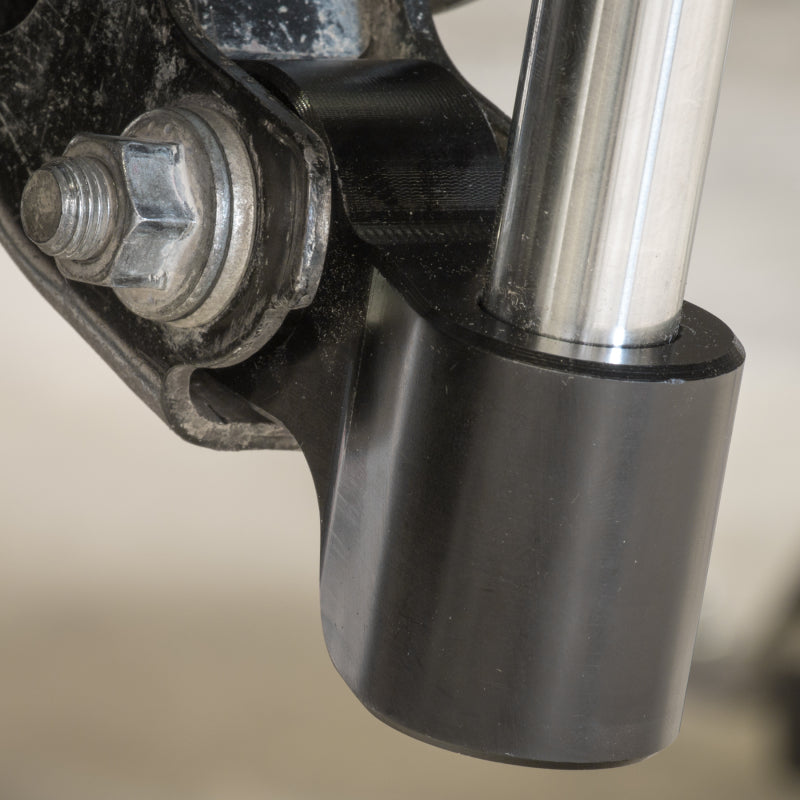

• RXT rear shocks feature a side-mounted lower eyelet for increased travel in the factory mounting location

• 2.5 Aluminum Series rear remote-reservoir shocks with corrosion-resistant anodized aluminum bodies

• Vehicle-specific front and rear shock tuning for improved damping and control

• Corrosion-resistant coilover bodies with 7/8-inch shafts

• FK rod end bearings provide extended longevity and minimal deflection

• 6061 aircraft-grade aluminum CNC-machined components

• Increased wheel travel and ride quality compared with stock suspension

Compatible With
2005 Toyota Tacoma
2006 Toyota Tacoma
2007 Toyota Tacoma
2008 Toyota Tacoma
2009 Toyota Tacoma
2010 Toyota Tacoma
2011 Toyota Tacoma
2012 Toyota Tacoma
2013 Toyota Tacoma
2014 Toyota Tacoma
2015 Toyota Tacoma
2016 Toyota Tacoma
2017 Toyota Tacoma
2018 Toyota Tacoma
2019 Toyota Tacoma
2020 Toyota Tacoma
2021 Toyota Tacoma
2022 Toyota Tacoma
2023 Toyota Tacoma
