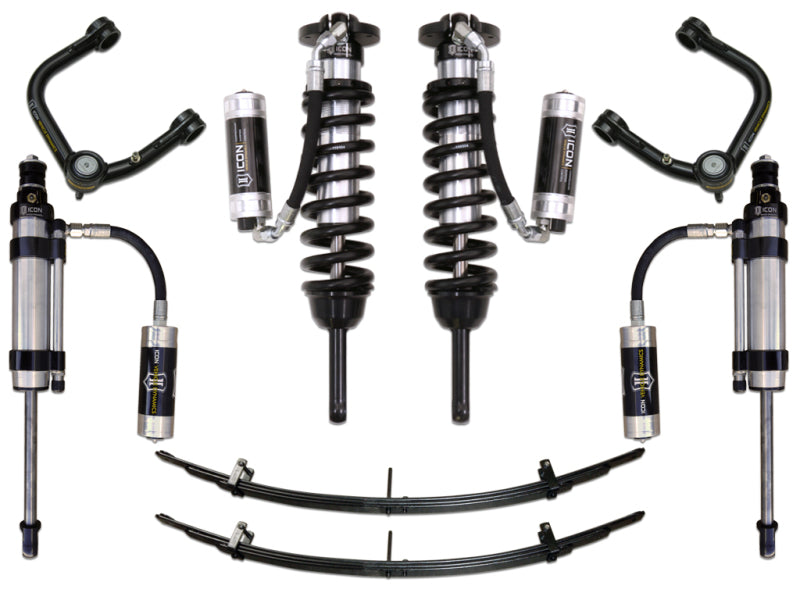

ICON K53007T Stage 7 Suspension System with Tubular UCAs for 2005-2023 Toyota Tacoma

ICON Vehicle Dynamics Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 7 system includes vehicle-specific tuned 2.5” Extended Travel coilover shocks featuring remote reservoirs equipped with CDCV for exceptional cooling properties and adjustable compression damping as well as ICON-engineered coil springs for superior vehicle “feel” through the range of travel. The ICON CDC Valves are externally adjustable valves that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. These coilovers are also height adjustable from 0-3.5” of lift on 2005-2015 or 0-2.75” on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. The included ICON tubular upper control arm kit is designed to improve the overall performance of the Toyota Tacoma with corrected front-end geometry, built in additional caster, and improved suspension component clearance. The included rear Add-A-Leaf Kit Installs in place of the factory overload leaves and effectively lowers the rear spring rate by approximately 10% for a more compliant ride while also providing 1.5" of rear lift over stock. 2.5 Series Omega Bypass rear shocks combine vehicle-specific valving, multiple shock damping zones, and 28 settings of compression and rebound adjustment to give end-users ultimate control of the performance and ride quality of the rear of the Tacoma. The ICON Vehicle Dynamics 2005-2023 Toyota Tacoma Stage 7 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt. ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road. TECH NOTE: 2017-2023 Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock and rear lift height of 1" over stock

• 2.5 Aluminum Series Omega Bypass rear shocks with compression and rebound adjustability provide the ultimate in ride control
• 2.5 Series front coilovers with remote reservoirs for improved shock cooling and consistent performance under hard use
• Adjustable coilovers provide up to 3.5" of front lift height on 2005-2015 models and up to 2.75" on 2016-2023 models
• Front coilovers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
• Add-A-Leaf Kit replaces OE overload leaf spring for more compliant ride quality and 1.5" of rear lift
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• FK Rod End bearings for extended longevity and minimal deflection
• Bolt-on system means no cutting or welding necessary for install
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint
• Extended Travel coilovers offer maximum wheel travel
• 6061 aircraft grade aluminum CNC machined components
• Increased wheel travel and ride quality over stock

Upgrade your Toyota Tacoma with the ICON Vehicle Dynamics K53007T Stage 7 Suspension System, engineered for drivers who demand improved control, increased wheel travel, and dependable performance on pavement and off-road terrain. This complete suspension package combines vehicle-specific tuned front coilovers, rear Omega Bypass shocks, tubular upper control arms, and a rear Add-A-Leaf Kit to improve ride quality, suspension response, and overall capability. It is designed for select 2005-2023 Toyota Tacoma applications and installs without cutting or welding.
The front 2.5 Series Extended Travel coilovers feature remote reservoirs for improved cooling during demanding use, corrosion-resistant CAD-plated bodies, 7/8-inch shafts, ICON-engineered coil springs, and externally adjustable CDC Valves. The CDC system provides 10 compression damping settings, allowing you to tailor the ride from softer to firmer conditions. Adjustable front lift ranges provide up to 3.5 inches on 2005-2015 models and up to 2.75 inches on 2016-2023 models. On 2017-2023 Tacoma TRD Pro models, the front lift range is 0-1.25 inches over stock.
At the rear, 2.5 Series Aluminum Omega Bypass shocks use vehicle-specific valving, multiple damping zones, and 28 settings of compression and rebound adjustment for precise ride control. The included Add-A-Leaf Kit replaces the factory overload leaves, lowers the rear spring rate by approximately 10 percent for a more compliant ride, and adds 1.5 inches of rear lift. Tubular upper control arms improve front-end geometry, add caster, increase component clearance, and use ICON's patented Delta Joint for durability and reduced deflection. The ICON K53007T system uses 6061 aircraft-grade aluminum components and FK rod-end bearings for long-term performance.

Features:

• 2.5 Series Aluminum Omega Bypass rear shocks with adjustable compression and rebound damping

• 2.5 Series front coilovers with remote reservoirs for improved cooling and consistent performance

• Adjustable front coilovers provide up to 3.5 inches of lift on 2005-2015 models and up to 2.75 inches on 2016-2023 models

• Externally adjustable CDC Valves provide 10 compression damping settings

• Rear Add-A-Leaf Kit replaces the factory overload leaves for a more compliant ride and 1.5 inches of rear lift

• Tubular upper control arms improve strength, alignment correction, caster, and suspension clearance

• Vehicle-specific front and rear shock valving improves control on and off the road

• Corrosion-resistant CAD-plated coilover bodies with 7/8-inch shafts

• FK rod-end bearings provide extended service life and minimal deflection

• Bolt-on installation requires no cutting or welding

• Upper control arms feature ICON's patented Delta Joint

• Extended Travel coilovers increase wheel travel over stock

• 6061 aircraft-grade aluminum CNC-machined components

Compatible With
2005 Toyota Tacoma
2006 Toyota Tacoma
2007 Toyota Tacoma
2008 Toyota Tacoma
2009 Toyota Tacoma
2010 Toyota Tacoma
2011 Toyota Tacoma
2012 Toyota Tacoma
2013 Toyota Tacoma
2014 Toyota Tacoma
2015 Toyota Tacoma
2016 Toyota Tacoma
2017 Toyota Tacoma
2018 Toyota Tacoma
2019 Toyota Tacoma
2020 Toyota Tacoma
2021 Toyota Tacoma
2022 Toyota Tacoma
2023 Toyota Tacoma
