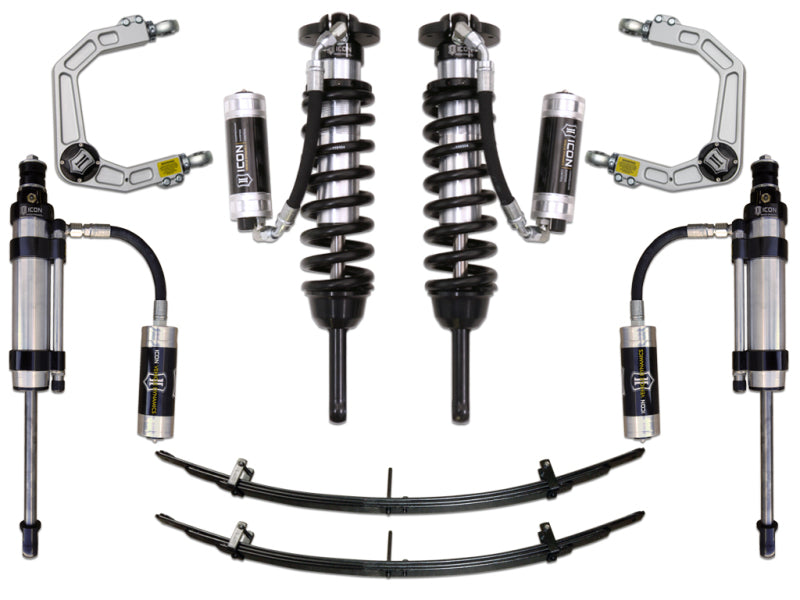

ICON K53007 Stage 7 Suspension System with Billet UCAs for 2005-2023 Toyota Tacoma

ICON Vehicle Dynamics Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 7 system includes vehicle-specific tuned 2.5” Extended Travel coilover shocks featuring remote reservoirs equipped with CDCV for exceptional cooling properties and adjustable compression damping as well as ICON-engineered coil springs for superior vehicle “feel” through the range of travel. The ICON CDC Valves are externally adjustable valves that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. These coilovers are also height adjustable from 0-3.5” of lift on 2005-2015 or 0-2.75” on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. The included ICON billet aluminum upper control arm kit is designed to improve the overall performance of the Toyota Tacoma with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. The included rear Add-A-Leaf Kit Installs in place of the factory overload leaves and effectively lowers the rear spring rate by approximately 10% for a more compliant ride while also providing 1.5" of rear lift over stock. 2.5 Series Omega Bypass rear shocks combine vehicle-specific valving, multiple shock damping zones, and 28 settings of compression and rebound adjustment to give end-users ultimate control of the performance and ride quality of the rear of the Tacoma. The ICON Vehicle Dynamics 2005-2023 Toyota Tacoma Stage 7 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt. ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road. TECH NOTE: 2017-2023 Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock and rear lift height of 1" over stock

• 2.5 Aluminum Series Omega Bypass rear shocks with compression and rebound adjustability provide the ultimate in ride control
• 2.5 Series front coilovers with remote reservoirs for improved shock cooling and consistent performance under hard use
• Adjustable coilovers provide up to 3.5" of front lift height on 2005-2015 models and up to 2.75" on 2016-2023 models
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• Front coilovers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
• Add-A-Leaf Kit replaces OE overload leaf spring for more compliant ride quality and 1.5" of rear lift
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• FK Rod End bearings for extended longevity and minimal deflection
• Bolt-on system means no cutting or welding necessary for install
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint
• Extended Travel coilovers offer maximum wheel travel
• 6061 aircraft grade aluminum CNC machined components
• Increased wheel travel and ride quality over stock

Upgrade your Toyota Tacoma with the ICON Vehicle Dynamics K53007 Stage 7 suspension system, engineered for drivers who demand improved control, wheel travel, and ride quality on pavement and off-road. This vehicle-specific system combines extended-travel front coilovers, billet aluminum upper control arms, a rear Add-A-Leaf kit, and adjustable Omega Bypass rear shocks for a complete suspension performance upgrade. It is designed to fit 2005-2023 Toyota Tacoma models, with application-specific lift ranges for different model years.
The front 2.5 Series coilovers feature remote reservoirs for improved heat management and consistent performance during demanding use. ICON CDC Valves provide 10 externally adjustable compression damping settings, allowing you to tune the suspension from softer to firmer control characteristics. Height adjustment provides up to 3.5 inches of front lift on 2005-2015 models and up to 2.75 inches on 2016-2023 models. On 2017-2023 Tacoma TRD Pro models, the front lift range is 0-1.25 inches over stock. The included ICON billet aluminum upper control arms correct front suspension geometry while adding on-vehicle caster and camber adjustment, component clearance, and strength. Patented Delta Joint technology and FK rod ends support durable, low-deflection operation.
At the rear, the Add-A-Leaf kit replaces the factory overload leaves to lower the rear spring rate by approximately 10 percent for a more compliant ride while providing 1.5 inches of rear lift over stock. The 2.5 Series Omega Bypass rear shocks use vehicle-specific valving, multiple damping zones, and 28 combined compression and rebound adjustment settings for precise ride and performance tuning. Corrosion-resistant CAD-plated shock bodies, 7/8-inch shafts, and CNC-machined 6061 aircraft-grade aluminum components provide dependable performance. This bolt-on system requires no cutting or welding and is an excellent choice for enhancing Tacoma handling, comfort, and capability.

Features:

• 2.5 Series Omega Bypass rear shocks with adjustable compression and rebound damping for precise ride control

• 2.5 Series front coilovers with remote reservoirs for improved cooling and consistent performance

• Adjustable front lift range up to 3.5 inches on 2005-2015 Tacoma models and up to 2.75 inches on 2016-2023 models

• Billet aluminum upper control arms improve strength, clearance, and on-vehicle caster and camber adjustment

• ICON CDC Valves provide 10 settings of externally adjustable compression damping

• Rear Add-A-Leaf kit replaces factory overload leaves for a more compliant ride and 1.5 inches of rear lift

• Vehicle-specific front and rear shock tuning improves damping, control, and ride quality

• Corrosion-resistant CAD-plated coilover bodies with 7/8-inch shafts

• FK rod end bearings provide extended longevity and minimal deflection

• Bolt-on installation requires no cutting or welding

• Patented Delta Joint upper control arm design

• Extended-travel coilovers maximize usable wheel travel

• CNC-machined 6061 aircraft-grade aluminum components

• Designed for improved wheel travel and ride quality over stock

Compatible With
2005 Toyota Tacoma
2006 Toyota Tacoma
2007 Toyota Tacoma
2008 Toyota Tacoma
2009 Toyota Tacoma
2010 Toyota Tacoma
2011 Toyota Tacoma
2012 Toyota Tacoma
2013 Toyota Tacoma
2014 Toyota Tacoma
2015 Toyota Tacoma
2016 Toyota Tacoma
2017 Toyota Tacoma
2018 Toyota Tacoma
2019 Toyota Tacoma
2020 Toyota Tacoma
2021 Toyota Tacoma
2022 Toyota Tacoma
2023 Toyota Tacoma
