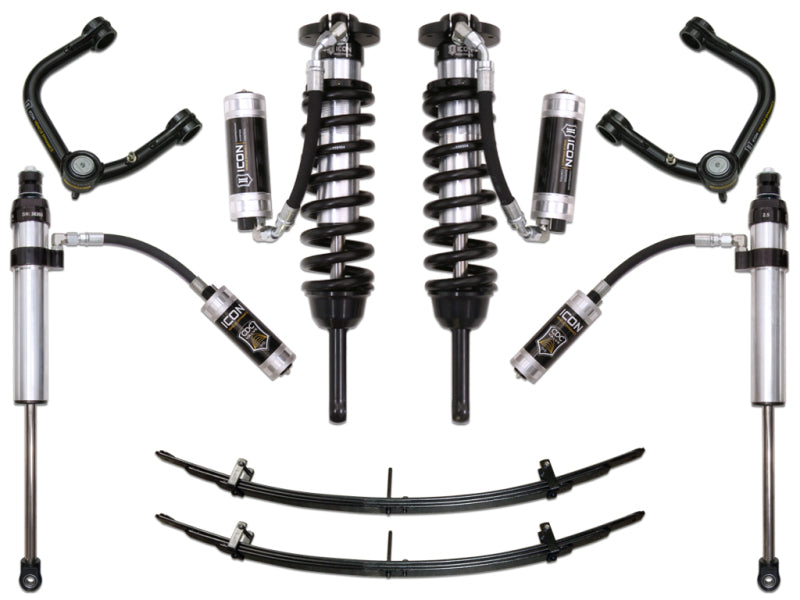

ICON K53006T Stage 6 Suspension System with Tubular UCAs for 2005-2023 Toyota Tacoma

ICON Vehicle Dynamics Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 6 system includes vehicle-specific tuned 2.5” Extended Travel coilover shocks featuring remote reservoirs equipped with CDCV for exceptional cooling properties and adjustable compression damping as well as ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3.5” of lift on 2005-2015 or 0-2.75” on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. The included ICON tubular upper control arm kit is designed to improve the overall performance of the Toyota Tacoma with corrected front-end geometry, built in additional caster, and improved suspension component clearance. Additionally, replacing the OE ball joint with the serviceable ICON Delta Joint allows for full bump and droop travel of the front suspension while eliminating bind. The included rear Add-A-Leaf Kit Installs in place of the factory overload leaves and effectively lowers the rear spring rate by approximately 10% for a more compliant ride while also providing 1.5" of rear lift over stock. ICON 2.5 Aluminum Series Remote Reservoir rear shocks with CDCV utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The included ICON CDC Valves are externally adjustable valves that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. The ICON Vehicle Dynamics 2005-2023 Toyota Tacoma Stage 6 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt. ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road. TECH NOTE: 2017-2023 Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock and rear lift height of 1" over stock

• 2.5 Series front coilovers with remote reservoirs for improved shock cooling and consistent performance under hard use
• Adjustable coilovers provide up to 3.5" of front lift height on 2005-2015 models and up to 2.75" on 2016-2023 models
• All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
• Add-A-Leaf Kit replaces OE overload leaf spring for more compliant ride quality and 1.5" of rear lift
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts offer increased shock damping
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• FK Rod End bearings for extended longevity and minimal deflection
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint
• Extended Travel coilovers offer maximum wheel travel
• 6061 aircraft grade aluminum CNC machined components
• Increased wheel travel and ride quality over stock

The ICON Vehicle Dynamics K53006T Stage 6 suspension system is engineered for serious Toyota Tacoma drivers seeking greater wheel travel, improved damping, and enhanced control on pavement and off-road terrain. Designed for 2005-2023 Toyota Tacoma models, this complete system combines vehicle-specific tuned front and rear shocks, adjustable coilovers, tubular upper control arms, and a rear Add-A-Leaf Kit for a balanced suspension upgrade.
The 2.5 Series extended-travel front coilovers feature remote reservoirs for improved cooling during demanding driving and externally adjustable CDC Valves with 10 compression damping settings. Height adjustment provides up to 3.5 inches of front lift on 2005-2015 Tacoma models and up to 2.75 inches on 2016-2023 models. On 2017-2023 Tacoma TRD Pro models, the front lift range is 0-1.25 inches over stock. ICON-engineered coil springs and corrosion-resistant CAD-plated shock bodies help deliver consistent performance, while 7/8-inch shafts and 6061 aircraft-grade aluminum components support durability.
The included tubular upper control arms improve front-end geometry, add caster, and increase suspension component clearance. Each control arm uses a serviceable ICON Delta Joint to help maintain full bump and droop travel while reducing binding. FK rod-end bearings provide long service life and minimal deflection. At the rear, the Add-A-Leaf Kit replaces the factory overload leaves, lowers the rear spring rate by approximately 10 percent for a more compliant ride, and provides 1.5 inches of rear lift. ICON 2.5 Aluminum Series remote-reservoir rear shocks use vehicle-specific valving and CDC Valves to balance damping from front to rear. This ICON suspension system is a performance-focused solution for improved ride quality, stability, and off-road capability.

Features:

• 2.5 Series front coilovers with remote reservoirs improve shock cooling and maintain consistent performance under hard use

• Adjustable front coilovers provide up to 3.5 inches of lift on 2005-2015 models and up to 2.75 inches on 2016-2023 models

• CDC Valves provide 10 settings of compression damping adjustment from soft to firm

• Add-A-Leaf Kit replaces the factory overload leaf springs for a more compliant ride and 1.5 inches of rear lift

• 2.5 Aluminum Series remote-reservoir rear shocks with 7/8-inch shafts provide increased damping control

• Tubular upper control arms improve strength, durability, alignment correction, and suspension clearance

• Vehicle-specific front and rear shock tuning enhances ride quality, control, and balance

• Corrosion-resistant CAD-plated coilover shock bodies support long-term durability

• FK rod-end bearings provide extended service life and minimal deflection

• Patented ICON Delta Joints allow full suspension travel while reducing bind

• Extended-travel coilovers increase wheel travel over stock suspension

• 6061 aircraft-grade aluminum CNC-machined components provide strength with reduced weight

Compatible With
2005 Toyota Tacoma
2006 Toyota Tacoma
2007 Toyota Tacoma
2008 Toyota Tacoma
2009 Toyota Tacoma
2010 Toyota Tacoma
2011 Toyota Tacoma
2012 Toyota Tacoma
2013 Toyota Tacoma
2014 Toyota Tacoma
2015 Toyota Tacoma
2016 Toyota Tacoma
2017 Toyota Tacoma
2018 Toyota Tacoma
2019 Toyota Tacoma
2020 Toyota Tacoma
2021 Toyota Tacoma
2022 Toyota Tacoma
2023 Toyota Tacoma
