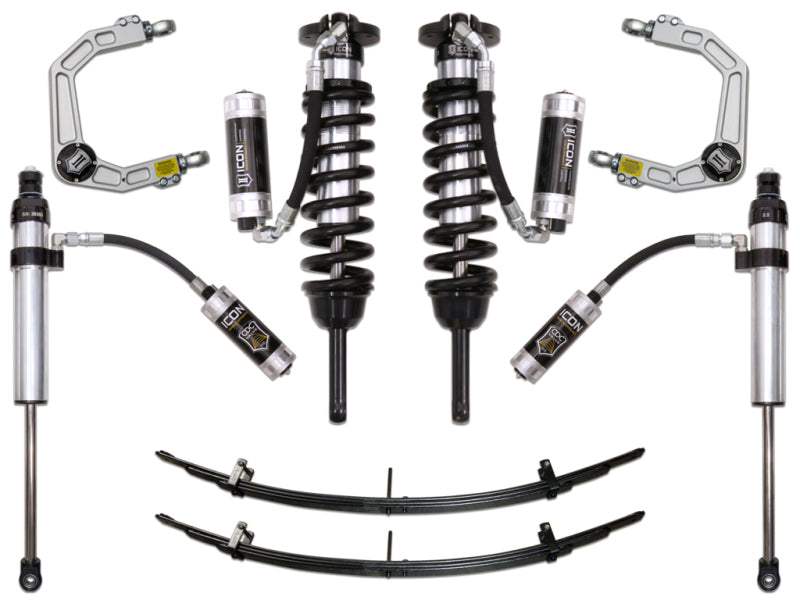

ICON K53006 Stage 6 Suspension System with Billet UCAs for 2005-2023 Toyota Tacoma

ICON Vehicle Dynamics Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 6 system includes vehicle-specific tuned 2.5” Extended Travel coilover shocks featuring remote reservoirs equipped with CDCV for exceptional cooling properties and adjustable compression damping as well as ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3.5” of lift on 2005-2015 or 0-2.75” on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. The included ICON billet aluminum upper control arm kit is designed to improve the overall performance of the Toyota Tacoma with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Additionally, replacing the OE ball joint with the serviceable ICON Delta Joint allows for full bump and droop travel of the front suspension while eliminating bind. The included rear Add-A-Leaf Kit Installs in place of the factory overload leaves and effectively lowers the rear spring rate by approximately 10% for a more compliant ride while also providing 1.5" of rear lift over stock. ICON 2.5 Aluminum Series Remote Reservoir rear shocks with CDCV utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The included ICON CDC Valves are externally adjustable valves that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. The ICON Vehicle Dynamics 2005-2023 Toyota Tacoma Stage 6 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt. ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road. TECH NOTE: 2017-2023 Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock and rear lift height of 1" over stock

• 2.5 Series front coilovers with remote reservoirs for improved shock cooling and consistent performance under hard use
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• Adjustable coilovers provide up to 3.5" of front lift height on 2005-2015 models and up to 2.75" on 2016-2023 models
• All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
• Add-A-Leaf Kit replaces OE overload leaf spring for more compliant ride quality and 1.5" of rear lift
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts offer increased shock damping
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• FK Rod End bearings for extended longevity and minimal deflection
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint
• Extended Travel coilovers offer maximum wheel travel
• 6061 aircraft grade aluminum CNC machined components
• Increased wheel travel and ride quality over stock

The ICON Vehicle Dynamics K53006 Stage 6 Suspension System is engineered for Toyota Tacoma drivers seeking improved wheel travel, damping control, and ride quality on and off the road. Designed for 2005-2023 Tacoma models, this comprehensive system combines vehicle-specific 2.5 Series extended-travel coilovers, billet aluminum upper control arms, rear Add-A-Leaf components, and 2.5 Aluminum Series remote reservoir rear shocks. The result is balanced suspension performance, enhanced control, and increased capability for demanding street and off-road use.
The front coilovers feature remote reservoirs for improved heat dissipation and consistent performance under hard use. Externally adjustable CDC Valves provide 10 levels of compression damping adjustment, allowing drivers to tune the suspension from softer to firmer settings. Height-adjustable coilovers provide up to 3.5 inches of front lift on 2005-2015 models and up to 2.75 inches on 2016-2023 models. On 2017-2023 Tacoma TRD Pro models, the front lift range is 0-1.25 inches over stock. The rear Add-A-Leaf Kit replaces the factory overload leaves to improve ride compliance while providing approximately 1.5 inches of rear lift, or 1 inch on 2017-2023 TRD Pro models.
The included ICON billet aluminum upper control arms improve front-end geometry, increase on-vehicle caster and camber adjustment, and provide greater suspension component clearance. Each arm uses a serviceable ICON Delta Joint to support full bump and droop travel while reducing bind. Corrosion-resistant CAD-plated shock bodies, 7/8-inch shock shafts, FK rod end bearings, and CNC-machined 6061 aircraft-grade aluminum components provide durability for long-term use. The ICON K53006 Stage 6 system is a complete suspension upgrade for Tacoma owners who want increased travel, adjustable damping, and vehicle-specific performance without sacrificing everyday drivability.

Features:

• 2.5 Series front coilovers with remote reservoirs improve shock cooling and maintain consistent performance during demanding driving

• Billet aluminum upper control arms improve strength, durability, front-end geometry, and on-vehicle caster and camber adjustment

• Adjustable front coilovers provide up to 3.5 inches of lift on 2005-2015 Tacoma models and up to 2.75 inches on 2016-2023 models

• 2017-2023 Tacoma TRD Pro models receive a front lift range of 0-1.25 inches and approximately 1 inch of rear lift over stock

• Externally adjustable CDC Valves provide 10 compression damping settings from soft to firm

• Rear Add-A-Leaf Kit replaces the factory overload leaves for a more compliant ride and approximately 1.5 inches of rear lift

• 2.5 Aluminum Series remote reservoir rear shocks with 7/8-inch shafts provide increased damping control

• Vehicle-specific front and rear shock tuning balances handling, ride quality, and off-road performance

• Corrosion-resistant CAD-plated coilover bodies support long-term durability

• FK rod end bearings provide extended service life and minimal deflection

• ICON upper control arms include the patented serviceable Delta Joint for improved suspension articulation

• Extended-travel coilovers increase wheel travel and suspension capability over stock

• CNC-machined 6061 aircraft-grade aluminum components provide strength with reduced weight

Compatible With
2005 Toyota Tacoma
2006 Toyota Tacoma
2007 Toyota Tacoma
2008 Toyota Tacoma
2009 Toyota Tacoma
2010 Toyota Tacoma
2011 Toyota Tacoma
2012 Toyota Tacoma
2013 Toyota Tacoma
2014 Toyota Tacoma
2015 Toyota Tacoma
2016 Toyota Tacoma
2017 Toyota Tacoma
2018 Toyota Tacoma
2019 Toyota Tacoma
2020 Toyota Tacoma
2021 Toyota Tacoma
2022 Toyota Tacoma
2023 Toyota Tacoma
