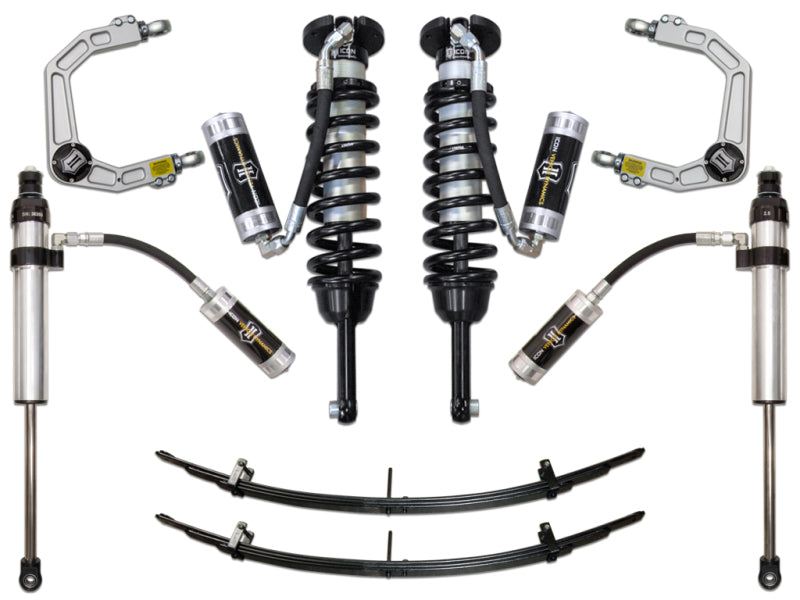

ICON K53005 Stage 5 Suspension System with Billet Upper Control Arms for 2005-2023 Toyota Tacoma

ICON Vehicle Dynamics Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 5 system includes vehicle-specific tuned 2.5” Extended Travel coilover shocks featuring remote reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3.5” of lift on 2005-2015 or 0-2.75” on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. When used with an ICON upper control arm, these extended travel coilovers add increased droop travel to the front suspension. The included ICON billet aluminum upper control arm kit is designed to improve the overall performance of the Toyota Tacoma with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Additionally, replacing the OE ball joint with the serviceable ICON Delta Joint allows for full bump and droop travel of the front suspension while eliminating bind. The included rear Add-A-Leaf Kit Installs in place of the factory overload leaves and effectively lowers the rear spring rate by approximately 10% for a more compliant ride while also providing 1.5" of rear lift over stock. ICON 2.5 Aluminum Series Remote Reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2005-2023 Toyota Tacoma Stage 5 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt. ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road. TECH NOTE: 2017-2023 Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock and rear lift height of 1" over stock

• 2.5 Series front coilovers with remote reservoirs for improved shock cooling and consistent performance under hard use
• Adjustable coilovers provide up to 3.5" of front lift height on 2005-2015 models and up to 2.75" on 2016-2023 models
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• Add-A-Leaf Kit replaces OE overload leaf spring for more compliant ride quality and 1.5" of rear lift
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts offer increased shock damping
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• FK Rod End bearings for extended longevity and minimal deflection
• Bolt-on system means no cutting or welding necessary for install
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint
• Extended Travel coilovers offer maximum wheel travel
• 6061 aircraft grade aluminum CNC machined components
• Increased wheel travel and ride quality over stock

The ICON K53005 Stage 5 Suspension System is engineered for Toyota Tacoma drivers seeking improved suspension control, ride quality, and off-road capability. Designed for 2005-2023 Tacoma models, this system combines extended-travel front coilovers, billet aluminum upper control arms, a rear add-a-leaf kit, and vehicle-specific rear shocks. The result is increased wheel travel, improved damping, and more predictable handling on pavement and uneven terrain.
The 2.5 Series front coilovers feature remote reservoirs for improved heat dissipation and consistent performance during demanding use. Their vehicle-specific tuning and adjustable ride height provide up to 3.5 inches of front lift on 2005-2015 models and up to 2.75 inches on 2016-2023 models. The supplied ICON billet aluminum upper control arms correct front suspension geometry while adding on-vehicle caster and camber adjustment. Each control arm uses the serviceable ICON Delta Joint to support full bump and droop travel with reduced binding and improved component clearance.
At the rear, the Add-A-Leaf Kit replaces the factory overload leaves, lowering the rear spring rate by approximately 10% for a more compliant ride while providing 1.5 inches of rear lift over stock. ICON 2.5 Aluminum Series remote reservoir rear shocks use vehicle-specific valving and 7/8-inch shafts to balance front-to-rear damping. The corrosion-resistant coilover bodies, FK rod end bearings, and 6061 aircraft-grade aluminum CNC-machined components are built for long-term durability. This bolt-on system requires no cutting or welding. For 2017-2023 Tacoma TRD Pro models, the front lift range is 0-1.25 inches over stock and rear lift is 1 inch over stock.

Features:

• 2.5 Series front coilovers with remote reservoirs for improved shock cooling and consistent performance under demanding conditions

• Adjustable front coilovers provide up to 3.5 inches of lift on 2005-2015 Tacoma models and up to 2.75 inches on 2016-2023 models

• Billet aluminum upper control arms improve strength, durability, front-end geometry, and on-vehicle caster and camber adjustment

• Serviceable ICON Delta Joint supports full bump and droop travel while reducing suspension bind

• Rear Add-A-Leaf Kit replaces the factory overload leaves for a more compliant ride and 1.5 inches of rear lift

• 2.5 Aluminum Series remote reservoir rear shocks with 7/8-inch shafts provide increased damping control

• Vehicle-specific front and rear shock tuning improves ride quality and suspension balance

• Corrosion-resistant CAD-plated coilover shock bodies are designed for long-term durability

• FK rod end bearings provide extended service life and minimal deflection

• Bolt-on installation requires no cutting or welding

• Extended-travel coilovers increase wheel travel over the factory suspension

• 6061 aircraft-grade aluminum CNC-machined components provide strength with reduced weight

Compatible With
2005 Toyota Tacoma
2006 Toyota Tacoma
2007 Toyota Tacoma
2008 Toyota Tacoma
2009 Toyota Tacoma
2010 Toyota Tacoma
2011 Toyota Tacoma
2012 Toyota Tacoma
2013 Toyota Tacoma
2014 Toyota Tacoma
2015 Toyota Tacoma
2016 Toyota Tacoma
2017 Toyota Tacoma
2018 Toyota Tacoma
2019 Toyota Tacoma
2020 Toyota Tacoma
2021 Toyota Tacoma
2022 Toyota Tacoma
2023 Toyota Tacoma
