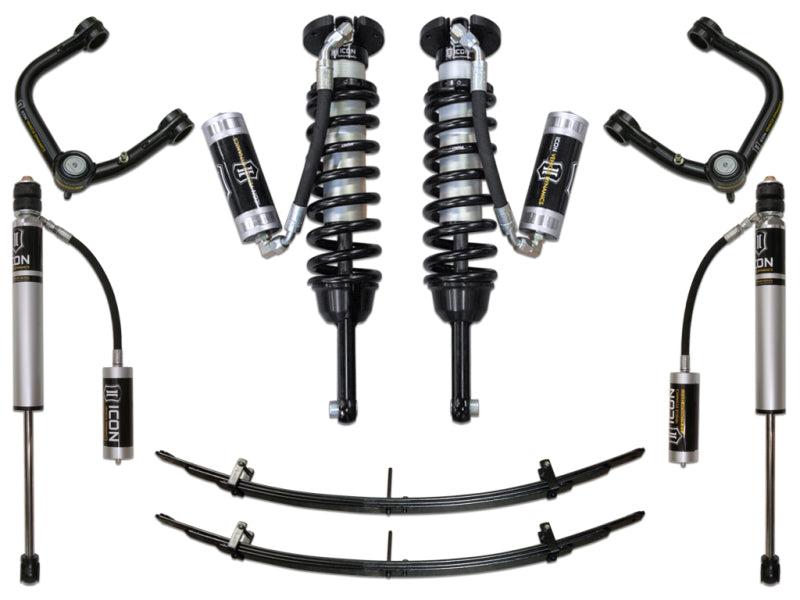

ICON K53004T Stage 4 Suspension System with Tubular UCAs for 2005-2023 Toyota Tacoma

ICON Vehicle Dynamics Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 4 system includes vehicle-specific tuned 2.5” Extended Travel coilover shocks featuring remote reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3.5” of lift on 2005-2015 or 0-2.75” on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. When used with an ICON upper control arm, these extended travel coilovers add increased droop travel to the front suspension. The included ICON tubular upper control arm kit is designed to improve the overall performance of the Toyota Tacoma with corrected front-end geometry, built in additional caster, and improved suspension component clearance. Additionally, replacing the OE ball joint with the serviceable ICON Delta Joint allows for full bump and droop travel of the front suspension while eliminating bind. The included rear Add-A-Leaf Kit Installs in place of the factory overload leaves and effectively lowers the rear spring rate by approximately 10% for a more compliant ride while also providing 1.5" of rear lift over stock. ICON 2.0 Aluminum Series Remote Reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2005-2023 Toyota Tacoma Stage 4 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt. ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road. TECH NOTE: 2017-2023 Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock and rear lift height of 1" over stock

• 2.5 Series front coilovers with remote reservoirs for improved shock cooling and consistent performance under hard use
• Adjustable coilovers provide up to 3.5" of front lift height on 2005-2015 models and up to 2.75" on 2016-2023 models
• Add-A-Leaf Kit replaces OE overload leaf spring for more compliant ride quality and 1.5" of rear lift
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• 2.0 Aluminum Series remote reservoir rear shocks with 5/8" shafts
• FK Rod End bearings for extended longevity and minimal deflection
• Bolt-on system means no cutting or welding necessary for install
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint
• Extended Travel coilovers offer maximum wheel travel
• 6061 aircraft grade aluminum CNC machined components
• Increased wheel travel and ride quality over stock

Upgrade your Toyota Tacoma with the ICON Vehicle Dynamics K53004T Stage 4 Suspension System, engineered for drivers who demand improved control, increased wheel travel, and confident performance on and off the road. This complete system combines extended-travel front coilovers, tubular upper control arms, a rear Add-A-Leaf Kit, and vehicle-specific tuned shocks to improve ride quality and suspension capability over the factory setup. It fits 2005-2023 Toyota Tacoma models, with application-specific lift ranges based on model year.
The front 2.5 Series coilovers feature remote reservoirs for improved heat dissipation and consistent damping during demanding use. Their adjustable design provides 0 to 3.5 inches of front lift on 2005-2015 Tacoma models and 0 to 2.75 inches on 2016-2023 models. The coilovers use ICON-engineered springs, corrosion-resistant CAD-plated bodies, and 7/8-inch shafts. When paired with the included tubular upper control arms, the extended-travel design adds droop travel while corrected geometry, increased caster, and improved component clearance support better drivability and alignment performance. The patented ICON Delta Joint is serviceable and helps eliminate ball joint bind through the suspension’s operating range.
At the rear, the Add-A-Leaf Kit replaces the factory overload leaves to lower the rear spring rate by approximately 10 percent for a more compliant ride while adding 1.5 inches of rear lift over stock. ICON 2.0 Aluminum Series remote-reservoir rear shocks use vehicle-specific valving to balance front-to-rear performance. CNC-machined 6061 aircraft-grade aluminum components and FK rod end bearings provide strength, durability, and minimal deflection. This bolt-on system requires no cutting or welding. On 2017-2023 Tacoma TRD Pro models, the front lift range is 0 to 1.25 inches over stock and the rear lift is 1 inch over stock. Professional installation is recommended, and vehicle-specific alignment should be performed after installation.

Features:

• Vehicle-specific Stage 4 suspension system for 2005-2023 Toyota Tacoma

• 2.5 Series front coilovers with remote reservoirs for improved cooling and consistent performance

• Adjustable front lift from 0 to 3.5 inches on 2005-2015 models

• Adjustable front lift from 0 to 2.75 inches on 2016-2023 models

• Add-A-Leaf Kit replaces factory overload leaves for a more compliant ride and 1.5 inches of rear lift

• Tubular upper control arms provide added strength, durability, alignment correction, and component clearance

• Patented serviceable ICON Delta Joint helps eliminate suspension bind

• Vehicle-specific tuned front and rear shocks for improved damping and control

• Corrosion-resistant CAD-plated coilover shock bodies with 7/8-inch shafts

• 2.0 Aluminum Series remote-reservoir rear shocks with 5/8-inch shafts

• FK rod end bearings provide extended service life and minimal deflection

• Bolt-on installation requires no cutting or welding

• 6061 aircraft-grade aluminum CNC-machined components

• Extended-travel coilovers increase wheel travel and improve ride quality over stock

Compatible With
2005 Toyota Tacoma
2006 Toyota Tacoma
2007 Toyota Tacoma
2008 Toyota Tacoma
2009 Toyota Tacoma
2010 Toyota Tacoma
2011 Toyota Tacoma
2012 Toyota Tacoma
2013 Toyota Tacoma
2014 Toyota Tacoma
2015 Toyota Tacoma
2016 Toyota Tacoma
2017 Toyota Tacoma
2018 Toyota Tacoma
2019 Toyota Tacoma
2020 Toyota Tacoma
2021 Toyota Tacoma
2022 Toyota Tacoma
2023 Toyota Tacoma
