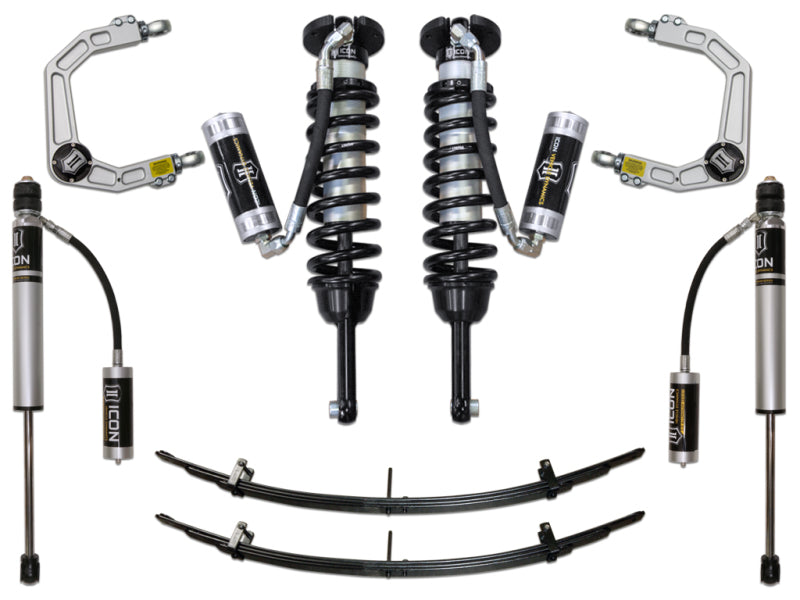

ICON K53004 Stage 4 Suspension System with Billet UCAs for 2005-2023 Toyota Tacoma

ICON Vehicle Dynamics Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 4 system includes vehicle-specific tuned 2.5” Extended Travel coilover shocks featuring remote reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3.5” of lift on 2005-2015 or 0-2.75” on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. When used with an ICON upper control arm, these extended travel coilovers add increased droop travel to the front suspension. The included ICON billet aluminum upper control arm kit is designed to improve the overall performance of the Toyota Tacoma with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Additionally, replacing the OE ball joint with the serviceable ICON Delta Joint allows for full bump and droop travel of the front suspension while eliminating bind. The included rear Add-A-Leaf Kit Installs in place of the factory overload leaves and effectively lowers the rear spring rate by approximately 10% for a more compliant ride while also providing 1.5" of rear lift over stock. ICON 2.0 Aluminum Series Remote Reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2005-2023 Toyota Tacoma Stage 4 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt. ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road. TECH NOTE: 2017-2023 Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock and rear lift height of 1" over stock

• 2.5 Series front coilovers with remote reservoirs for improved shock cooling and consistent performance under hard use
• Adjustable coilovers provide up to 3.5" of front lift height on 2005-2015 models and up to 2.75" on 2016-2023 models
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• Add-A-Leaf Kit replaces OE overload leaf spring for more compliant ride quality and 1.5" of rear lift
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• 2.0 Aluminum Series remote reservoir rear shocks with 5/8" shafts
• FK Rod End bearings for extended longevity and minimal deflection
• Bolt-on system means no cutting or welding necessary for install
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint
• Extended Travel coilovers offer maximum wheel travel
• 6061 aircraft grade aluminum CNC machined components
• Increased wheel travel and ride quality over stock

Upgrade your Toyota Tacoma with the ICON Vehicle Dynamics K53004 Stage 4 Suspension System, engineered for drivers who demand improved control, wheel travel, and ride quality on and off the road. This complete suspension package combines vehicle-specific tuned shocks, height-adjustable extended-travel coilovers, billet aluminum upper control arms, and a rear Add-A-Leaf Kit to enhance suspension performance while maintaining a practical bolt-on installation. The system fits 2005-2023 Toyota Tacoma models, with application-specific lift ranges based on model year and configuration.
The ICON 2.5 Series front coilovers feature remote reservoirs for improved cooling and consistent damping during demanding use. Adjustable ride height provides up to 3.5 inches of front lift on 2005-2015 models and up to 2.75 inches on 2016-2023 models, allowing room for larger wheel and tire combinations. On 2017-2023 Tacoma TRD Pro models, the front lift range is 0-1.25 inches over stock. The included billet aluminum upper control arms correct front-end geometry and provide on-vehicle caster and camber adjustment. Their patented ICON Delta Joint supports full bump and droop travel while reducing bind.
At the rear, the Add-A-Leaf Kit replaces the factory overload leaves to lower the rear spring rate by approximately 10 percent for a more compliant ride while adding 1.5 inches of rear lift over stock. ICON 2.0 Aluminum Series remote reservoir rear shocks use vehicle-specific valving to balance front and rear suspension performance, and TRD Pro models receive approximately 1 inch of rear lift over stock. Corrosion-resistant shock bodies, aircraft-grade aluminum components, FK rod end bearings, and serviceable suspension components provide durability for street and off-road use. The bolt-on design requires no cutting or welding.

Features:

• 2.5 Series front coilovers with remote reservoirs for improved shock cooling and consistent performance

• Adjustable front lift up to 3.5 inches on 2005-2015 Tacoma models and up to 2.75 inches on 2016-2023 models

• Billet aluminum upper control arms with on-vehicle caster and camber adjustment

• Patented ICON Delta Joint for full suspension travel with reduced bind

• Rear Add-A-Leaf Kit replaces factory overload leaves and provides 1.5 inches of rear lift

• Vehicle-specific tuned front and rear shocks for improved damping and control

• Corrosion-resistant CAD-plated coilover bodies with 7/8-inch shafts

• 2.0 Aluminum Series remote reservoir rear shocks with 5/8-inch shafts

• FK rod end bearings for extended service life and reduced deflection

• Bolt-on installation requires no cutting or welding

• 6061 aircraft-grade aluminum CNC-machined components

• Extended-travel design increases wheel travel and improves ride quality over stock

Compatible With
2005 Toyota Tacoma
2006 Toyota Tacoma
2007 Toyota Tacoma
2008 Toyota Tacoma
2009 Toyota Tacoma
2010 Toyota Tacoma
2011 Toyota Tacoma
2012 Toyota Tacoma
2013 Toyota Tacoma
2014 Toyota Tacoma
2015 Toyota Tacoma
2016 Toyota Tacoma
2017 Toyota Tacoma
2018 Toyota Tacoma
2019 Toyota Tacoma
2020 Toyota Tacoma
2021 Toyota Tacoma
2022 Toyota Tacoma
2023 Toyota Tacoma
