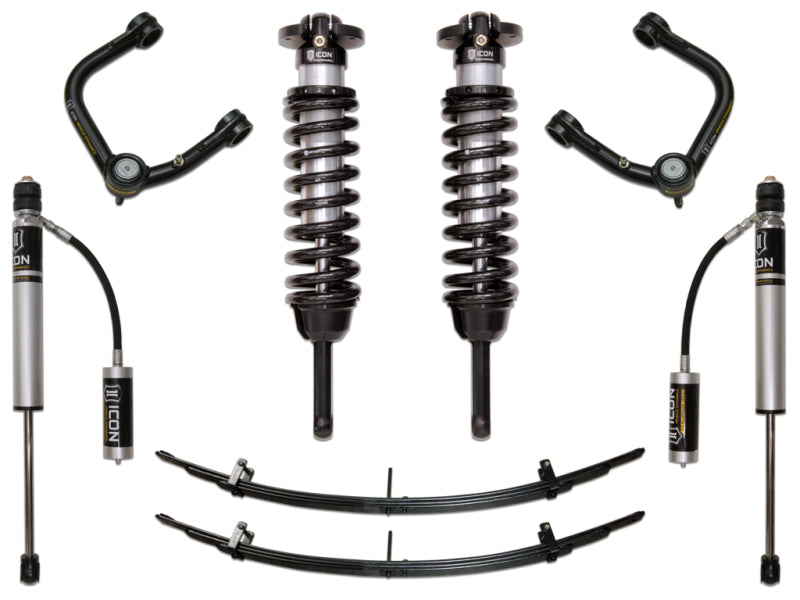

ICON K53003T Stage 3 Suspension System with Tubular UCAs for 2005-2023 Toyota Tacoma

ICON Vehicle Dynamics Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 3 system includes vehicle-specific tuned 2.5” Extended Travel coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3.5” of lift on 2005-2015 or 0-2.75” on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. When used with an ICON upper control arm, these extended travel coilovers add increased droop travel to the front suspension. The included ICON tubular upper control arm kit is designed to improve the overall performance of the Toyota Tacoma with corrected front-end geometry, built in additional caster, and improved suspension component clearance. Additionally, replacing the OE ball joint with the serviceable ICON Delta Joint allows for full bump and droop travel of the front suspension while eliminating bind. The included rear Add-A-Leaf Kit Installs in place of the factory overload leaves and effectively lowers the rear spring rate by approximately 10% for a more compliant ride while also providing 1.5" of rear lift over stock. ICON 2.0 Aluminum Series Remote Reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2005-2023 Toyota Tacoma Stage 3 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt. ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road. TECH NOTE: 2017-2023 Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock and rear lift height of 1" over stock

• Adjustable coilovers provide up to 3.5" of front lift height on 2005-2015 models and up to 2.75" on 2016-2023 models
• Add-A-Leaf Kit replaces OE overload leaf spring for more compliant ride quality and 1.5" of rear lift
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• 2.0 Aluminum Series remote reservoir rear shocks with 5/8" shafts
• FK Rod End bearings for extended longevity and minimal deflection
• Bolt-on system means no cutting or welding necessary for install
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint
• 6061 aircraft grade aluminum CNC machined components
• Extended Travel coilovers offer maximum wheel travel
• Increased wheel travel and ride quality over stock

The ICON Vehicle Dynamics K53003T Stage 3 Suspension System is engineered for Toyota Tacoma drivers seeking improved control, wheel travel, and ride quality on and off the road. Designed for 2005-2023 Tacoma models, this complete suspension package combines vehicle-specific tuned shocks, height-adjustable extended-travel coilovers, tubular upper control arms, and a rear Add-A-Leaf Kit for a balanced performance upgrade. The system is designed to install without cutting or welding, making it a practical bolt-on solution for capable street and off-road builds.
The front suspension includes ICON 2.5-inch extended-travel coilover shocks with internal reservoirs for improved cooling and consistent damping during demanding use. ICON-engineered coil springs provide a controlled suspension feel throughout the available travel, while adjustable ride height supports up to 3.5 inches of front lift on 2005-2015 models and up to 2.75 inches on 2016-2023 models. For 2017-2023 Tacoma TRD Pro models, the front lift range is 0-1.25 inches over stock. The included tubular upper control arms improve front-end geometry, add caster, increase component clearance, and use serviceable ICON Delta Joints to help maintain full bump and droop travel without binding.
At the rear, the Add-A-Leaf Kit replaces the factory overload leaves to reduce the rear spring rate by approximately 10 percent for a more compliant ride while providing 1.5 inches of rear lift over stock. ICON 2.0 Aluminum Series remote-reservoir rear shocks use vehicle-specific valving to balance front and rear performance. For 2017-2023 Tacoma TRD Pro models, the rear lift is 1 inch over stock. The ICON K53003T system uses corrosion-resistant CAD-plated shock bodies, durable aluminum components, FK rod-end bearings, and robust 6061 aircraft-grade aluminum CNC-machined parts for long-term performance and dependable suspension control.

Features:

• Adjustable coilovers provide up to 3.5 inches of front lift on 2005-2015 Tacoma models and up to 2.75 inches on 2016-2023 models

• Extended-travel coilovers increase front wheel travel and improve ride quality over stock

• Add-A-Leaf Kit replaces the factory overload leaf springs for a more compliant ride and 1.5 inches of rear lift

• Tubular upper control arms improve strength, durability, alignment correction, and suspension clearance

• Vehicle-specific front and rear shock valving provides improved damping and vehicle control

• Internal-reservoir front coilover shocks provide enhanced cooling during demanding driving

• Corrosion-resistant CAD-plated coilover shock bodies with durable 7/8-inch shafts

• ICON 2.0 Aluminum Series remote-reservoir rear shocks with 5/8-inch shafts

• FK rod-end bearings provide extended service life and minimal deflection

• Bolt-on installation requires no cutting or welding

• Tubular upper control arms feature the patented ICON Delta Joint

• 6061 aircraft-grade aluminum CNC-machined components provide strength and durability

Compatible With
2005 Toyota Tacoma
2006 Toyota Tacoma
2007 Toyota Tacoma
2008 Toyota Tacoma
2009 Toyota Tacoma
2010 Toyota Tacoma
2011 Toyota Tacoma
2012 Toyota Tacoma
2013 Toyota Tacoma
2014 Toyota Tacoma
2015 Toyota Tacoma
2016 Toyota Tacoma
2017 Toyota Tacoma
2018 Toyota Tacoma
2019 Toyota Tacoma
2020 Toyota Tacoma
2021 Toyota Tacoma
2022 Toyota Tacoma
2023 Toyota Tacoma
