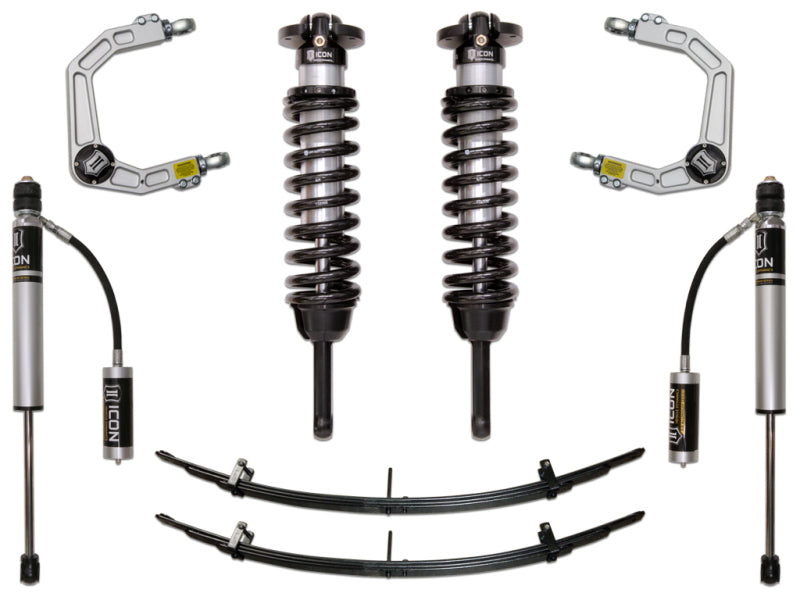

ICON K53003 Stage 3 Suspension System with Billet UCAs for 2005-2023 Toyota Tacoma

ICON Vehicle Dynamics Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 3 system includes vehicle-specific tuned 2.5” Extended Travel coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3.5” of lift on 2005-2015 or 0-2.75” on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. When used with an ICON upper control arm, these extended travel coilovers add increased droop travel to the front suspension. The included ICON billet aluminum upper control arm kit is designed to improve the overall performance of the Toyota Tacoma with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Additionally, replacing the OE ball joint with the serviceable ICON Delta Joint allows for full bump and droop travel of the front suspension while eliminating bind. The included rear Add-A-Leaf Kit Installs in place of the factory overload leaves and effectively lowers the rear spring rate by approximately 10% for a more compliant ride while also providing 1.5" of rear lift over stock. ICON 2.0 Aluminum Series Remote Reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2005-2023 Toyota Tacoma Stage 3 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt. ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road. TECH NOTE: 2017-2023 Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock and rear lift height of 1" over stock

• Adjustable coilovers provide up to 3.5" of front lift height on 2005-2015 models and up to 2.75" on 2016-2023 models
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• Add-A-Leaf Kit replaces OE overload leaf spring for more compliant ride quality and 1.5" of rear lift
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• 2.0 Aluminum Series remote reservoir rear shocks with 5/8" shafts
• FK Rod End bearings for extended longevity and minimal deflection
• Bolt-on system means no cutting or welding necessary for install
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint
• 6061 aircraft grade aluminum CNC machined components
• Extended Travel coilovers offer maximum wheel travel
• Increased wheel travel and ride quality over stock

The ICON Vehicle Dynamics K53003 Stage 3 Suspension System is engineered for Toyota Tacoma drivers seeking improved control, increased wheel travel, and enhanced ride quality on and off the road. This complete suspension package combines vehicle-specific tuned shocks, height-adjustable extended-travel coilovers, billet aluminum upper control arms, and a rear Add-A-Leaf Kit to improve suspension performance while maintaining practical installation and drivability. The system fits 2005-2023 Toyota Tacoma models, with application-specific front lift adjustment ranges based on model year.
The front suspension includes ICON 2.5-inch extended-travel coilover shocks with internal reservoirs for improved heat management and consistent damping during demanding use. ICON-engineered coil springs support a controlled ride through the suspension’s travel, while adjustable coilovers allow up to 3.5 inches of front lift on 2005-2015 models and up to 2.75 inches on 2016-2023 models. For 2017-2023 Tacoma TRD Pro models, the front lift range is 0-1.25 inches over stock. The included billet aluminum upper control arms correct front-end geometry and provide on-vehicle caster and camber adjustment. Their serviceable ICON Delta Joint helps maintain full bump and droop travel while reducing bind.
At the rear, the Add-A-Leaf Kit replaces the factory overload leaves to reduce the rear spring rate by approximately 10 percent for a more compliant ride while adding 1.5 inches of rear lift over stock. Vehicle-specific tuned ICON 2.0 Aluminum Series remote reservoir rear shocks balance front-to-rear damping for improved stability and control. The bolt-on design requires no cutting or welding, and CNC-machined 6061 aircraft-grade aluminum components, corrosion-resistant CAD-plated shock bodies, FK rod end bearings, and durable shock shafts support long-term performance. For 2017-2023 Tacoma TRD Pro models, the rear lift is 1 inch over stock.

Features:

• Adjustable coilovers provide up to 3.5 inches of front lift on 2005-2015 Toyota Tacoma models and up to 2.75 inches on 2016-2023 models

• Billet aluminum upper control arms improve strength, durability, front-end geometry, and on-vehicle caster and camber adjustment

• Serviceable ICON Delta Joint supports full suspension travel while reducing bind

• Rear Add-A-Leaf Kit replaces the factory overload leaves for a more compliant ride and 1.5 inches of rear lift

• Vehicle-specific front and rear shock valving improves damping, ride quality, and vehicle control

• 2.5-inch extended-travel front coilovers feature internal reservoirs and corrosion-resistant CAD-plated bodies

• ICON 2.0 Aluminum Series remote reservoir rear shocks feature durable aluminum construction

• FK rod end bearings provide extended service life and minimal deflection

• Bolt-on installation requires no cutting or welding

• CNC-machined 6061 aircraft-grade aluminum components provide strength and durability

• Extended-travel coilovers increase wheel travel over the factory suspension

• Designed for 2005-2023 Toyota Tacoma models

Compatible With
2005 Toyota Tacoma
2006 Toyota Tacoma
2007 Toyota Tacoma
2008 Toyota Tacoma
2009 Toyota Tacoma
2010 Toyota Tacoma
2011 Toyota Tacoma
2012 Toyota Tacoma
2013 Toyota Tacoma
2014 Toyota Tacoma
2015 Toyota Tacoma
2016 Toyota Tacoma
2017 Toyota Tacoma
2018 Toyota Tacoma
2019 Toyota Tacoma
2020 Toyota Tacoma
2021 Toyota Tacoma
2022 Toyota Tacoma
2023 Toyota Tacoma
