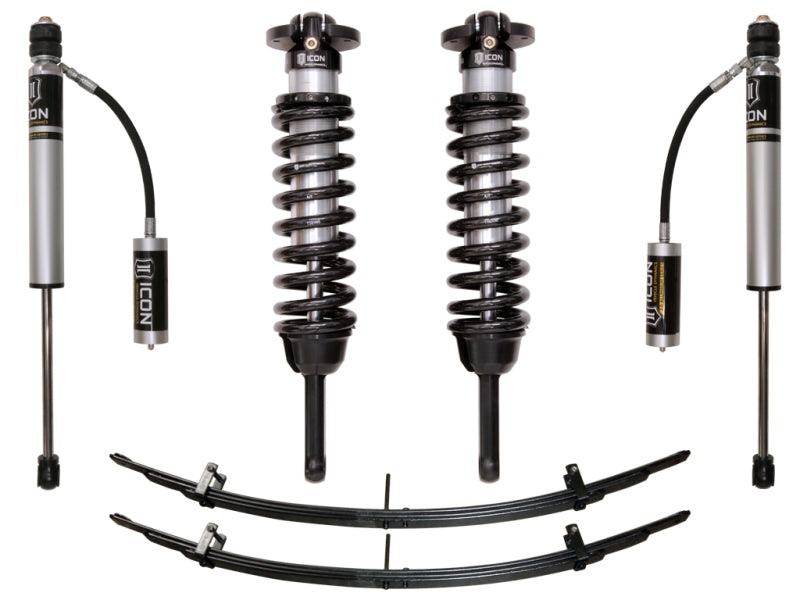

ICON K53002 Stage 2 Suspension System for 2005-2023 Toyota Tacoma

ICON Vehicle Dynamics Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 2 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3.5” of lift on 2005-2015 or 0-2.75” on 2016-2023 models allowing the use of larger, more aggressive wheel and tire combinations. Remote reservoir ICON 2.0 Aluminum Series rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The included rear Add-A-Leaf Kit Installs in place of the factory overload leaves and effectively lowers the rear spring rate by approximately 10% for a more compliant ride while also providing 1.5" of rear lift over stock. The ICON Vehicle Dynamics 2005-2023 Toyota Tacoma Stage 2 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt. ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road. TECH NOTE: 2017-2023 Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock and rear lift height of 1" over stock

• Adjustable coilovers provide up to 3.5" of front lift height on 2005-2015 models and up to 2.75" on 2016-2023 models
• Add-A-Leaf Kit replaces OE overload leaf spring for more compliant ride quality and 1.5" of rear lift
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• FK Rod End bearings for extended longevity and minimal deflection
• 2.0 Aluminum Series remote reservoir rear shocks with 5/8" shafts
• Bolt-on system means no cutting or welding necessary for install
• 6061 aircraft grade aluminum CNC machined components
• Increased wheel travel and ride quality over stock
• Simple, bolt-on installation
• ICON engineered coil springs

The ICON Vehicle Dynamics K53002 Stage 2 Suspension System is engineered for Toyota Tacoma drivers who want improved wheel travel, damping performance, and vehicle control on the street and off-road. This complete suspension package combines vehicle-specific tuned front coilovers, ICON-engineered coil springs, remote-reservoir rear shocks, and a rear Add-A-Leaf Kit to improve ride quality and handling across a wide range of terrain. The system is designed for select 2005-2023 Toyota Tacoma applications and provides a balanced performance upgrade over the factory suspension.
The height-adjustable front coilovers provide up to 3.5 inches of lift on 2005-2015 Tacoma models and up to 2.75 inches on 2016-2023 models, allowing additional clearance for larger wheel and tire combinations. For 2017-2023 Tacoma TRD Pro models, the available front lift range is 0-1.25 inches over stock, with approximately 1 inch of rear lift. The coilover shocks feature internal reservoirs for improved heat management, corrosion-resistant CAD-plated bodies, 7/8-inch shafts, and durable FK rod-end bearings designed to minimize deflection.
At the rear, ICON 2.0 Aluminum Series remote-reservoir shocks use vehicle-specific valving to maintain consistent performance from front to rear. The included Add-A-Leaf Kit replaces the factory overload leaves, lowers the rear spring rate by approximately 10 percent for a more compliant ride, and adds 1.5 inches of rear lift over stock. CNC-machined 6061 aircraft-grade aluminum components support long-term durability, while the bolt-on design requires no cutting or welding for installation. The ICON K53002 is a practical suspension upgrade for Tacoma owners seeking enhanced control, ride quality, and off-road capability.

Features:

• Adjustable front coilovers provide up to 3.5 inches of lift on 2005-2015 Tacoma models and up to 2.75 inches on 2016-2023 models

• Rear Add-A-Leaf Kit replaces the factory overload leaves, improves ride compliance, and provides 1.5 inches of rear lift

• Vehicle-specific front and rear shock valving delivers improved damping and vehicle control

• Coilover shocks feature corrosion-resistant CAD-plated bodies and 7/8-inch shafts

• FK rod-end bearings provide extended service life and reduced deflection

• ICON 2.0 Aluminum Series remote-reservoir rear shocks feature 5/8-inch shafts

• Bolt-on installation requires no cutting or welding

• 6061 aircraft-grade aluminum CNC-machined components provide durable performance

• Increases wheel travel and ride quality over the factory suspension

• ICON-engineered coil springs improve suspension feel throughout the range of travel

Compatible With
2005 Toyota Tacoma
2006 Toyota Tacoma
2007 Toyota Tacoma
2008 Toyota Tacoma
2009 Toyota Tacoma
2010 Toyota Tacoma
2011 Toyota Tacoma
2012 Toyota Tacoma
2013 Toyota Tacoma
2014 Toyota Tacoma
2015 Toyota Tacoma
2016 Toyota Tacoma
2017 Toyota Tacoma
2018 Toyota Tacoma
2019 Toyota Tacoma
2020 Toyota Tacoma
2021 Toyota Tacoma
2022 Toyota Tacoma
2023 Toyota Tacoma
