ICON K22107 2.5-Inch Stage 7 Suspension System with Billet Links for 2020+ Jeep Gladiator JT

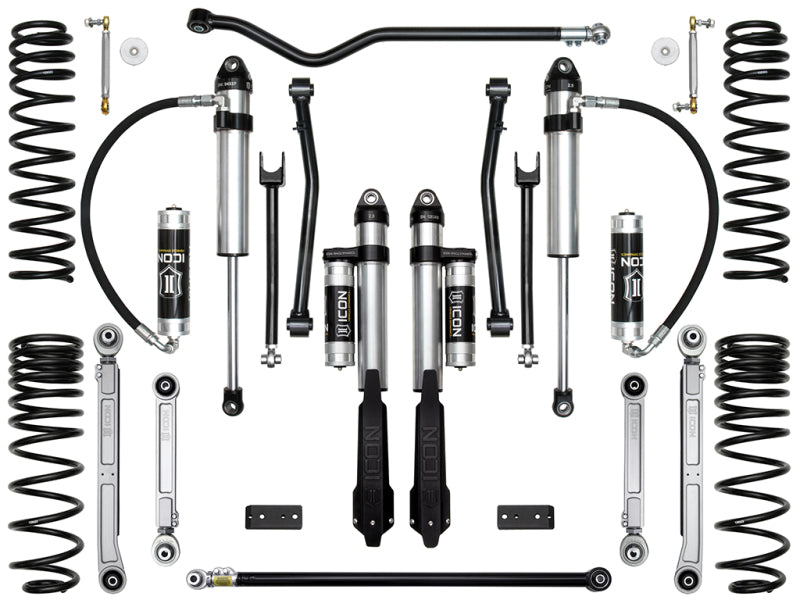

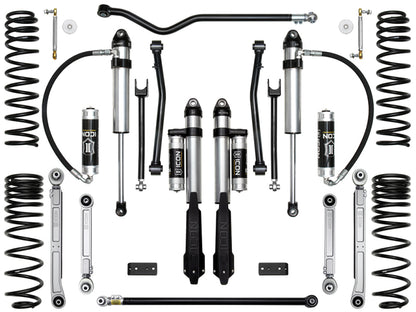

The Stage 7 ICON 2.5” Suspension System for the Jeep Gladiator is the ideal setup for drastically improving off-road performance and overall ride quality for the application that will see frequent heavy off-road use. This complete suspension system features ICON’s proven 2.5 Aluminum Series shocks, 2.5” lift dual-rate front coil springs, tubular steel fixed lower and adjustable upper front links, billet front sway bar links, a triple-rate rear coil spring kit, billet aluminum adjustable upper and lower rear links, a rear sway bar relocation kit, front and rear adjustable track bars, and all necessary hardware for install. This system provides an increase of over 30% front and 20% rear wheel travel and was designed around the use of a 35” tire. For those looking to run a 37” tire this can be achieved with the ICON Jeep JT Bump Stop Spacer Kit (Part #22071). 2020-UP JEEP GLADIATOR JT 2.5" STAGE 7 SUSPENSION SYSTEM WITH BILLET LINKS TECH NOTE: ICON’s advertised lift heights are based around a typical Jeep JT build which usually includes added weight of accessories such as heavier front bumper/winch. Lift heights may be higher than advertised if installed on a stock weighted vehicle.

• 2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• Rear billet upper and lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
• “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
• Front upper and lower links included for caster angle correction and improved front end articulation
• Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates
• Dual rate front coil springs with lifetime guarantee against sagging/breakage
• Front and rear track bars ensure proper alignment and improved articulation
• Fits 35" tires (37" with extended bump stop spacer kit)
• Improves on and off-road ride quality over stock
• Adjustable, billet aluminum front sway bar links
• 100% bolt-on system makes for an easy install
• 33% front, 23% rear increase in wheel travel
• 2.5" lift height

Upgrade your 2020 and newer Jeep Gladiator JT with the ICON K22107 Stage 7 Suspension System, engineered for demanding off-road use and improved everyday ride quality. This complete 2.5-inch suspension system includes ICON 2.5 Aluminum Series shocks, dual-rate front coil springs, triple-rate rear coil springs, adjustable track bars, front and rear control links, sway bar links, a rear sway bar relocation kit, and installation hardware. The system is designed around 35-inch tires and can accommodate 37-inch tires when used with the ICON bump stop spacer kit, Part 22071.
The ICON 2.5 Aluminum Series shocks use one-piece, impact-extruded aluminum cylinders for strong corrosion resistance, consistent appearance, and dependable performance in harsh environments. Front dual-rate coil springs provide controlled ride quality and include a lifetime guarantee against sagging or breakage. Triple-rate rear coil springs are tuned for balanced droop, ride, and overload performance. Together, these components help improve handling, articulation, and ride control both on and off the trail.
Billet aluminum rear upper and lower links allow on-vehicle pinion angle adjustment while improving rear-end articulation. Tubular steel front links help correct caster angle and enhance front suspension movement, while adjustable front sway bar links support proper suspension geometry. Front and rear adjustable track bars maintain axle alignment and improve articulation. ICON developed and validated this system through rigorous “ICON 1K” testing for strength, durability, tuning, and performance. The complete design is 100% bolt-on for a straightforward installation. Advertised lift height is based on a typical Gladiator equipped with additional accessory weight; lift may be greater on a stock-weight vehicle.

Features:

• 2.5-inch lift suspension system for 2020+ Jeep Gladiator JT

• ICON 2.5 Aluminum Series shocks with one-piece impact-extruded aluminum cylinders

• Dual-rate front coil springs with a lifetime guarantee against sagging or breakage

• Triple-rate rear coil springs engineered for droop, ride, and overload performance

• Billet aluminum adjustable rear upper and lower links for pinion angle adjustment

• Tubular steel front upper and lower links for caster correction and improved articulation

• Front and rear adjustable track bars help maintain proper axle alignment

• Adjustable billet aluminum front sway bar links

• Rear sway bar relocation kit included

• Designed for 35-inch tires; supports 37-inch tires with ICON Part 22071 bump stop spacer kit

• Provides approximately 33% more front and 23% more rear wheel travel

• 100% bolt-on installation with required hardware included

• ICON 1K tested for off-road performance, strength, and durability

Compatible With
2020 Jeep Gladiator
2021 Jeep Gladiator
2022 Jeep Gladiator
