ICON K22105 Stage 5 2.5-Inch Suspension System with Billet Links for 2020+ Jeep Gladiator JT

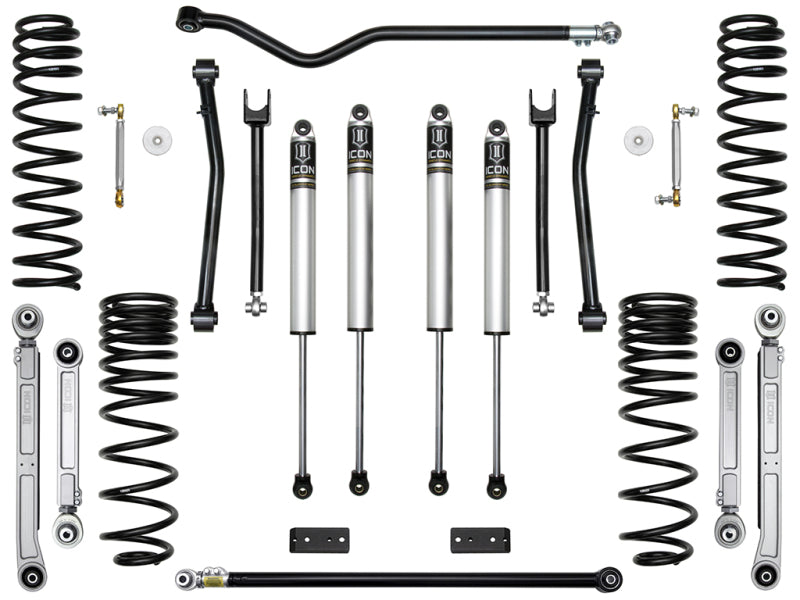

The Stage 5 ICON 2.5” Suspension System for the Jeep Gladiator is the ideal setup for significantly improving off-road performance and overall ride quality for the application that will see frequent moderate off-road use. This complete suspension system features 2.0 Aluminum Series shocks, 2.5” lift dual-rate front coil springs, tubular steel fixed lower and adjustable upper front links, billet front sway bar links, a triple-rate rear coil spring kit, billet aluminum adjustable upper and lower rear links, a rear sway bar relocation kit, front and rear adjustable track bars, and all necessary hardware for install. This system provides an increase of over 30% front and 20% rear wheel travel and was designed around the use of a 35” tire. For those looking to run a 37” tire this can be achieved with the ICON Jeep JT Bump Stop Spacer Kit (Part #22071). 2020-UP JEEP GLADIATOR JT 2.5" STAGE 5 SUSPENSION SYSTEM WITH BILLET LINKS TECH NOTE: ICON’s advertised lift heights are based around a typical Jeep JT build which usually includes added weight of accessories such as heavier front bumper/winch. Lift heights may be higher than advertised if installed on a stock weighted vehicle.

• Rear billet upper and lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
• “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
• Front upper and lower links included for caster angle correction and improved front end articulation
• Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates
• Dual rate front coil springs with lifetime guarantee against sagging/breakage
• Front and rear track bars ensure proper alignment and improved articulation
• 2.0 Aluminum Series shocks with vehicle specific valving
• Fits 35" tires (37" with extended bump stop spacer kit)
• Adjustable, billet aluminum front sway bar links
• Improves on and off-road ride quality over stock
• 100% bolt-on system makes for an easy install
• 33% front, 23% rear increase in wheel travel
• 2.5" lift height

Upgrade your 2020 and newer Jeep Gladiator JT with the ICON K22105 Stage 5 2.5-inch Suspension System, engineered to improve off-road capability, articulation, and ride quality. Designed for Gladiators that see frequent moderate off-road use, this complete, 100% bolt-on system includes ICON 2.0 Aluminum Series shocks with vehicle-specific valving, dual-rate front coil springs, triple-rate rear coil springs, adjustable links, track bars, sway bar links, a rear sway bar relocation kit, and required installation hardware. The system is designed around 35-inch tires and can accommodate 37-inch tires when paired with the ICON bump stop spacer kit, part number 22071.
The ICON K22105 system uses tubular steel front lower and adjustable upper links for caster correction and improved front-end articulation. Billet aluminum rear upper and lower links allow on-vehicle pinion angle adjustment while supporting increased rear-end articulation. Adjustable front and rear track bars help maintain proper axle alignment, and billet front sway bar links complement the lifted suspension setup. ICON dual-rate front springs are backed by a lifetime guarantee against sagging or breakage, while the triple-rate rear springs are engineered for balanced droop, ride, and overload performance.
With ICON 1K testing validating tune, performance, strength, and durability under demanding off-road conditions, this Stage 5 system delivers a substantial improvement over the factory suspension. It provides approximately 33% more front wheel travel and 23% more rear wheel travel, along with a 2.5-inch lift height. ICON lift measurements are based on a typical Jeep Gladiator build with added accessory weight, such as a heavier front bumper or winch, so lift height may vary on a stock-weight vehicle. Verify vehicle configuration and installation requirements before beginning work.

Features:

• 2.5-inch lift suspension system for 2020 and newer Jeep Gladiator JT models

• ICON 2.0 Aluminum Series shocks with vehicle-specific valving

• Dual-rate front coil springs with a lifetime guarantee against sagging or breakage

• Triple-rate rear coil springs engineered for droop, ride, and overload performance

• Front tubular steel lower and adjustable upper links for caster correction and articulation

• Billet aluminum rear upper and lower links with on-vehicle pinion angle adjustment

• Adjustable front and rear track bars for proper alignment and improved articulation

• Adjustable billet aluminum front sway bar links

• Rear sway bar relocation kit included

• Designed for 35-inch tires; supports 37-inch tires with ICON bump stop spacer kit 22071

• Approximately 33% increase in front wheel travel and 23% increase in rear wheel travel

• ICON 1K tested for off-road tune, performance, strength, and durability

• Improves on-road and off-road ride quality over stock

• 100% bolt-on installation with required hardware included

Compatible With
2020 Jeep Gladiator
2021 Jeep Gladiator
2022 Jeep Gladiator
