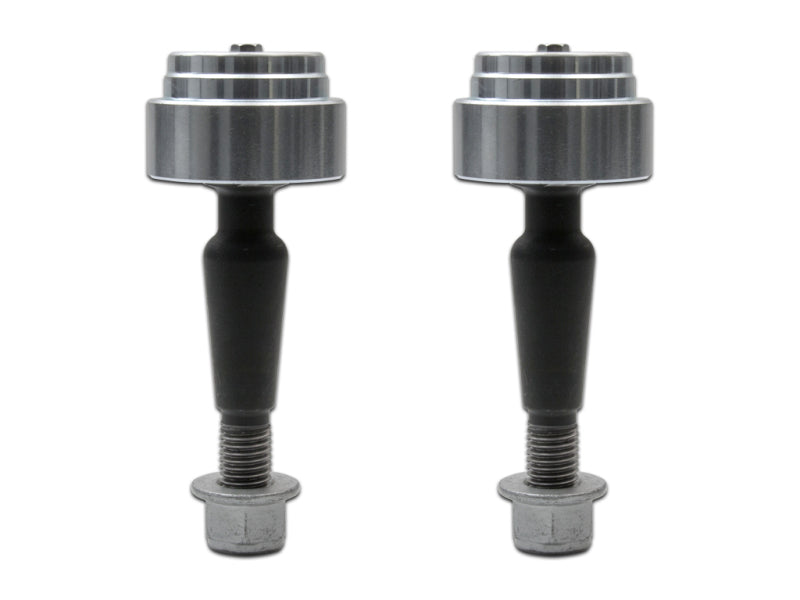

ICON 614550 Delta Joint Kit for Toyota Tacoma, Tundra, Nissan Titan XD and GM 1500

ICON’s Delta Joint is a heavy-duty high-angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint’s zinc plated housing provides the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while also allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and capable of greater angularity than a typical ball joint. ICON’s Delta Joint is more robust than a uniball and capable of greater angularity than a typical ball joint. Its metal-on-metal construction and a greaseable design increases longevity while also allowing for noise-free operation. APPLICATION NOTE #351: Requires ICON front upper control arms. Will not fit other brands of UCAs.

• 5 Year ICON Limited Warranty (When used with ICON Vehicle Dynamics suspension components, visit www.iconvehicledynamics.com/deltajoint for more info)

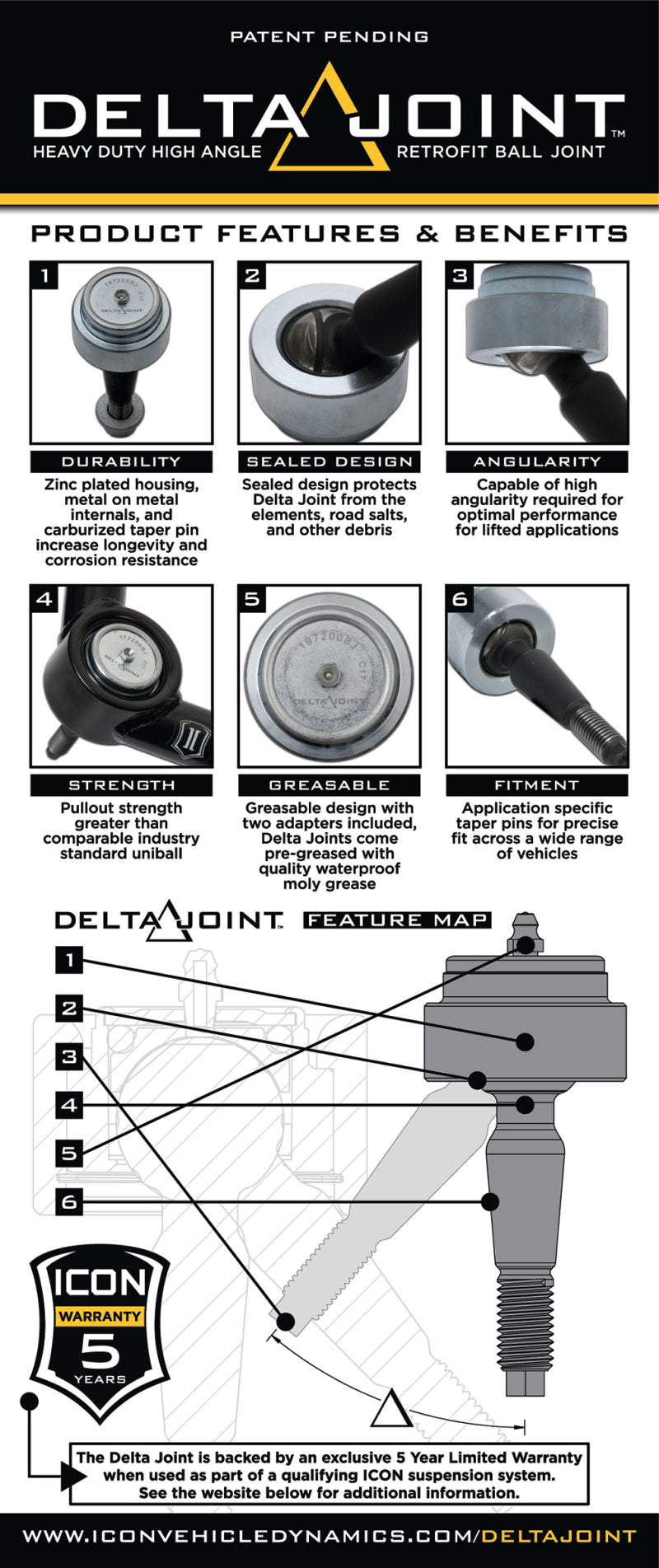

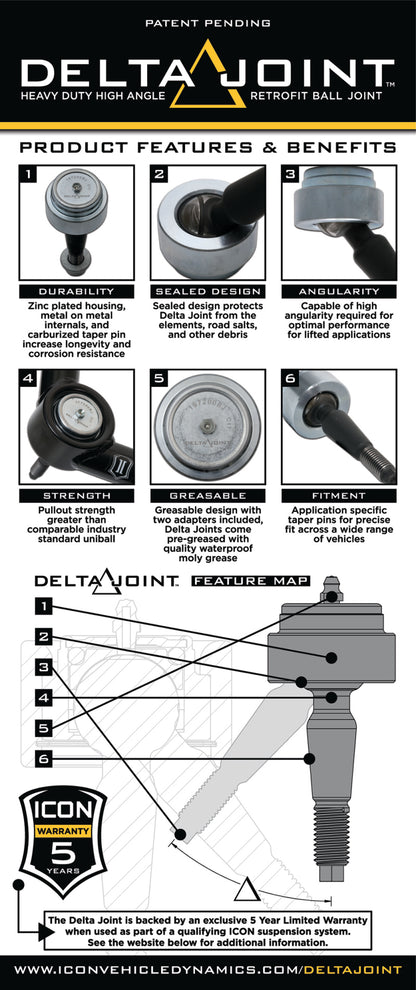

• Patented Delta Joint (U.S. Pat. 10,731,700) combines the durability of a ball joint with the performance characteristics of a traditional uniball
• Carburized taper pin provides increased corrosion resistance, decreased internal friction, and less chance of thread galling on assembly
• Sealed design and zinc plated housing protects Delta Joint from the elements, road salts, and other debris

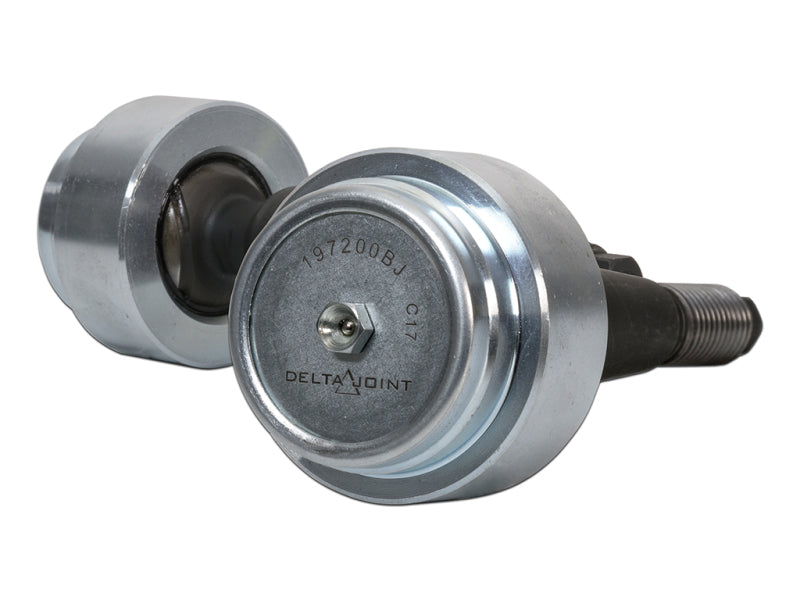

• Metal on metal internals and a greasable design for maximum longevity and noise-free operation
• Application specific taper pins for precise fit across a wide range of vehicles
• Pullout strength greater than comparable industry standard uniball
• Capable of high angularity required for lifted applications

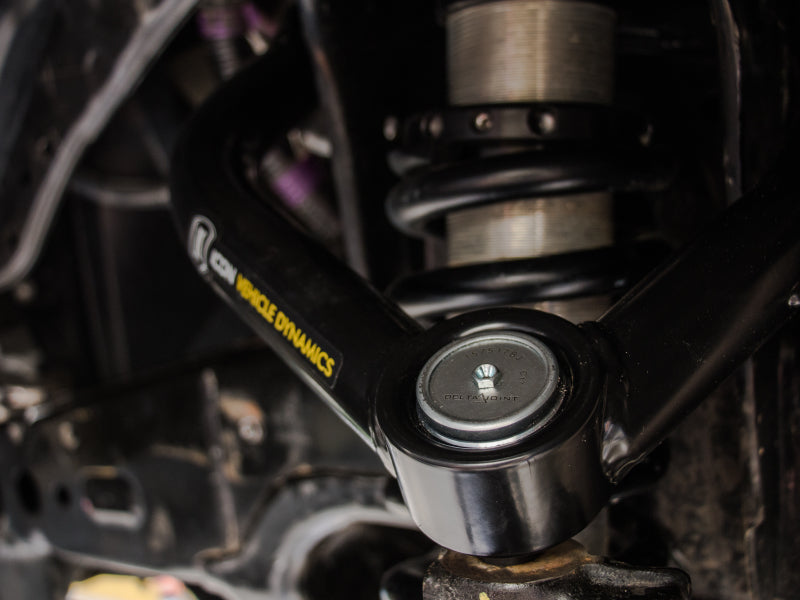

The ICON 614550 Delta Joint Kit is a heavy-duty, high-angle replacement joint engineered for use with ICON front upper control arms. It combines the durability and sealed protection of a traditional ball joint with the articulation and performance characteristics of a uniball, making it well suited for lifted trucks and daily-driven applications. The patented ICON Delta Joint delivers greater angularity than a typical ball joint while providing improved protection against road debris, moisture, and corrosion compared with an exposed uniball design.
A zinc-plated housing provides corrosion resistance, while the sealed construction helps keep road salts and other contaminants away from the internal components. Metal-on-metal internals support long-term durability, and the greaseable design promotes smooth, quiet operation while allowing routine service. The carburized taper pin helps reduce internal friction, resist corrosion, and minimize the possibility of thread galling during assembly. Application-specific taper pins provide a precise fit for compatible vehicle platforms, while the joint’s pullout strength exceeds that of comparable industry-standard uniball designs.
This ICON Delta Joint Kit is compatible with select 2005 and newer Toyota Tacoma models, 2007 and newer Toyota Tundra models, 2016 and newer Nissan Titan XD models, and 2019 and newer GM 1500 models. Application Note #351: This product requires ICON front upper control arms and will not fit upper control arms from other brands. The kit is backed by a 5-year ICON Limited Warranty when used with ICON Vehicle Dynamics suspension components. Refer to ICON Vehicle Dynamics warranty information for complete terms and coverage details.

Features:

• Patented Delta Joint combines ball joint durability with uniball-style articulation

• High-angle design supports the additional suspension travel required for lifted applications

• Zinc-plated housing and sealed construction help protect against corrosion, road salt, and debris

• Carburized taper pin improves corrosion resistance and reduces internal friction

• Metal-on-metal internal construction supports extended service life

• Greaseable design promotes smooth, quiet operation and allows routine maintenance

• Application-specific taper pins provide a precise fit across compatible vehicles

• Pullout strength exceeds comparable industry-standard uniball designs

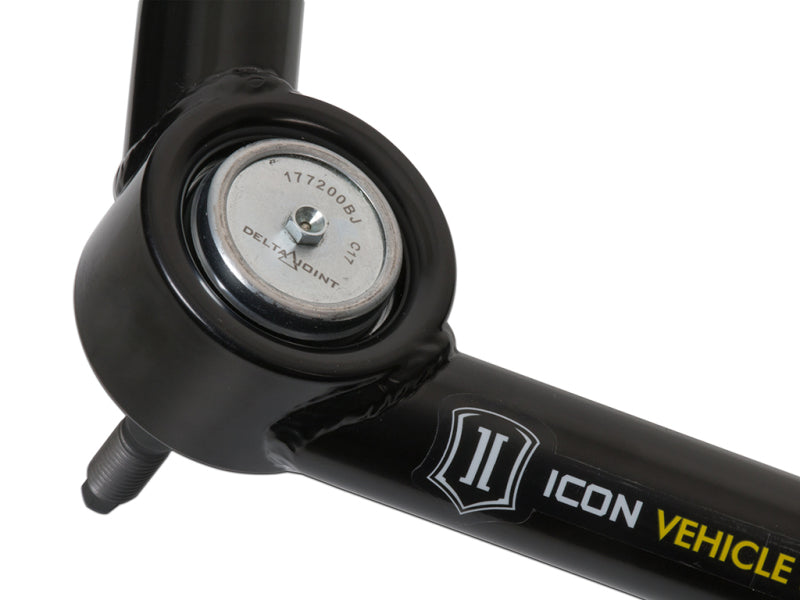

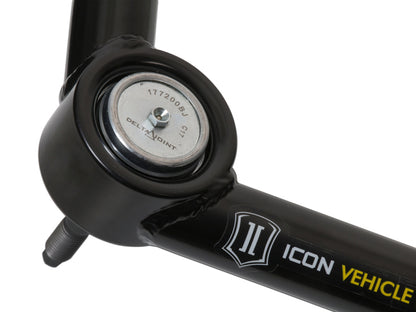

• Requires ICON front upper control arms and is not compatible with other brands

• Backed by a 5-year ICON Limited Warranty when used with ICON Vehicle Dynamics suspension components

Compatible With
1996 Toyota 4Runner
1997 Toyota 4Runner
1998 Toyota 4Runner
1999 Toyota 4Runner
2000 Toyota 4Runner
2001 Toyota 4Runner
2002 Toyota 4Runner
2005 Toyota Tacoma
2006 Toyota Tacoma
2007 Toyota Tacoma
2007 Toyota Tundra
2008 Toyota Sequoia
2008 Toyota Tacoma
2008 Toyota Tundra
2009 Toyota Sequoia
2009 Toyota Tacoma
2009 Toyota Tundra
2010 Toyota Sequoia
2010 Toyota Tacoma
2010 Toyota Tundra
2011 Toyota Sequoia
2011 Toyota Tacoma
2011 Toyota Tundra
2012 Toyota Sequoia
2012 Toyota Tacoma
2012 Toyota Tundra
2013 Toyota Sequoia
2013 Toyota Tacoma
2013 Toyota Tundra
2014 Toyota Sequoia
2014 Toyota Tacoma
2014 Toyota Tundra
2015 Toyota Sequoia
2015 Toyota Tacoma
2015 Toyota Tundra
2016 Nissan Titan XD
2016 Toyota Sequoia
2016 Toyota Tacoma
2016 Toyota Tundra
2017 Nissan Titan XD
2017 Toyota Sequoia
2017 Toyota Tacoma
2017 Toyota Tundra
2018 Nissan Titan XD
2018 Toyota Sequoia
2018 Toyota Tacoma
2018 Toyota Tundra
2019 Chevrolet Silverado 1500
2019 GMC Sierra 1500
2019 Nissan Titan XD
2019 Toyota Sequoia
2019 Toyota Tacoma
2019 Toyota Tundra
2020 Chevrolet Silverado 1500
2020 GMC Sierra 1500
2020 Nissan Titan XD
2020 Toyota Sequoia
2020 Toyota Tacoma
2020 Toyota Tundra
2021 Chevrolet Silverado 1500
2021 GMC Sierra 1500
2021 Nissan Titan XD
2021 Toyota Sequoia
2021 Toyota Tacoma
2021 Toyota Tundra
2022 Chevrolet Silverado 1500
2022 Chevrolet Silverado 1500 LTD
2022 GMC Sierra 1500
2022 GMC Sierra 1500 Limited
2022 Nissan Titan XD
2022 Toyota Sequoia
2022 Toyota Tacoma
2023 Chevrolet Silverado 1500
2023 GMC Sierra 1500
2023 Nissan Titan XD
2024 Chevrolet Silverado 1500
2024 GMC Sierra 1500
2025 Chevrolet Silverado 1500
2025 GMC Sierra 1500
2026 Chevrolet Silverado 1500
2026 GMC Sierra 1500
