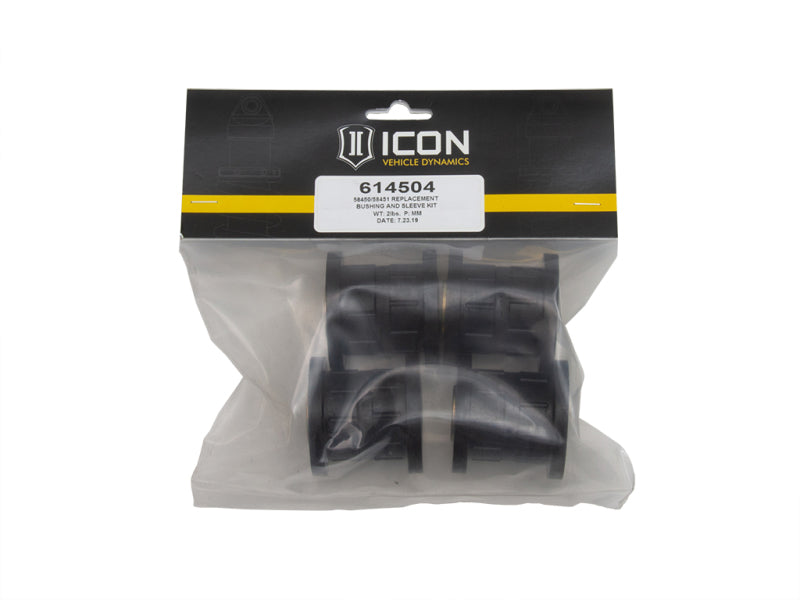

ICON 614504 Replacement Bushing and Sleeve Kit for Tubular Front Upper Control Arms

Restore the inner pivots of your ICON Vehicle Dynamics tubular front upper control arms of your 2005-2023 Toyota Tacoma, 2003-2024 Toyota 4Runner, 2003-2023 Lexus GX, or 2007-2014 Toyota FJ Cruiser with this ICON Replacement Bushing & Sleeve Kit. This kit includes a complete set of polyurethane hat bushings, Delrin load rings, and sleeves for a pair of ICON tubular front upper control arms to replace worn components and return the inner pivots to “like new” condition. This kit includes a complete set of polyurethane hat bushings, Delrin load rings, and sleeves for a pair of ICON tubular front upper control arms to replace worn components and return the inner pivots to “like new” condition. TECH NOTE: Only fits ICON tubular front upper control arms part number 58450, 58450DJ, 58451, and 58451DJ

• Services a pair of ICON tubular front upper control arm part numbers 58450DJ and 58451DJ
• Application specific, polyurethane hat bushings
• CNC machined steel, zinc plated bushing sleeves
• Genuine ICON Vehicle Dynamics original parts
• Includes full set of bushings and sleeves
• Delrin load rings

Restore the inner pivots of compatible ICON Vehicle Dynamics tubular front upper control arms with the ICON 614504 Replacement Bushing and Sleeve Kit. Designed for select 2005–2023 Toyota Tacoma, 2003–2024 Toyota 4Runner, 2003–2023 Lexus GX, and 2007–2014 Toyota FJ Cruiser applications, this service kit replaces worn pivot components and helps return the control arms to like-new operating condition. It is engineered specifically for ICON tubular front upper control arms part numbers 58450, 58450DJ, 58451, and 58451DJ.
The ICON 614504 kit includes a complete set of application-specific polyurethane hat bushings, Delrin load rings, and CNC-machined steel bushing sleeves with a zinc-plated finish. The components are sized and configured to service both inner pivots on a pair of compatible ICON tubular front upper control arms, providing the replacement parts needed for a proper rebuild without replacing the complete control arms. Use this kit when pivot bushings or sleeves show wear, deterioration, or reduced performance.
As genuine ICON Vehicle Dynamics original replacement parts, these components are designed to maintain the intended fit and function of the corresponding ICON control arms. Before ordering, verify that your vehicle is equipped with compatible ICON tubular front upper control arms and confirm the control arm part number. This kit is not intended for other control arm designs or non-ICON applications. Professional installation is recommended to ensure correct bushing, load ring, and sleeve placement.

Features:

• Application: Fits select 2005–2023 Toyota Tacoma, 2003–2024 Toyota 4Runner, 2003–2023 Lexus GX, and 2007–2014 Toyota FJ Cruiser models

• Compatibility: Only fits ICON tubular front upper control arms part numbers 58450, 58450DJ, 58451, and 58451DJ

• Service Coverage: Rebuilds the inner pivots on a pair of ICON tubular front upper control arms

• Bushings: Application-specific polyurethane hat bushings

• Sleeves: CNC-machined steel bushing sleeves with a zinc-plated finish

• Load Rings: Delrin load rings for the inner pivot assemblies

• Contents: Complete set of bushings, load rings, and sleeves

• Brand: Genuine ICON Vehicle Dynamics replacement parts

Compatible With
2003 Lexus GX470
2003 Toyota 4Runner
2004 Lexus GX470
2004 Toyota 4Runner
2005 Lexus GX470
2005 Toyota 4Runner
2005 Toyota Tacoma
2006 Lexus GX470
2006 Toyota 4Runner
2006 Toyota Tacoma
2007 Lexus GX470
2007 Toyota 4Runner
2007 Toyota FJ Cruiser
2007 Toyota Tacoma
2008 Lexus GX470
2008 Toyota 4Runner
2008 Toyota FJ Cruiser
2008 Toyota Tacoma
2009 Lexus GX470
2009 Toyota 4Runner
2009 Toyota FJ Cruiser
2009 Toyota Tacoma
2010 Lexus GX460
2010 Toyota 4Runner
2010 Toyota FJ Cruiser
2010 Toyota Tacoma
2011 Lexus GX460
2011 Toyota 4Runner
2011 Toyota FJ Cruiser
2011 Toyota Tacoma
2012 Lexus GX460
2012 Toyota 4Runner
2012 Toyota FJ Cruiser
2012 Toyota Tacoma
2013 Lexus GX460
2013 Toyota 4Runner
2013 Toyota FJ Cruiser
2013 Toyota Tacoma
2014 Lexus GX460
2014 Toyota 4Runner
2014 Toyota FJ Cruiser
2014 Toyota Tacoma
2015 Lexus GX460
2015 Toyota 4Runner
2015 Toyota Tacoma
2016 Lexus GX460
2016 Toyota 4Runner
2016 Toyota Tacoma
2017 Lexus GX460
2017 Toyota 4Runner
2017 Toyota Tacoma
2018 Lexus GX460
2018 Toyota 4Runner
2018 Toyota Tacoma
2019 Lexus GX460
2019 Toyota 4Runner
2019 Toyota Tacoma
2020 Lexus GX460
2020 Toyota 4Runner
2020 Toyota Tacoma
2021 Lexus GX460
2021 Toyota 4Runner
2021 Toyota Tacoma
2022 Lexus GX460
2022 Toyota 4Runner
2022 Toyota Tacoma
2023 Lexus GX460
2023 Toyota 4Runner
2023 Toyota Tacoma
2024 Toyota 4Runner
