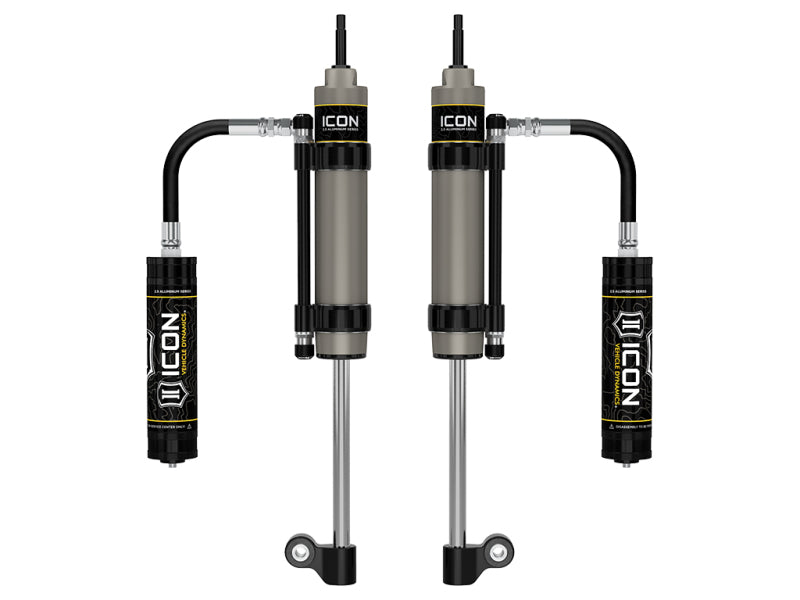

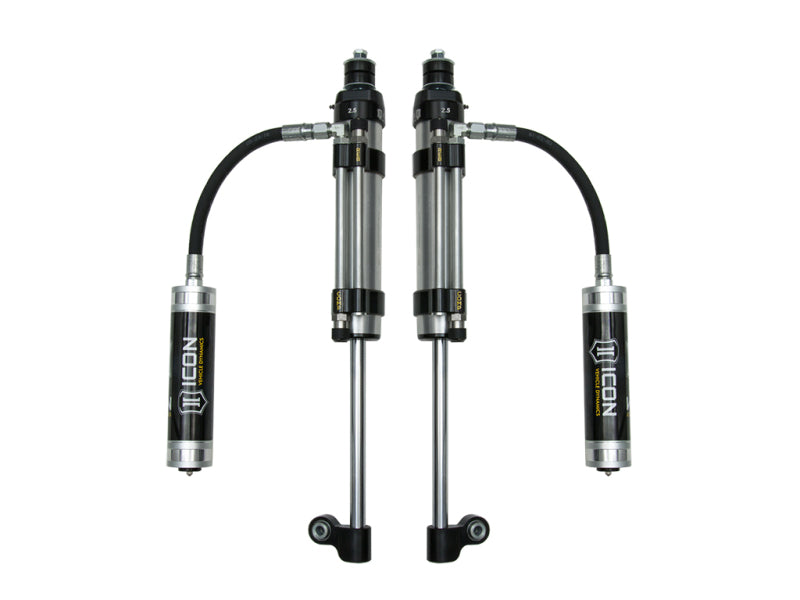

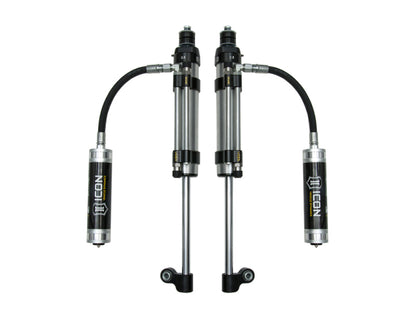

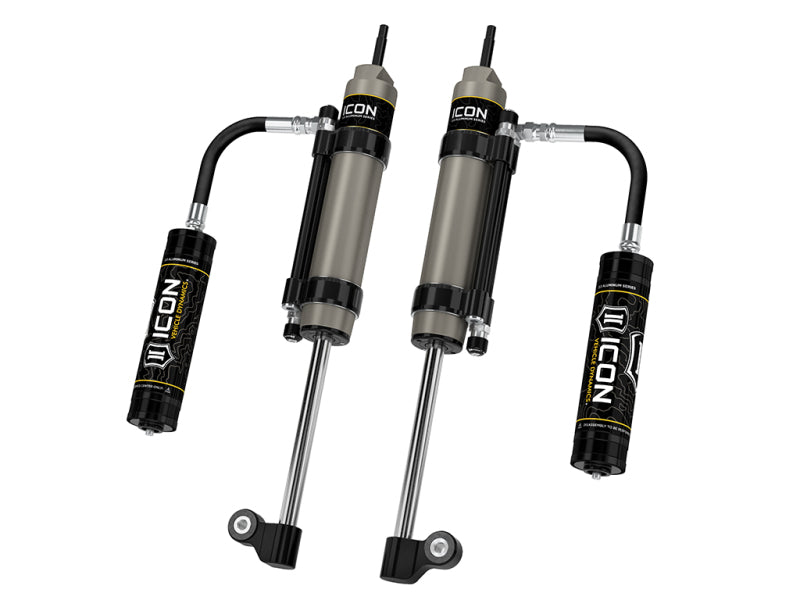

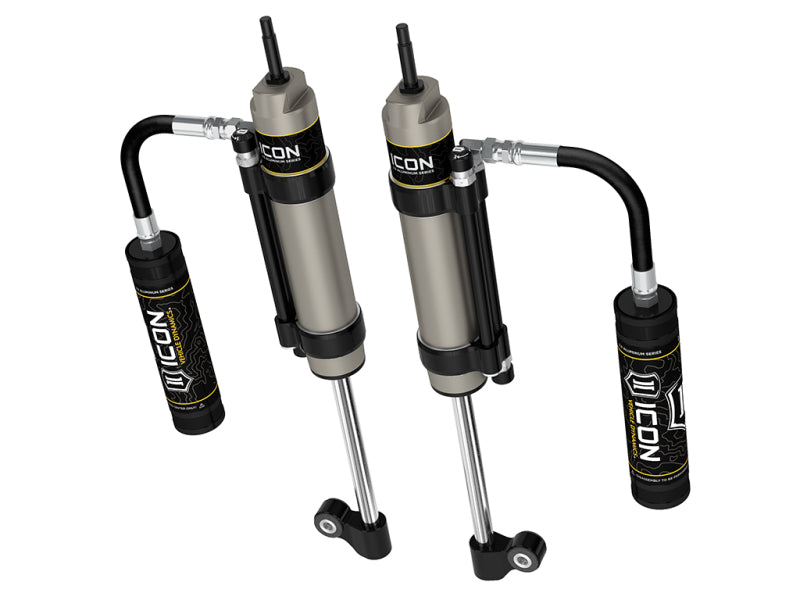

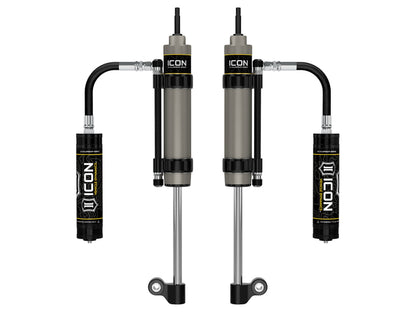

ICON 59926P Omega Series RXT Rear Bypass Shocks for 2005+ Toyota Tacoma, Pair

ICON Omega Series Bypass shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in length but allow the user to customize the ride characteristics to their liking through adjustment of the bypass valves. Like all ICON shock absorbers, Omega Series shocks are 100% rebuildable and 100% revalveable. ICON’s use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal “Bump Zone” that when used, creates a significant increase in damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON Bypass Valve is an externally adjustable valve that restricts oil flow through the bypass tube and provides 28 settings of compression and rebound adjustment with no tools required. This RXT rear shock features a side-mount eyelet making it shorter in collapsed length, longer at extension, and still fit in the factory mounting location, allowing for additional wheel travel when paired with ICON Multi-Rate Leaf Springs. ICON Omega Bypass shocks are designed to give your vehicle outstanding performance on and off-road. They are configured specifically for each application and allow the user to customize the ride through adjustment of the bypass valves. APPLICATION NOTE #244: ICON Multi-Rate Leaf Springs Part # 158505 required for installation

• ICON's Bypass Valve technology allows adjustment of compression and rebound damping with high resolution across the entire adjustment range

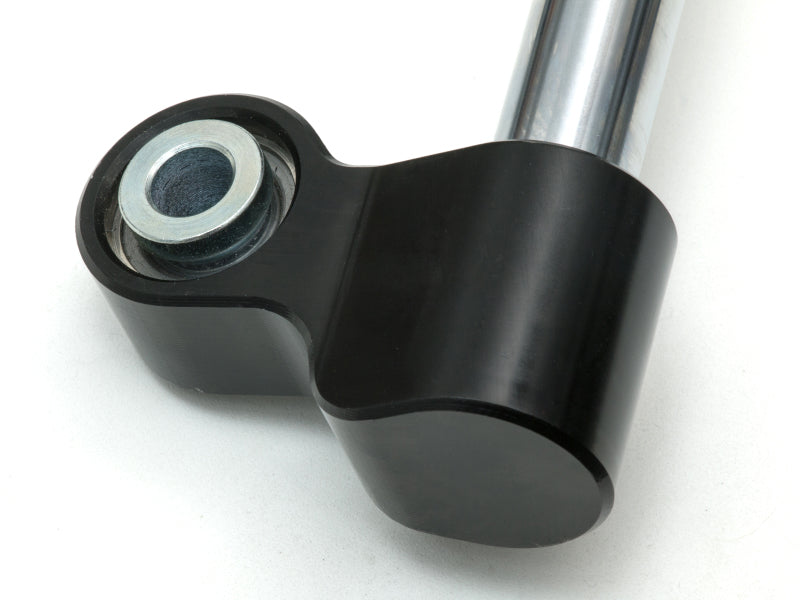

• ICON exclusive side mounted "RXT" rod ends allow for increased shaft travel and compatibility with vehicle's stock shock mounting points
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• Internal “Bump Zone” increases damping force to provide more control as the shock approaches full compression
• Hand adjustable bypass valves with 28 detented settings at quarter turn increments for precise suspension tuning
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• PTFE lined spherical bearings and application specific mounting hardware
• 7/8” diameter induction hardened, chrome plated shock shaft
• 6061 aircraft grade aluminum CNC machined components
• Bypass tubes are replaceable in the event of damage
• 100% Revalveable
• 100% Rebuildable

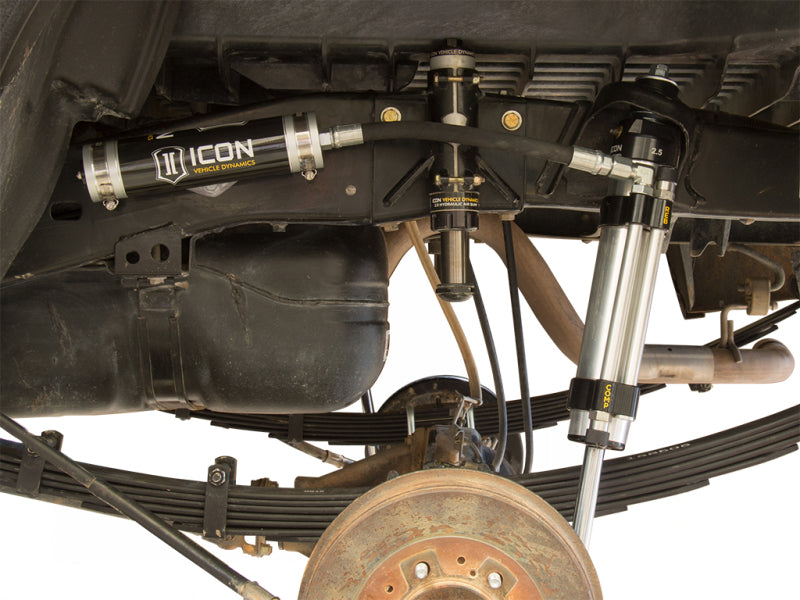

ICON Omega Series Bypass shocks are engineered to deliver controlled suspension performance both off-road and on the street. This ICON 59926P rear shock pair is specifically configured for compatible 2005 and newer Toyota Tacoma applications, with vehicle-specific valving and a one-piece digressive piston designed to improve ride quality, traction, and suspension control. The RXT side-mount eyelet shortens collapsed length and increases available extension while retaining compatibility with the factory shock mounting location. When paired with ICON Multi-Rate Leaf Springs, this design can help provide additional rear wheel travel.

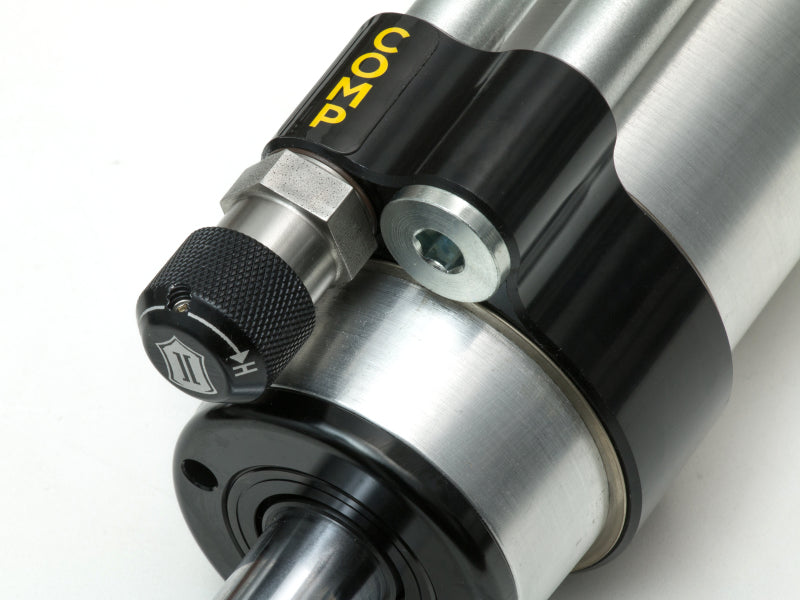

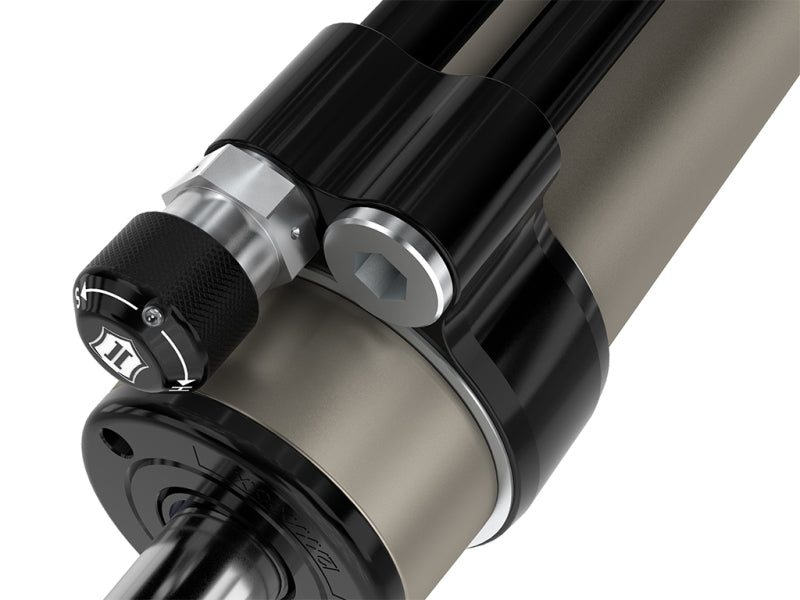

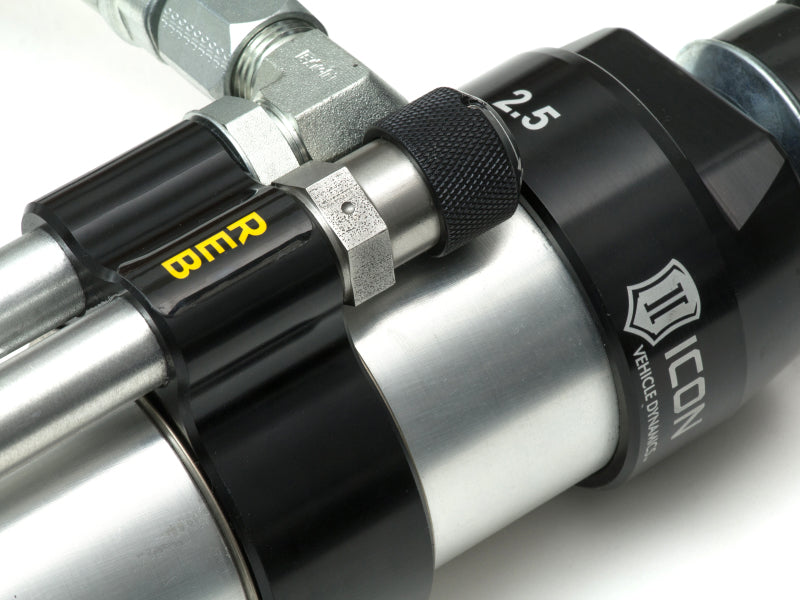

The externally adjustable ICON Bypass Valve lets you tune compression and rebound damping without tools. With 28 detented settings at quarter-turn increments, drivers can fine-tune the suspension for changing terrain, vehicle loads, and driving conditions. An internal Bump Zone created by the 6061 billet aluminum manifold increases damping force near full compression, helping control high-velocity suspension movement and reduce harsh bottoming. The remote reservoir improves heat dissipation during prolonged use, while premium 5WT shock oil supports consistent damping across a broad temperature range.
Each shock features a one-piece impact-extruded aluminum cylinder, a 7/8-inch induction-hardened chrome-plated shaft, PTFE-lined spherical bearings, and application-specific mounting hardware. CNC-machined 6061 aircraft-grade aluminum components provide strength and corrosion resistance, and replaceable bypass tubes help simplify service if damage occurs. Like other ICON Omega Series shocks, the assembly is fully rebuildable and revalveable for long-term maintenance and suspension tuning. Application Note #244: ICON Multi-Rate Leaf Springs, Part 158505, are required for installation. This pair is designed for select 2005 through 2017 Toyota Tacoma models; verify vehicle fitment before ordering.

• Feature: ICON Bypass Valve technology provides adjustable compression and rebound damping across the full adjustment range


• Feature: RXT side-mounted rod ends increase shaft travel while fitting factory shock mounting points


• Feature: Vehicle-specific digressive piston valving supports controlled on- and off-road performance


• Feature: Internal Bump Zone increases damping force near full compression


• Feature: Hand-adjustable bypass valves provide 28 detented settings without tools


• Feature: Remote reservoirs improve heat dissipation and help reduce shock fade


• Feature: Aluminum cylinders and 6061 aircraft-grade aluminum components resist corrosion


• Feature: Fully rebuildable and revalveable design for long-term serviceability

Features:

• ICON Bypass Valve technology provides adjustable compression and rebound damping across the full adjustment range

• RXT side-mounted rod ends increase shaft travel while fitting factory shock mounting points

• Vehicle-specific digressive piston valving supports controlled on- and off-road performance

• Internal Bump Zone increases damping force near full compression

• Hand-adjustable bypass valves provide 28 detented settings without tools

• Remote reservoirs improve heat dissipation and help reduce shock fade

• Aluminum cylinders and 6061 aircraft-grade aluminum components resist corrosion

• Fully rebuildable and revalveable design for long-term serviceability

Compatible With
2005 Toyota Tacoma
2006 Toyota Tacoma
2007 Toyota Tacoma
2008 Toyota Tacoma
2009 Toyota Tacoma
2010 Toyota Tacoma
2011 Toyota Tacoma
2012 Toyota Tacoma
2013 Toyota Tacoma
2014 Toyota Tacoma
2015 Toyota Tacoma
2016 Toyota Tacoma
2017 Toyota Tacoma
2018 Toyota Tacoma
2019 Toyota Tacoma
2020 Toyota Tacoma
2021 Toyota Tacoma
2022 Toyota Tacoma
2023 Toyota Tacoma
