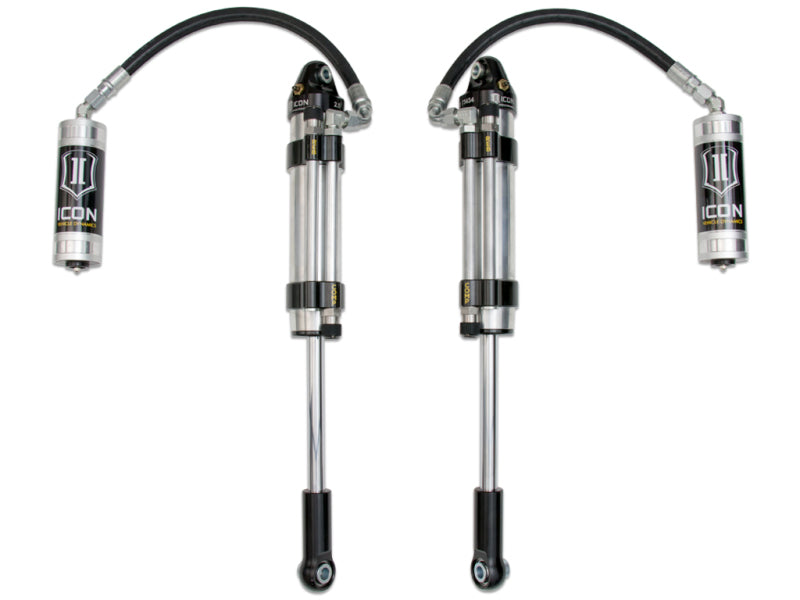

ICON 59922P Omega Series S2 2.5 VS Remote Reservoir Bypass Shocks for 2007-2021 Toyota Tundra, Pair

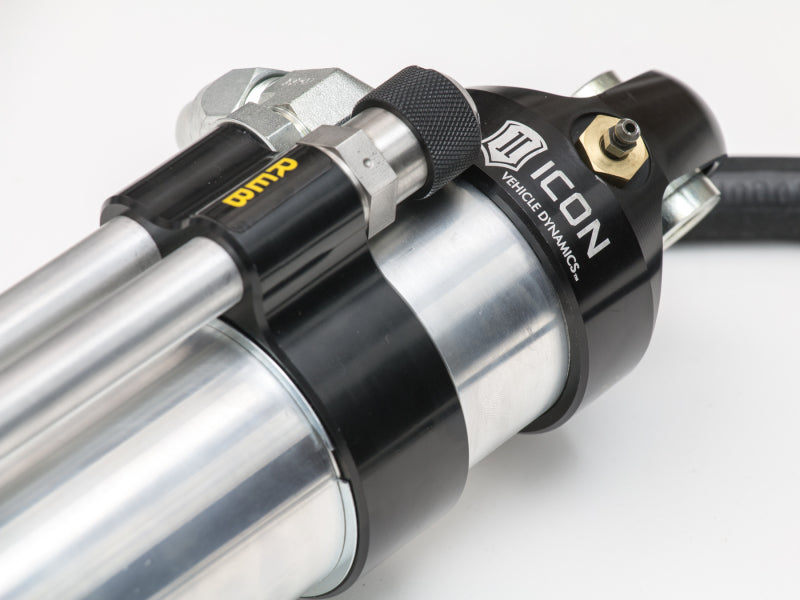

ICON Omega Series Bypass shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in length but allow the user to customize the ride characteristics to their liking through adjustment of the bypass valves. Like all ICON shock absorbers, Omega Series shocks are 100% rebuildable and 100% revalveable. ICON’s use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal “Bump Zone” that when used, creates a significant increase in damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON Bypass Valve is an externally adjustable valve that restricts oil flow through the bypass tube and provides 28 settings of compression and rebound adjustment with no tools required. 2007-2021 TUNDRA S2 2.5 VS REMOTE RESERVOIR OMEGA BYPASS SHOCK PAIR

• ICON's Bypass Valve technology allows adjustment of compression and rebound damping with high resolution across the entire adjustment range
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• Internal “Bump Zone” increases damping force to provide more control as the shock approaches full compression
• Hand adjustable bypass valves with 28 detented settings at quarter turn increments for precise suspension tuning
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• PTFE lined spherical bearings and application specific mounting hardware
• 7/8” diameter induction hardened, chrome plated shock shaft
• 6061 aircraft grade aluminum CNC machined components
• Bypass tubes are replaceable in the event of damage
• 100% Revalveable
• 100% Rebuildable

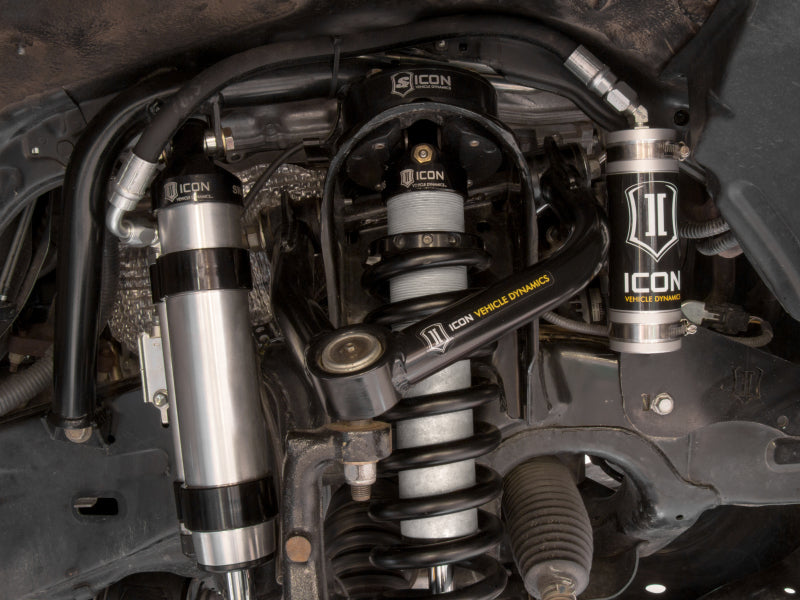

Upgrade the suspension performance of your Toyota Tundra with the ICON Omega Series S2 2.5 VS remote reservoir bypass shock pair, part number 59922P. Designed specifically for 2007-2021 Tundra applications, these shocks deliver controlled suspension response off-road while maintaining a smooth, composed ride on the street. Vehicle-specific valving and a one-piece digressive piston help provide consistent performance across changing terrain and driving conditions.
ICON Bypass Valve technology gives you precise, tool-free control over compression and rebound damping. Each hand-adjustable valve provides 28 detented settings in quarter-turn increments, allowing you to tune the suspension to match vehicle setup, payload, terrain, and driving style. An internal Bump Zone increases damping force as the shock approaches full compression, helping control high-velocity suspension movement and reduce harsh bottoming.
The remote reservoir design improves heat dissipation during prolonged, demanding use to help reduce shock fade. Each shock features a 7/8-inch induction-hardened, chrome-plated shaft, premium-grade 5WT shock oil, PTFE-lined spherical bearings, and application-specific mounting hardware. One-piece impact-extruded aluminum cylinders and CNC-machined 6061 aircraft-grade aluminum components provide durability and corrosion resistance, while replaceable bypass tubes help simplify service if damage occurs. Like other ICON shock absorbers, the Omega Series is fully rebuildable and revalveable for long-term performance and customization.

Features:

• ICON Bypass Valve technology provides high-resolution compression and rebound adjustment across the full tuning range

• Vehicle-specific valving and a one-piece digressive piston deliver controlled performance and ride quality on and off the road

• Internal Bump Zone increases damping force near full compression to help control harsh bottoming

• Hand-adjustable bypass valves offer 28 detented settings in quarter-turn increments without tools

• Remote reservoir design improves heat dissipation and helps reduce shock fade during extended use

• One-piece impact-extruded aluminum cylinders provide corrosion resistance and a consistent finish

• Premium-grade 5WT shock oil supports consistent damping across a wide temperature range

• PTFE-lined spherical bearings and application-specific mounting hardware provide reliable fit and operation

• 7/8-inch induction-hardened, chrome-plated shock shaft resists wear and corrosion

• CNC-machined 6061 aircraft-grade aluminum components provide strength and durability

• Replaceable bypass tubes help simplify repair if damaged

• 100% rebuildable and 100% revalveable design

Compatible With
2007 Toyota Tundra
2008 Toyota Tundra
2009 Toyota Tundra
2010 Toyota Tundra
2011 Toyota Tundra
2012 Toyota Tundra
2013 Toyota Tundra
2014 Toyota Tundra
2015 Toyota Tundra
2016 Toyota Tundra
2017 Toyota Tundra
2018 Toyota Tundra
2019 Toyota Tundra
2020 Toyota Tundra
2021 Toyota Tundra
