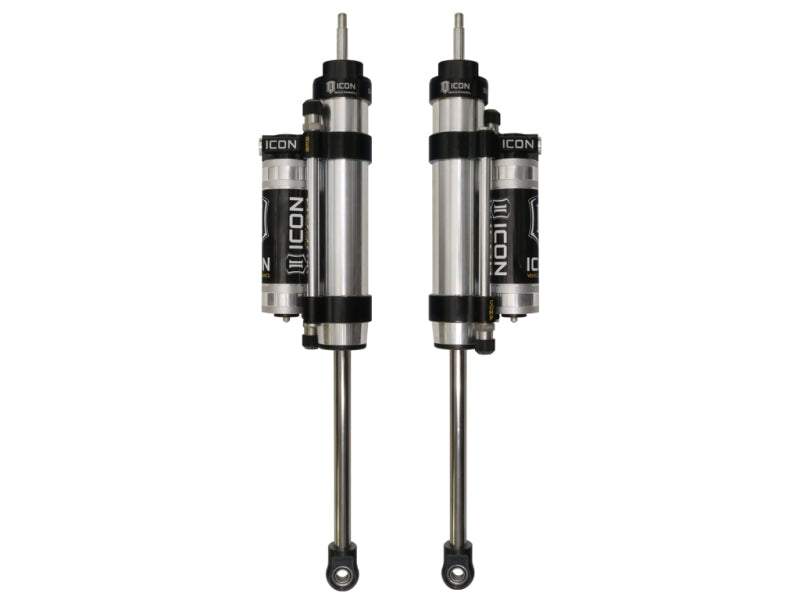

ICON 59920P Omega Series 2.5 VS Piggyback Rear Shocks for 2007-2021 Toyota Tundra, Pair

ICON Omega Series Bypass shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in length but allow the user to customize the ride characteristics to their liking through adjustment of the bypass valves. Like all ICON shock absorbers, Omega Series shocks are 100% rebuildable and 100% revalveable. ICON’s use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal “Bump Zone” that when used, creates a significant increase in damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON Bypass Valve is an externally adjustable valve that restricts oil flow through the bypass tube and provides 28 settings of compression and rebound adjustment with no tools required. 2007-2021 TUNDRA REAR 2.5 VS OMEGA PIGGYBACK SHOCK PAIR

• ICON's Bypass Valve technology allows adjustment of compression and rebound damping with high resolution across the entire adjustment range
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• Internal “Bump Zone” increases damping force to provide more control as the shock approaches full compression
• Hand adjustable bypass valves with 28 detented settings at quarter turn increments for precise suspension tuning
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• PTFE lined spherical bearings and application specific mounting hardware
• 7/8” diameter induction hardened, chrome plated shock shaft
• 6061 aircraft grade aluminum CNC machined components
• Bypass tubes are replaceable in the event of damage
• 100% Revalveable
• 100% Rebuildable

Upgrade the rear suspension of your 2007-2021 Toyota Tundra with the ICON Omega Series 2.5 VS piggyback shock pair, Part Number 59920P. Designed for demanding off-road performance and controlled street handling, these application-specific shocks feature adjustable bypass valves that let you fine-tune compression and rebound damping without tools. With 28 detented adjustment settings, the shocks provide precise control across a wide range of driving conditions and terrain.
ICON’s one-piece digressive piston design and vehicle-specific valving deliver balanced ride quality and suspension control on and off the road. The integrated internal Bump Zone increases damping force as the shock approaches full compression, helping reduce harsh bottom-outs and controlling suspension movement during high-velocity compression. A piggyback reservoir improves heat dissipation, helping minimize shock fade during extended off-road use, while premium 5WT shock oil maintains consistent damping across a broad temperature range.
Built for long-term serviceability, ICON 59920P shocks use impact-extruded aluminum cylinders, CNC-machined 6061 aircraft-grade aluminum components, PTFE-lined spherical bearings, and application-specific mounting hardware. The 7/8-inch induction-hardened, chrome-plated shock shaft provides durable operation, and replaceable bypass tubes help simplify repair in the event of damage. Like other ICON shock absorbers, the Omega Series design is fully rebuildable and revalveable, allowing the damping characteristics to be serviced or customized as your vehicle setup evolves. Fits select 2007-2021 Toyota Tundra applications; verify vehicle configuration and suspension compatibility before installation.

Features:

• Adjustable bypass valve technology provides high-resolution compression and rebound damping control

• Vehicle-specific valving and a one-piece digressive piston deliver responsive on-road and off-road performance

• Internal Bump Zone increases damping force near full compression to help control harsh bottom-outs

• Hand-adjustable bypass valves offer 28 detented settings in quarter-turn increments

• Piggyback reservoir design improves heat dissipation and helps reduce shock fade

• Impact-extruded aluminum cylinders provide corrosion resistance and a consistent finish

• Premium 5WT shock oil supports consistent damping across a wide temperature range

• PTFE-lined spherical bearings and application-specific mounting hardware are included

• 7/8-inch induction-hardened, chrome-plated shock shaft provides durable service

• CNC-machined 6061 aircraft-grade aluminum components support strength and reliability

• Replaceable bypass tubes help simplify service after damage

• Fully rebuildable and revalveable design supports long-term maintenance and tuning

Compatible With
2007 Toyota Tundra
2008 Toyota Tundra
2009 Toyota Tundra
2010 Toyota Tundra
2011 Toyota Tundra
2012 Toyota Tundra
2013 Toyota Tundra
2014 Toyota Tundra
2015 Toyota Tundra
2016 Toyota Tundra
2017 Toyota Tundra
2018 Toyota Tundra
2019 Toyota Tundra
2020 Toyota Tundra
2021 Toyota Tundra
