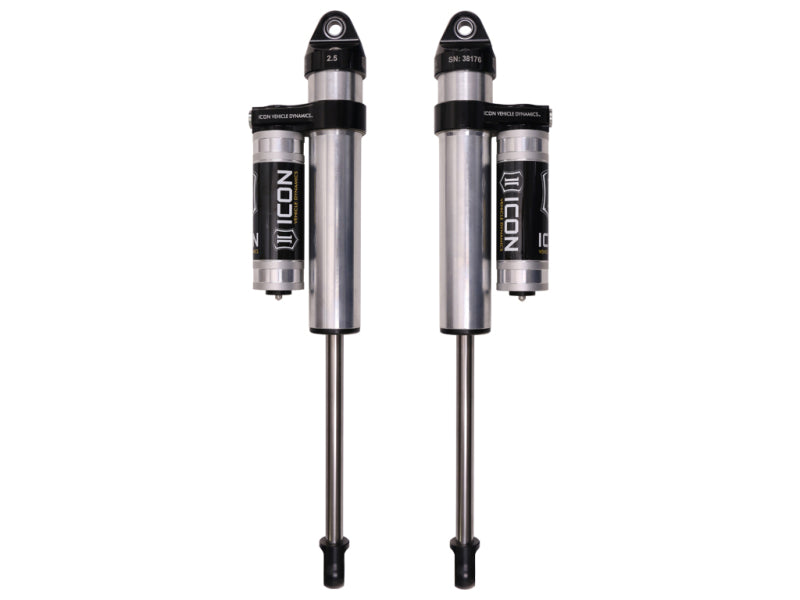

ICON 59704P-CB 2.5 Series Piggyback Shocks for 2007-2021 Toyota Tundra, Pair

ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) or the Omega Series bypass shocks. 2007-2021 TOYOTA TUNDRA SECONDARY 2.5 VS PIGGYBACK SHOCK PAIR

• All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• CAD plated, precision machined 1026 DOM steel shock body for maximum durability and corrosion resistance
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• PTFE lined spherical bearings and application specific mounting hardware
• 7/8” diameter induction hardened, chrome plated shock shaft
• Nitrogen charged monotube design with piggyback reservoir
• 6061 aircraft grade aluminum CNC machined components
• 100% Revalveable
• 100% Rebuildable

Upgrade your 2007-2021 Toyota Tundra with the ICON 2.5 Series Vehicle Specific piggyback shock pair, part number 59704P-CB. Designed and tuned specifically for the Tundra platform, these shocks provide controlled suspension performance during off-road driving while maintaining a smooth, composed ride on the street. Vehicle-specific lengths and damping calibrations help optimize handling, ride quality, and suspension control for demanding driving conditions.
The nitrogen-charged monotube design uses a piggyback reservoir to improve heat dissipation and help reduce shock fade during extended or aggressive use. ICON’s internal Bump Zone, created through a 6061 billet aluminum manifold positioned below the shock top cap, adds up to 20% more damping force as the shock approaches full compression. This additional control helps manage high-velocity suspension movement and reduce harsh bottom-outs. The one-piece digressive piston and application-specific valving deliver predictable performance across varied terrain.
Built for long-term serviceability, the ICON 59704P-CB shocks feature a CAD-plated 1026 DOM steel body, chrome-plated induction-hardened shock shafts, premium 5WT shock oil, PTFE-lined spherical bearings, and CNC-machined 6061 aircraft-grade aluminum components. The shocks are fully rebuildable and revalveable, allowing future maintenance or damping adjustments as your vehicle setup and driving needs change. Piggyback and remote reservoir ICON 2.5 Series shocks can also be upgraded with the available Compression Damping Control Valve (CDCV) for more user-defined tuning.

Features:

• Application: Vehicle-specific 2.5 Series piggyback shocks for 2007-2021 Toyota Tundra models

• Performance: One-piece digressive piston with application-specific valving for controlled on-road and off-road ride quality

• Bump Zone: Internal design increases damping force by up to 20% near full compression to help control bottom-outs

• Reservoir: Piggyback nitrogen-charged monotube design improves heat dissipation and reduces shock fade

• Construction: CAD-plated 1026 DOM steel shock body supports durability and corrosion resistance

• Serviceability: 100% rebuildable and 100% revalveable for long-term maintenance and tuning

• Oil: Premium 5WT shock oil provides consistent damping across a broad temperature range

• Hardware: PTFE-lined spherical bearings and application-specific mounting hardware included

• Shaft: 7/8-inch induction-hardened, chrome-plated shock shaft

• Components: CNC-machined 6061 aircraft-grade aluminum components

• Upgradeability: Compatible with the ICON Compression Damping Control Valve upgrade

Compatible With
2007 Toyota Tundra
2008 Toyota Tundra
2009 Toyota Tundra
2010 Toyota Tundra
2011 Toyota Tundra
2012 Toyota Tundra
2013 Toyota Tundra
2014 Toyota Tundra
2015 Toyota Tundra
2016 Toyota Tundra
2017 Toyota Tundra
2018 Toyota Tundra
2019 Toyota Tundra
2020 Toyota Tundra
2021 Toyota Tundra
