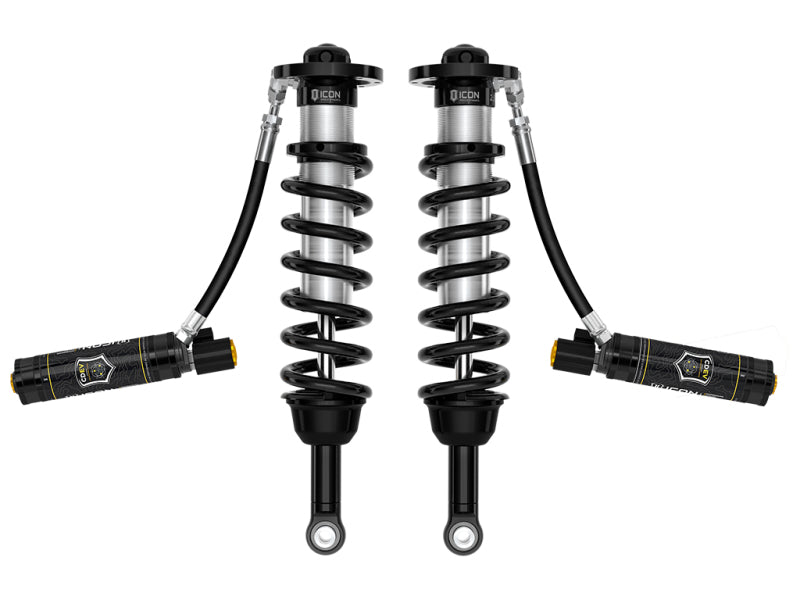

ICON 58796E V.S. 2.5 Series CDEV Remote Reservoir Front Coilover Kit for 2025-2026 Toyota 4Runner 2WD

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir CDEV front coilover shocks are an incredible upgrade for the front end of the 2025-2026 Toyota 4Runner 2WD. These adjustable coilovers allow up 1.25-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific valving, their large 2.5” shock body with increased piston surface area over stock components, and their optimized extended length taylored specifically for 2WD models, yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV's hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly. When paired with 2.5 Aluminum Series CDEV rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your 6th Gen Toyota 4Runner. ICON 2.5 Series front coilover shocks are an incredible upgrade for the 2025-2026 Toyota 4Runner. These adjustable coilovers allow up 1.25-3” of lift with vehicle-specific shock length and valving for superior ride quality and performance. APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.

• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• 2.5" diameter shock bodies with remote reservoirs offer increased heat capacity and improved cooling for consistent performance
• Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
• Vehicle specific shock length optimized for 2WD models yields maximum front wheel travel
• Height-adjustable coilovers offer 1.25-3" of lift height adjustment over stock
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• FK rod end bearings for extended longevity and minimal deflection
• 6061 Aircraft grade aluminum CNC machined components
• Fully rebuildable and re-tunable
• ICON engineered coil springs

Upgrade the front suspension of your 2025-2026 Toyota 4Runner 2WD with the ICON 58796E V.S. 2.5 Series remote reservoir CDEV front coilover kit. Designed specifically for 2WD models, this height-adjustable system provides 1.25-3 inches of lift adjustment over stock while accommodating larger, more aggressive wheel and tire combinations. Vehicle-specific shock length and valving are engineered to maximize front wheel travel, improve vehicle control, and deliver a refined ride on both paved roads and off-road terrain.
The 2.5-inch shock bodies provide greater piston surface area than stock components, while remote reservoirs increase oil capacity and cooling surface area. This helps manage heat buildup and resist cavitation during demanding use, promoting consistent damping performance and reducing the risk of shock fade. Corrosion-resistant CAD-plated bodies, 7/8-inch shafts, FK rod end bearings, and ICON-engineered coil springs provide durability for extended service in challenging environments. The assembly is fully rebuildable and re-tunable for long-term performance.

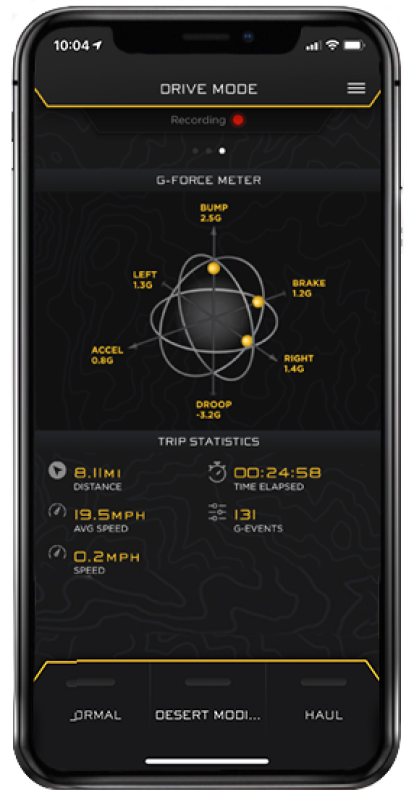

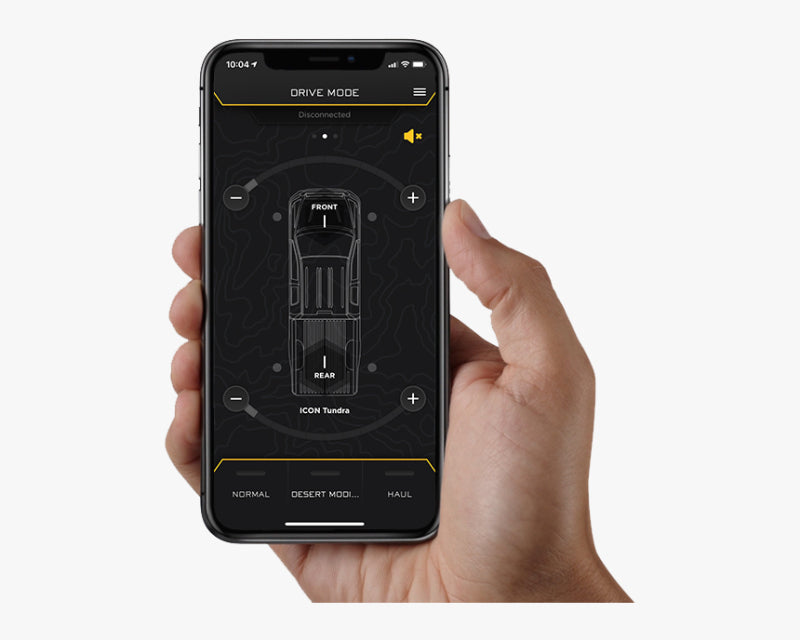

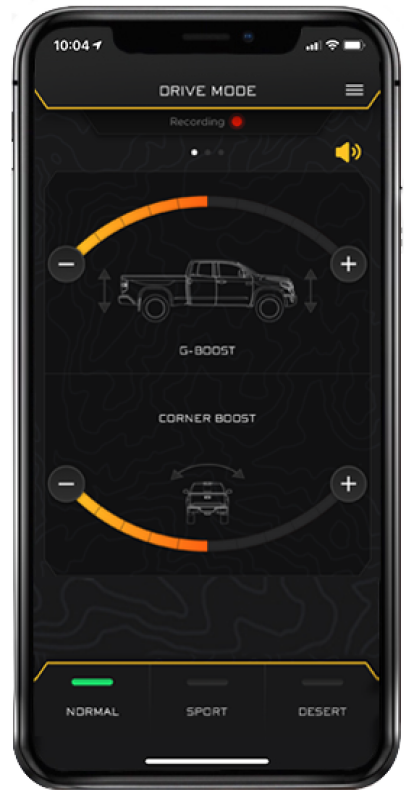

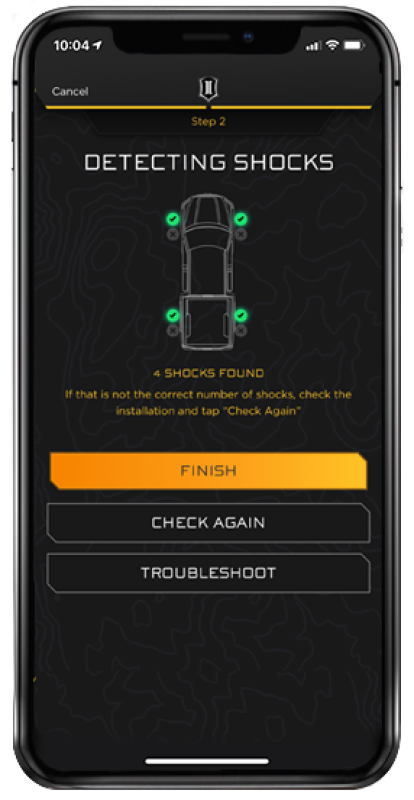

The included CDE Valve provides electronically controlled compression damping adjustment from inside the vehicle. Powered by ICON Intelligent Control and the proprietary ICON mobile app, the system uses onboard G-force and gyroscope data to calculate terrain conditions and adjust damping according to selected settings. The valve can react in less than 40 milliseconds and offers precise, continuously variable control across changing surfaces. Pairing these front coilovers with ICON 2.5 Aluminum Series CDEV rear shocks helps balance suspension performance front to rear for a more controlled driving experience. Advertised lift height applies to a stock-equipped vehicle; added accessory weight may change the available lift range.

Features:

• CDE Valve technology enables in-vehicle compression damping adjustment through ICON Intelligent Control

• Remote reservoirs increase oil capacity and cooling for consistent performance under demanding conditions

• Vehicle-specific valving improves damping control, ride quality, and handling over stock components

• Shock length is optimized for 2WD models to maximize front suspension travel

• Height-adjustable coilovers provide 1.25-3 inches of lift adjustment over stock

• Corrosion-resistant CAD-plated shock bodies with 7/8-inch shafts

• FK rod end bearings promote durability and minimize deflection

• 6061 aircraft-grade aluminum CNC-machined components

• Fully rebuildable and re-tunable design

• ICON-engineered coil springs

Compatible With
2025 Toyota 4Runner
2026 Toyota 4Runner
