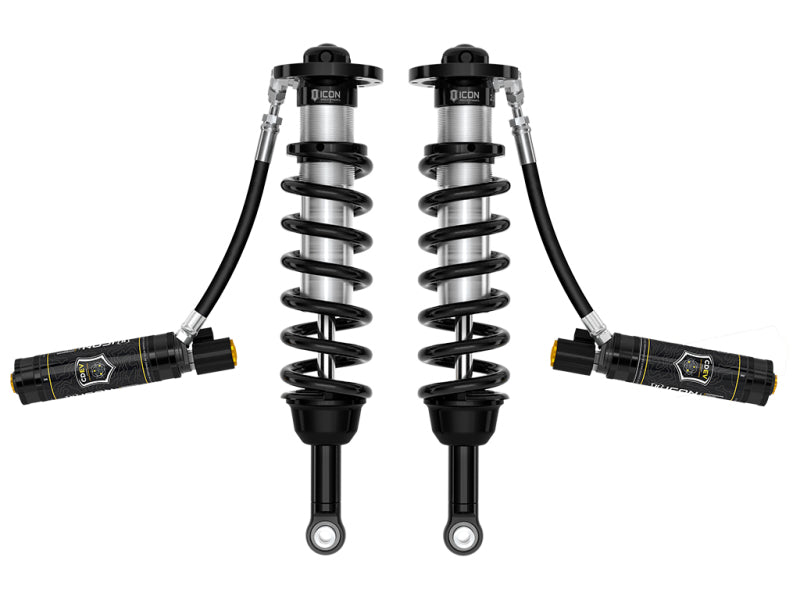

ICON 58795E 2.5 Series CDEV Remote Reservoir Front Coilover Kit for 2025-2026 Toyota 4Runner

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir CDEV front coilover shocks are an incredible upgrade for the front end of the 2025-2026 Toyota 4Runner. These adjustable coilovers allow up 1.25-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving, their large 2.5” shock body with increased piston surface area over stock components, and their pairing with an ICON front differential drop on 4WD models, yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV's hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly. When paired with 2.5 Aluminum Series CDEV rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your 6th Gen Toyota 4Runner. ICON 2.5 Series front coilover shocks are an incredible upgrade for the 2025-2026 Toyota 4Runner. These adjustable coilovers allow up 1.25-3” of lift with vehicle-specific shock length and valving for superior ride quality and performance. APPLICATION NOTE #233: Length optimized for 4WD models but will also fit 2WD. Alternatively, for maximum wheel travel on 2WD models consider 2WD specific part numbers.

• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• 2.5" diameter shock bodies with remote reservoirs offer increased heat capacity and improved cooling for consistent performance
• Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
• Vehicle specific shock length and pairing with front differential drop yields maximum wheel travel
• Height-adjustable coilovers offer 1.25-3" of lift height adjustment over stock
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• FK rod end bearings for extended longevity and minimal deflection
• 6061 Aircraft grade aluminum CNC machined components
• Fully rebuildable and re-tunable
• ICON engineered coil springs

Upgrade the front suspension of your 2025-2026 Toyota 4Runner with the ICON Vehicle Dynamics 2.5 Series CDEV remote reservoir front coilover kit, part number 58795E. Designed for vehicle-specific fitment and performance, these height-adjustable coilovers provide 1.25 to 3 inches of lift adjustment over stock, helping accommodate larger wheel and tire combinations while improving suspension control on and off the road. The vehicle-specific shock length and valving are engineered to deliver increased wheel travel, superior ride quality, and responsive handling. This kit is optimized for 4WD models and also fits 2WD applications.

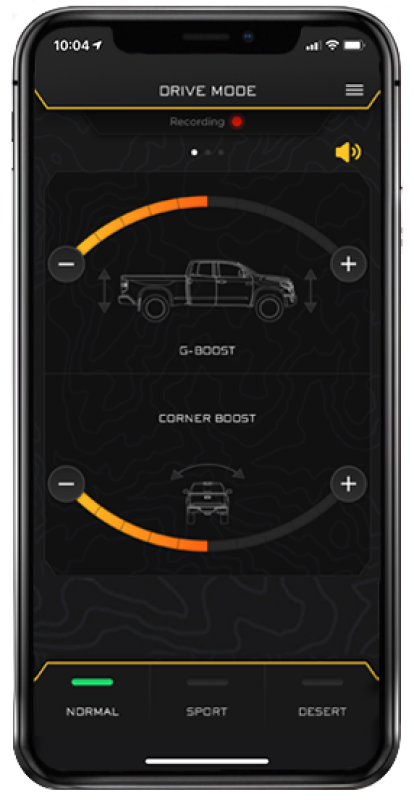

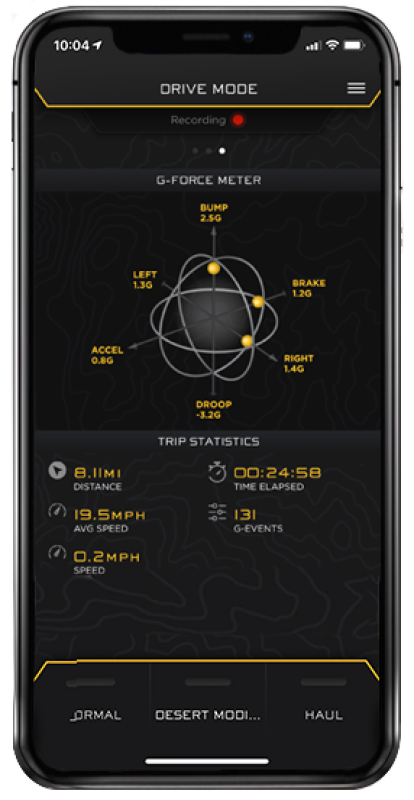

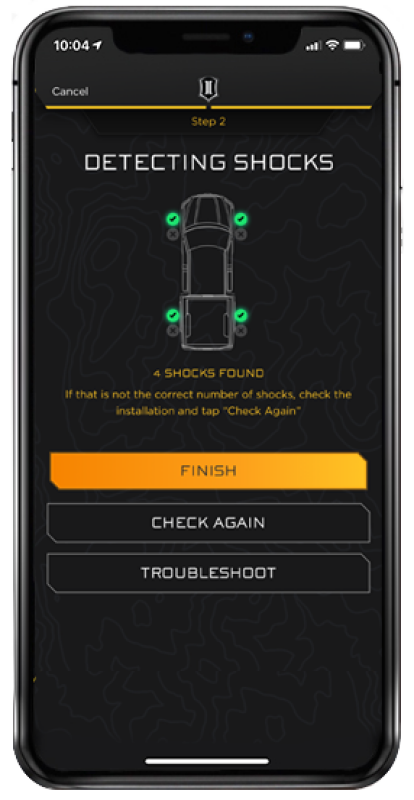

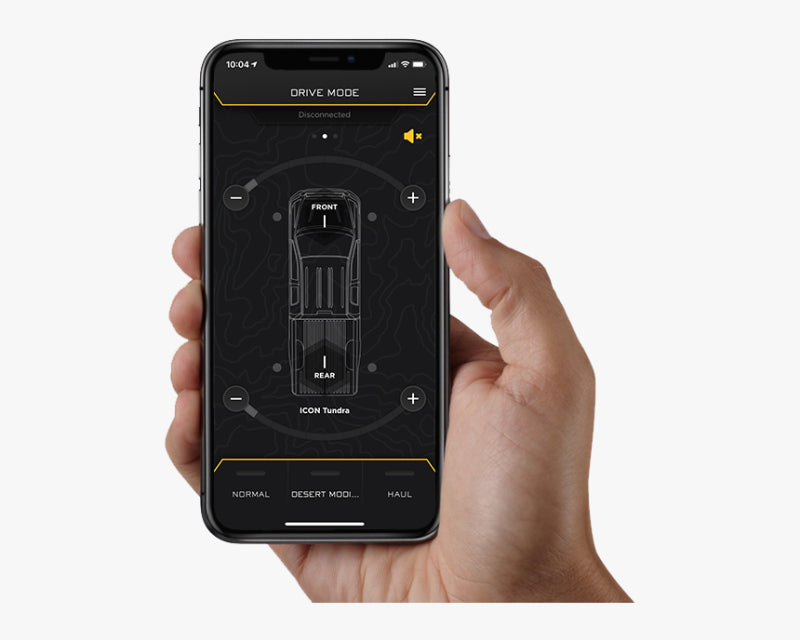

The integrated Compression Damping Electronic Valve (CDEV) provides electronically controlled compression damping adjustment from inside the vehicle. Using ICON Intelligent Control and the ICON mobile app, drivers can select settings and allow the system to adjust damping based on onboard G-force and gyroscope data. The valve can respond in less than 40 milliseconds and uses application-specific hydraulic circuits for precise control across changing terrain. Remote reservoirs increase shock oil capacity and cooling surface area, helping resist overheating, cavitation, and damping fade during demanding driving conditions. Pairing these front coilovers with ICON 2.5 Aluminum Series CDEV rear shocks helps create balanced vehicle control from front to rear.
The 2.5-inch shock bodies feature corrosion-resistant CAD-plated construction, 7/8-inch shafts, and 6061 aircraft-grade aluminum CNC-machined components. FK rod end bearings help promote long service life and minimize deflection, while ICON-engineered coil springs support consistent suspension performance. The components are fully rebuildable and re-tunable for long-term serviceability. On 4WD models, pairing the kit with an ICON front differential drop helps maximize available wheel travel. Application Note 233: The kit is length optimized for 4WD models but will also fit 2WD models; for maximum wheel travel on 2WD vehicles, consider a 2WD-specific application.

Features:

• ICON CDEV technology enables in-vehicle compression damping adjustment through ICON Intelligent Control

• Remote reservoirs and 2.5-inch shock bodies increase heat capacity and cooling for consistent performance

• Vehicle-specific shock length and valving improve ride quality, damping, and vehicle control

• Height-adjustable coilovers provide 1.25 to 3 inches of lift adjustment over stock

• Designed for 2025-2026 Toyota 4Runner models and optimized for 4WD applications

• Pairs with an ICON front differential drop on 4WD models to help maximize wheel travel

• Corrosion-resistant CAD-plated shock bodies with 7/8-inch shafts

• FK rod end bearings provide durability and minimize deflection

• 6061 aircraft-grade aluminum CNC-machined components

• ICON-engineered coil springs

• Fully rebuildable and re-tunable design

Compatible With
2025 Toyota 4Runner
2026 Toyota 4Runner
