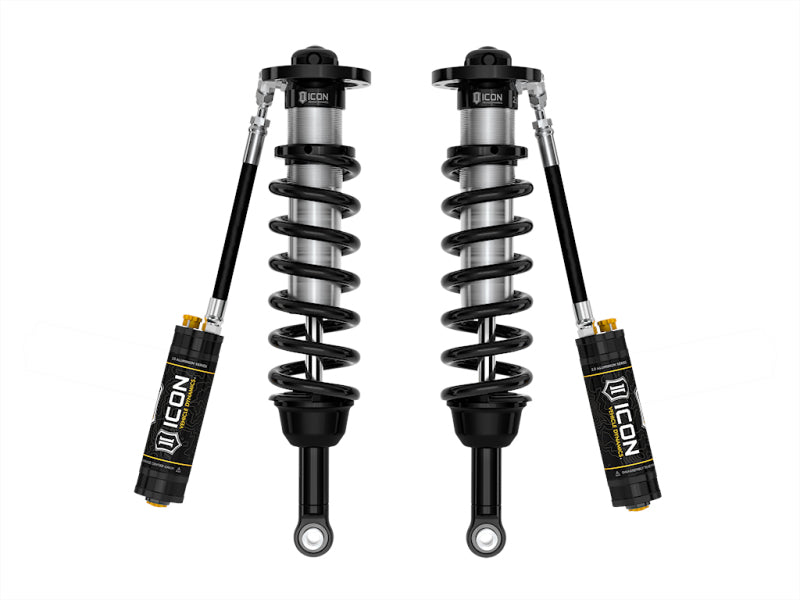

ICON 58795C V.S. 2.5 CDCV Remote Reservoir Front Coilover Kit for 2025-2026 Toyota 4Runner

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir CDCV front coilover shocks are an incredible upgrade for the front end of the 2025-2026 Toyota 4Runner. These adjustable coilovers allow up 1.25-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving, their large 2.5” shock body with increased piston surface area over stock components, and their pairing with an ICON front differential drop on 4WD models, yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with 2.5 Aluminum Series CDCV rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your 6th Gen Toyota 4Runner. ICON 2.5 Series front coilover shocks are an incredible upgrade for the 2025-2026 Toyota 4Runner. These adjustable coilovers allow up 1.25-3” of lift with vehicle-specific shock length and valving for superior ride quality and performance. APPLICATION NOTE #233: Length optimized for 4WD models but will also fit 2WD. Alternatively, for maximum wheel travel on 2WD models consider 2WD specific part numbers.

• 2.5" diameter shock bodies with remote reservoirs offer increased heat capacity and improved cooling for consistent performance
• Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
• Vehicle specific shock length and pairing with front differential drop yields maximum wheel travel
• Height-adjustable coilovers offer 1.25-3" of lift height adjustment over stock
• ICON CDCV equipped for 10 settings of external compression damping adjustment
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• FK rod end bearings for extended longevity and minimal deflection
• 6061 Aircraft grade aluminum CNC machined components
• Fully rebuildable and re-tunable
• ICON engineered coil springs

Upgrade the front suspension of your 2025-2026 Toyota 4Runner with the ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir CDCV front coilover kit, part number 58795C. Designed for demanding street and off-road use, this vehicle-specific system provides adjustable front lift from 1.25 to 3 inches while maintaining carefully matched shock length and valving for improved ride quality, suspension control, and usable wheel travel. The kit is optimized for 4WD models and also fits 2WD applications; for maximum travel on 2WD models, ICON recommends a 2WD-specific application.
The 2.5-inch shock bodies provide greater piston surface area than stock components, while the remote reservoirs increase oil volume and cooling capacity. This helps manage heat during hard use and reduces the risk of cavitation and damper fade. ICON Compression Damping Control Valves provide 10 external compression adjustment settings, allowing the suspension to be tuned for daily driving, technical crawling, or high-speed desert terrain. When combined with compatible ICON 2.5 Aluminum Series CDCV rear shocks, the system helps create balanced front-to-rear vehicle control.
Built for long-term performance, the ICON 58795C features corrosion-resistant CAD-plated shock bodies, 7/8-inch shock shafts, FK rod end bearings, and CNC-machined 6061 aircraft-grade aluminum components. ICON-engineered coil springs support the adjustable ride height, while the fully rebuildable and re-tunable design allows the shocks to be serviced and customized over time. The kit is engineered for the 2025 and 2026 Toyota 4Runner and pairs with an ICON front differential drop on 4WD models to help maximize suspension travel.

Features:

• 2.5-inch diameter shock bodies with remote reservoirs provide increased oil capacity, cooling, and consistent performance

• Vehicle-specific valving improves shock damping, vehicle control, and ride quality over stock

• Vehicle-specific shock length and compatibility with an ICON front differential drop help maximize wheel travel on 4WD models

• Height-adjustable coilovers provide 1.25 to 3 inches of front lift adjustment over stock

• ICON CDCV offers 10 settings of external compression damping adjustment

• Corrosion-resistant CAD-plated shock bodies with 7/8-inch diameter shafts resist wear and corrosion

• FK rod end bearings promote extended service life and minimal deflection

• CNC-machined 6061 aircraft-grade aluminum components provide strength and precision

• Fully rebuildable and re-tunable design supports long-term serviceability

• ICON-engineered coil springs support reliable lift height and suspension performance

Compatible With
2025 Toyota 4Runner
2026 Toyota 4Runner
