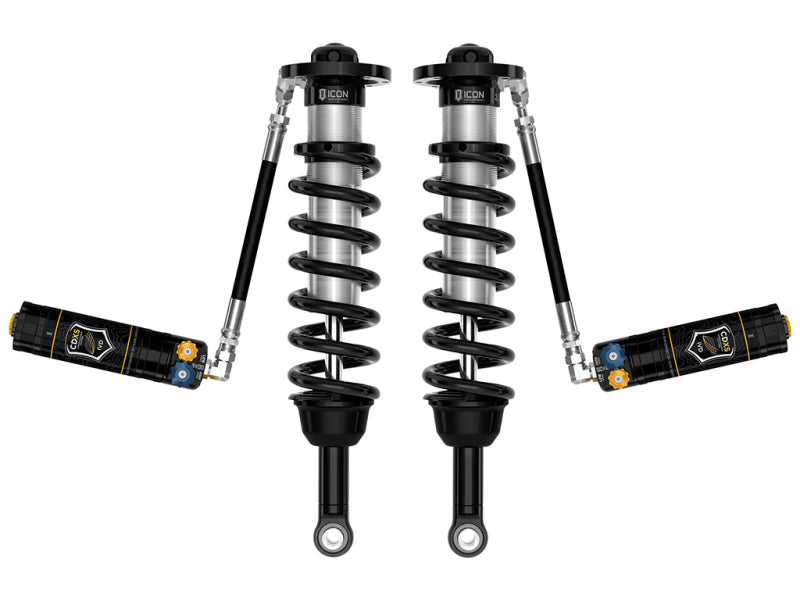

ICON 58780X Vehicle Dynamics 2.5 Series Front Remote Reservoir CDXS Coilover Shocks for 2024-2026 Toyota Tacoma

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2024-2026 Toyota Tacoma. These adjustable coilovers allow up 1.25-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving, their large 2.5” shock body with increased piston surface area over stock components, and their pairing with an ICON front differential drop (4WD only), yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma. ICON 2.5 Series front coilover shocks are an incredible upgrade for the 4th gen Toyota Tacoma. These adjustable coilovers allow up 1.25-3” of lift with vehicle-specific shock length and valving for superior ride quality and performance. APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.

• ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
• Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
• Vehicle specific shock length and pairing with front differential drop yields maximum wheel travel
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• Height-adjustable coilovers offer 1.25-3" of lift height adjustment over stock
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• FK rod end bearings for extended longevity and minimal deflection
• 6061 Aircraft grade aluminum CNC machined components
• 2.5" diameter shock bodies with remote reservoirs
• Fully rebuildable and re-tunable
• ICON engineered coil springs

Upgrade the front suspension of your 2024-2026 Toyota Tacoma with ICON Vehicle Dynamics 2.5 Series remote reservoir coilover shocks, part number 58780X. Designed specifically for the fourth-generation Tacoma, this height-adjustable coilover system delivers improved ride quality, suspension control, and off-road performance compared with stock components. The adjustable design provides 1.25 to 3 inches of lift over stock, helping accommodate larger and more aggressive wheel and tire combinations. Advertised lift range applies to a stock-equipped vehicle; added accessory weight may affect the final lift height.
The vehicle-specific shock length and valving are engineered to maximize usable wheel travel, while pairing with an ICON front differential drop on 4WD models helps maintain proper drivetrain geometry. Large 2.5-inch shock bodies increase piston surface area over factory components, and remote reservoirs add oil capacity and heat-dissipation surface area to help resist overheating, cavitation, and damper fade during extended off-road use. ICON CDXS technology provides independent high-speed and low-speed compression adjustment, with 10 detented settings for each adjustment range to help tailor handling response and overall suspension aggressiveness.
Built for long-term performance, these ICON coilovers feature corrosion-resistant CAD-plated shock bodies, 7/8-inch shock shafts, FK rod end bearings, ICON-engineered coil springs, and CNC-machined 6061 aircraft-grade aluminum components. The shocks are fully rebuildable and re-tunable for continued serviceability. Pair them with ICON 2.0 or 2.5 Aluminum Series rear shocks to help balance vehicle control from front to rear and achieve a more consistent driving experience on pavement and trails. This system is designed for applicable 2024-2026 Toyota Tacoma applications; verify vehicle configuration and drivetrain before installation.

Features:

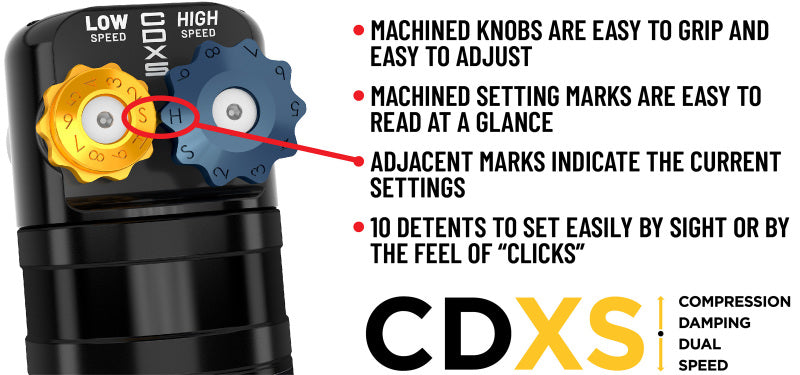

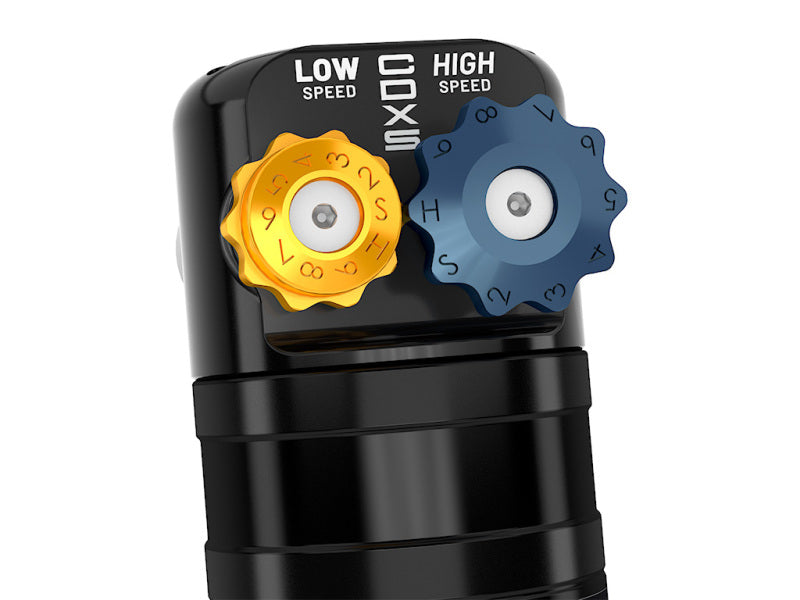

• ICON CDXS adjustment provides independent high-speed and low-speed compression control with 10 detented settings for each range

• Vehicle-specific valving improves shock damping, vehicle control, and ride quality over stock suspension components

• Vehicle-specific shock length and compatibility with an ICON front differential drop maximize available wheel travel on 4WD models

• Remote reservoirs increase shock oil volume and heat-dissipation surface area for improved performance during extended off-road use

• Height-adjustable coilovers provide 1.25 to 3 inches of lift over stock

• Corrosion-resistant CAD-plated shock bodies with 7/8-inch diameter shafts

• FK rod end bearings provide extended service life and reduced deflection

• CNC-machined 6061 aircraft-grade aluminum components

• 2.5-inch shock bodies with remote reservoirs

• Fully rebuildable and re-tunable design

• ICON-engineered coil springs

Compatible With
2024 Toyota Tacoma
2025 Toyota Tacoma
2026 Toyota Tacoma
