ICON 58780E 2.5 Series CDEV Remote Reservoir Front Coilover Kit for 2024-2026 Toyota Tacoma

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2024-2026 Toyota Tacoma. These adjustable coilovers allow up 1.25-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving, their large 2.5” shock body with increased piston surface area over stock components, and their pairing with an ICON front differential drop (4WD only), yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly. When paired with ICON 2.5 Aluminum Series CDEV rear shock absorbers, vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma. ICON 2.5 Series front coilover shocks are an incredible upgrade for the 4th gen Toyota Tacoma. These adjustable coilovers allow up 1.25-3” of lift with vehicle-specific shock length and valving for superior ride quality and performance. APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.

• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
• Vehicle specific shock length and pairing with front differential drop yields maximum wheel travel
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• Height-adjustable coilovers offer 1.25-3" of lift height adjustment over stock
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• FK rod end bearings for extended longevity and minimal deflection
• 6061 Aircraft grade aluminum CNC machined components
• 2.5" diameter shock bodies with remote reservoirs
• Fully rebuildable and re-tunable
• ICON engineered coil springs

Upgrade the front suspension of your 2024-2026 Toyota Tacoma with the ICON 58780E Vehicle Dynamics 2.5 Series CDEV remote reservoir coilover kit. Designed specifically for the 4th-generation Tacoma, these height-adjustable front coilovers provide approximately 1.25 to 3 inches of lift over stock, helping accommodate larger wheel and tire combinations while improving suspension control and ride quality on the street and trail. Vehicle-specific shock length and valving are engineered to maximize available wheel travel, particularly when paired with an ICON front differential drop on four-wheel-drive models.

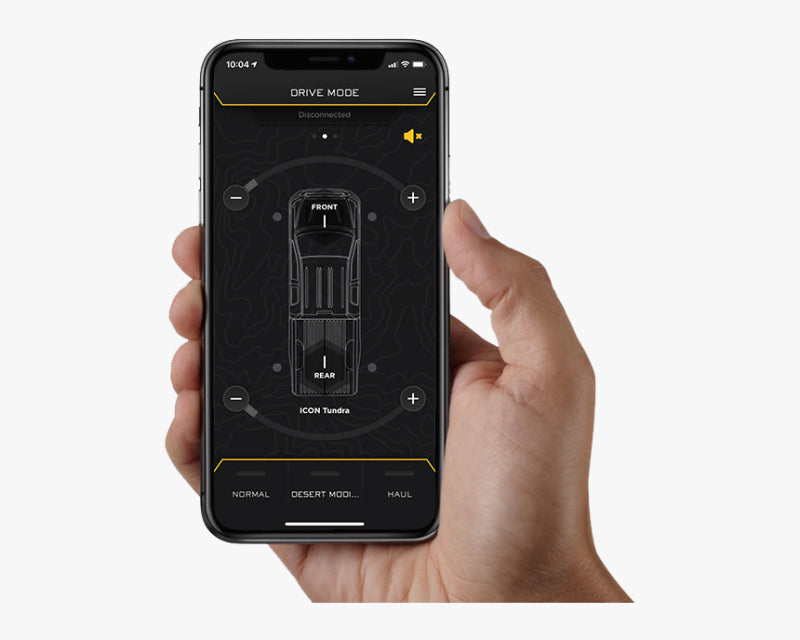

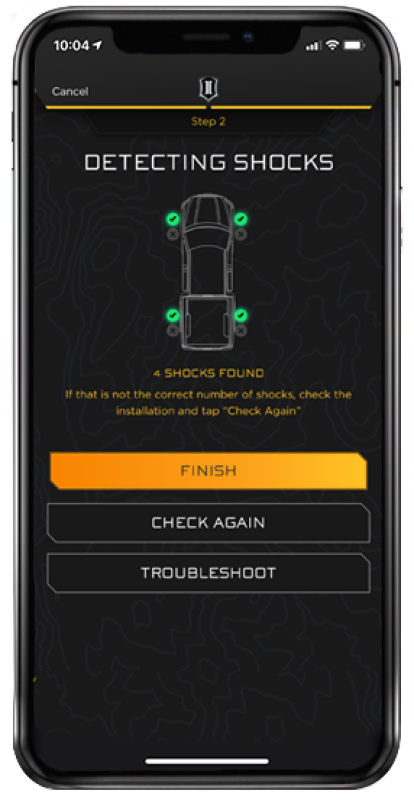

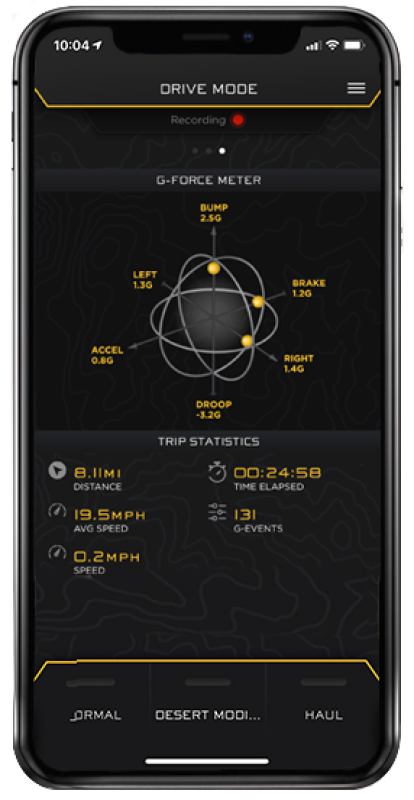

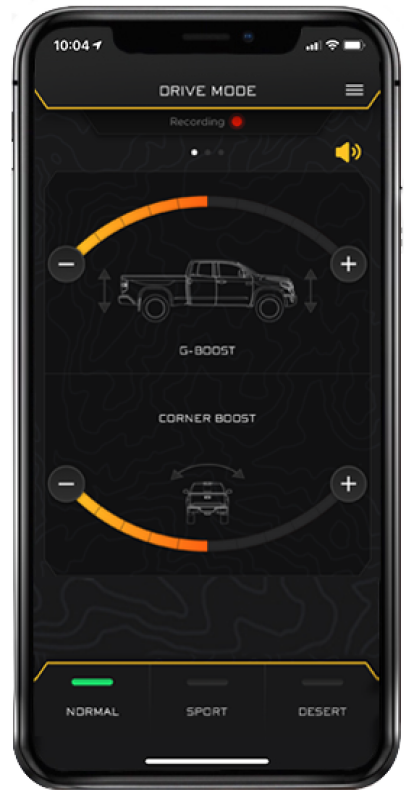

The included Compression Damping Electronic Valve (CDEV) provides convenient, in-vehicle adjustment of compression damping. Integrated with ICON Intelligent Control and the ICON mobile app, the system uses onboard G-force and gyroscope data along with user-defined settings to adjust damping for changing terrain. The electronically controlled valve can respond in less than 40 milliseconds and delivers precise, continuously variable compression control. When combined with compatible ICON 2.5 Aluminum Series CDEV rear shocks, the system helps provide balanced front-to-rear suspension performance.

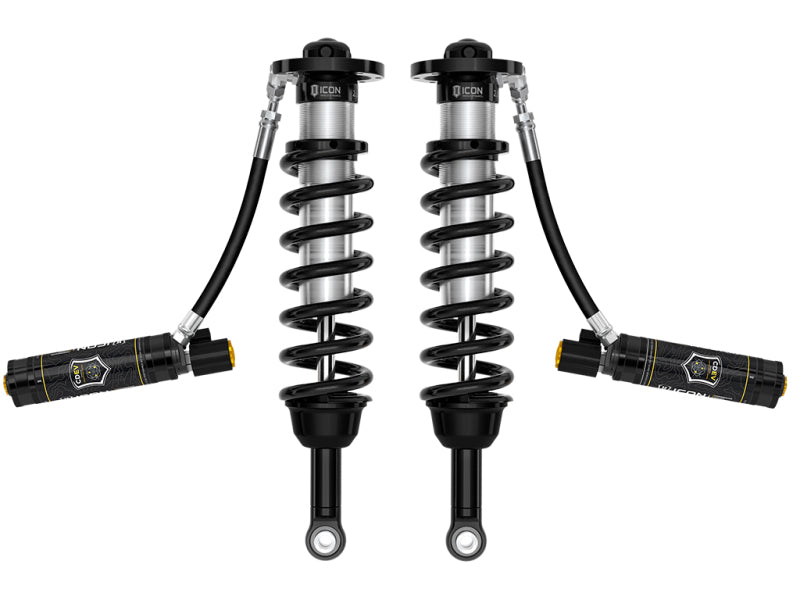

Each coilover features a 2.5-inch shock body, remote reservoir, corrosion-resistant CAD-plated finish, and a 7/8-inch shaft for durability during extended off-road use. The remote reservoirs increase fluid volume and heat-dissipation capacity to help resist overheating, cavitation, and damping fade. ICON-engineered coil springs, FK rod end bearings, and CNC-machined 6061 aircraft-grade aluminum components complete the assembly. The coilovers are fully rebuildable and re-tunable for long-term serviceability. Advertised lift height applies to a stock-equipped vehicle; added accessories and vehicle weight may alter the achievable lift range.

Features:

• CDEV technology enables in-vehicle compression damping adjustment through ICON Intelligent Control

• Electronically controlled damping responds in less than 40 milliseconds for precise suspension tuning

• Vehicle-specific shock length and valving improve ride quality, control, and available wheel travel

• Height-adjustable coilovers provide approximately 1.25 to 3 inches of lift over stock

• Remote reservoirs help maintain cooler operating temperatures during extended off-road driving

• 2.5-inch shock bodies with corrosion-resistant CAD-plated finish

• 7/8-inch shock shafts provide strength and durability

• FK rod end bearings support extended service life and minimal deflection

• CNC-machined 6061 aircraft-grade aluminum components

• ICON-engineered coil springs are included

• Fully rebuildable and re-tunable design

• Compatible with 2024-2026 Toyota Tacoma models

Compatible With
2024 Toyota Tacoma
2025 Toyota Tacoma
2026 Toyota Tacoma
