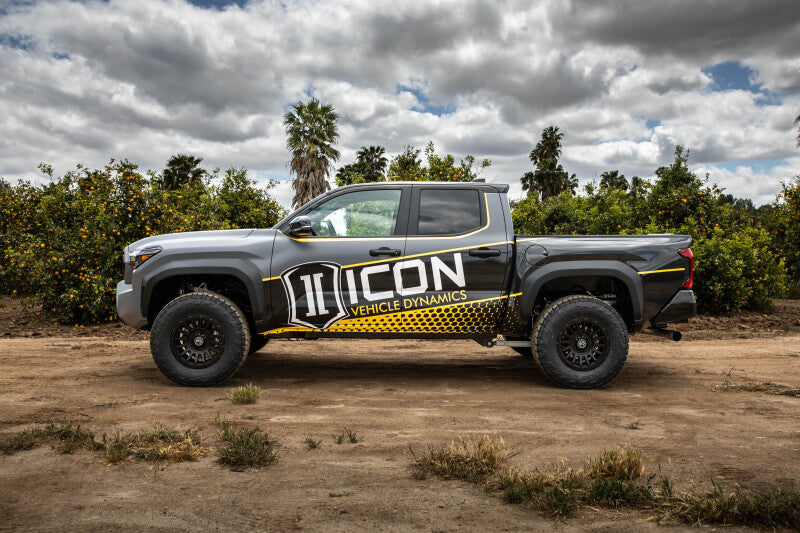

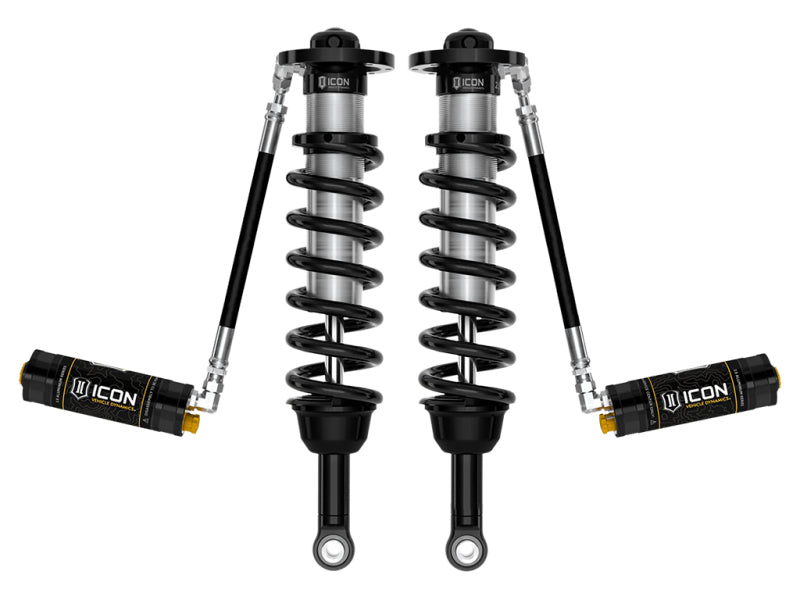

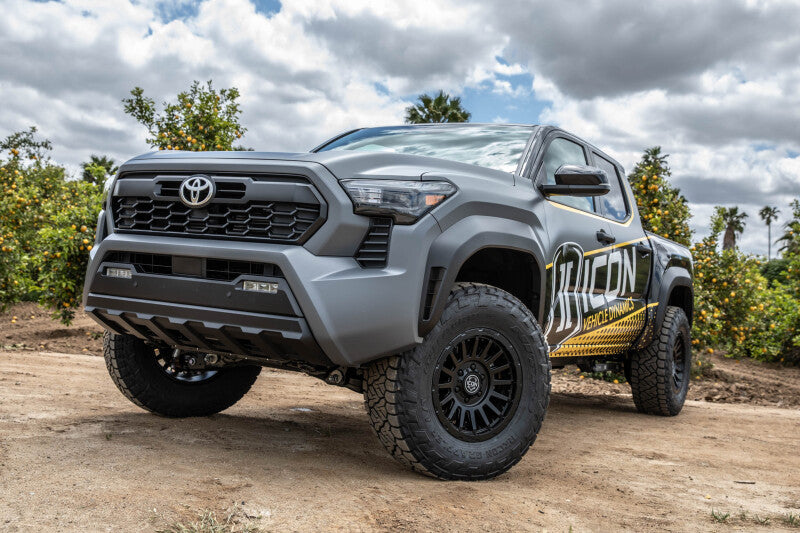

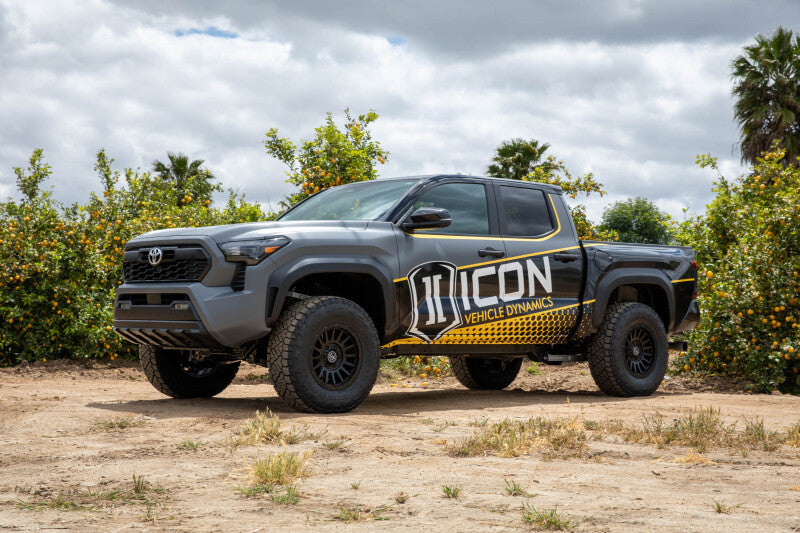

ICON 58780C V.S. 2.5 Series Remote Reservoir Front Coilover Kit for 2024-2026 Toyota Tacoma

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2024-2026 Toyota Tacoma. These adjustable coilovers allow up 1.25-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving, their large 2.5” shock body with increased piston surface area over stock components, and their pairing with an ICON front differential drop (4WD only), yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma. ICON 2.5 Series front coilover shocks are an incredible upgrade for the 4th gen Toyota Tacoma. These adjustable coilovers allow up 1.25-3” of lift with vehicle-specific shock length and valving for superior ride quality and performance. APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.

• Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
• Vehicle specific shock length and pairing with front differential drop yields maximum wheel travel
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• Height-adjustable coilovers offer 1.25-3" of lift height adjustment over stock
• ICON CDCV equipped for 10 settings of external compression damping adjustment
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• FK rod end bearings for extended longevity and minimal deflection
• 6061 Aircraft grade aluminum CNC machined components
• 2.5" diameter shock bodies with remote reservoirs
• Fully rebuildable and re-tunable
• ICON engineered coil springs

Upgrade the front suspension of your 2024-2026 Toyota Tacoma with the ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover kit, part number 58780C. Designed specifically for the fourth-generation Tacoma, this height-adjustable system provides approximately 1.25-3 inches of lift over stock, helping accommodate larger wheel and tire combinations while improving suspension control and ride quality on and off the road.
ICON vehicle-specific shock length and valving are engineered to maximize wheel travel and deliver balanced damping performance. The 2.5-inch shock bodies provide increased piston surface area compared with stock components, while remote reservoirs increase oil volume and heat-dissipation capacity during extended off-road use. This helps resist overheating, cavitation, and damper fade during demanding trail driving, rock crawling, and high-speed desert use. The kit is designed to pair with an ICON front differential drop on four-wheel-drive models for optimized suspension geometry and maximum available travel.
Each coilover includes an ICON Compression Damping Control Valve (CDCV) with 10 settings of external compression adjustment. This allows drivers to fine-tune suspension behavior for street driving, technical terrain, or aggressive off-road conditions. Corrosion-resistant CAD-plated shock bodies, 7/8-inch shafts, FK rod-end bearings, and CNC-machined 6061 aircraft-grade aluminum components provide long-term durability. The coilovers are fully rebuildable and re-tunable and include ICON-engineered coil springs. Advertised lift range applies to a stock-equipped vehicle; added accessory weight may change the achievable lift height. Pair with ICON 2.0 or 2.5 Aluminum Series rear shocks for balanced front-to-rear vehicle control.

Features:

• Vehicle-specific tuning: Optimized shock damping, vehicle control, and ride quality for the 2024-2026 Toyota Tacoma

• Adjustable lift height: Provides approximately 1.25-3 inches of front lift over stock

• Remote reservoirs: Increase fluid capacity and heat dissipation for consistent performance during extended off-road use

• Maximum wheel travel: Vehicle-specific shock length and compatibility with an ICON front differential drop help optimize suspension travel

• External compression adjustment: ICON CDCV provides 10 settings for precise suspension tuning

• Durable shock construction: Corrosion-resistant CAD-plated bodies with 7/8-inch diameter shafts

• Long-lasting rod ends: FK rod-end bearings help reduce deflection and extend service life

• Aircraft-grade materials: CNC-machined 6061 aluminum components provide strength and durability

• Rebuildable design: Fully rebuildable and re-tunable for long-term serviceability

• Engineered coil springs: Includes ICON-designed coil springs for vehicle-specific performance

Compatible With
2024 Toyota Tacoma
2025 Toyota Tacoma
2026 Toyota Tacoma
