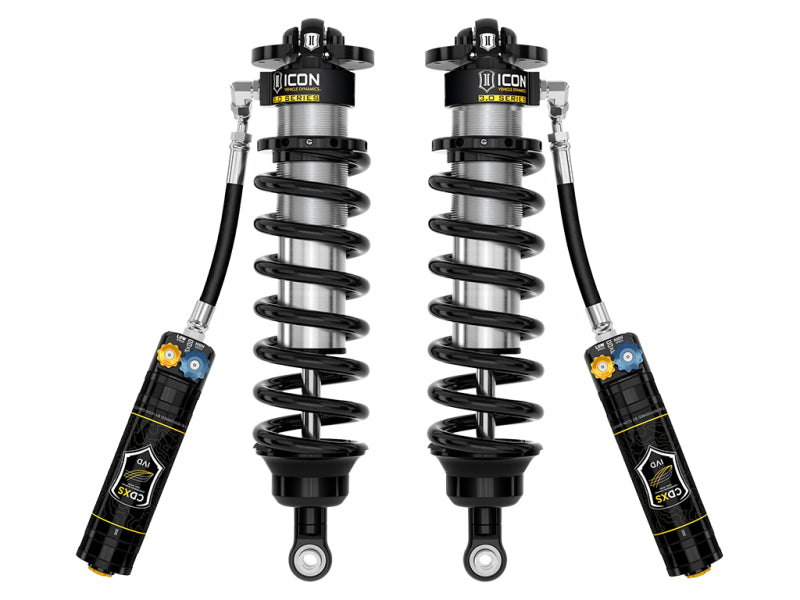

ICON 58775X 3.0 Series VS RR CDXS Coilover Kit for 2022-2025 Toyota Tundra and 2023 Toyota Sequoia

3.0 Series shocks boast 50% more piston surface area in the ride zone of the shock's travel, and 100% in the “Bump Zone”, compared to 2.5 Series shocks. This translates into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions. The multi-stage hydraulic Bump Zone featured in these 3.0 Series shocks exponentially increases bottom-out resistance as the shock travels through the last 40% of travel, keeping vehicle dynamics in check during those hard hits or unexpected obstacles. ICON’s Vehicle-specific shock length and valving along with the larger 3.0” shock body and increased piston area over stock yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. APPLICATION NOTE #374: Tundra lift heights above 2.25” require sway bar drop bracket kit part number 55154. Required for all lift heights on Tundra TRD Pro and Sequoia. When installing 55154 on model equipped with TRD Off-Road package or TRD Pro, part number 55164 is also required.

• ICON’s multi-stage, tunable hydraulic “Bump Zone” exponentially increases bottom-out resistance in the last 40% of compression travel

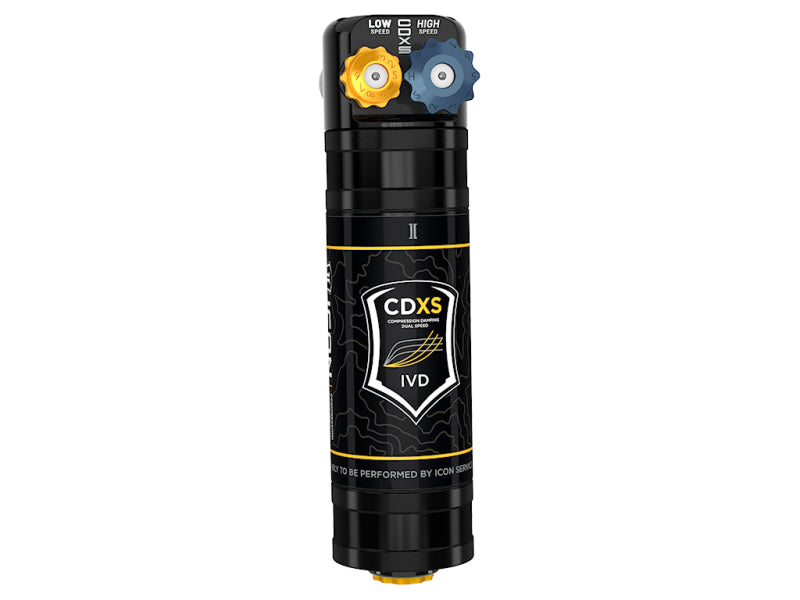

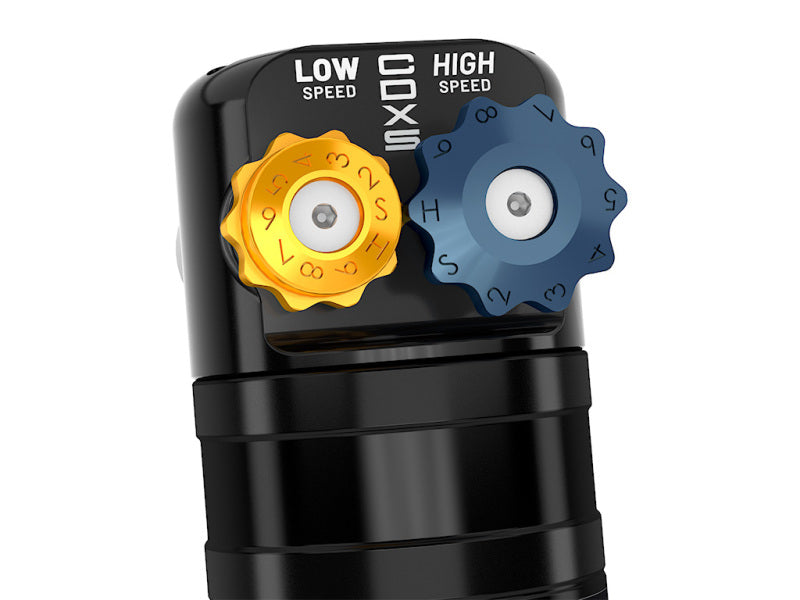

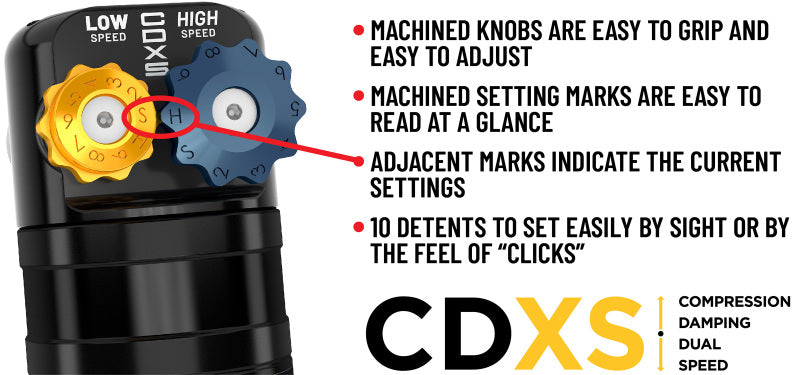

• ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
• Adjustable up to 1.25-3.25" of front lift height over stock on Tundra or 3-4.25" of front lift on Sequoia
• PTFE lined spherical bearings for extended longevity and minimal deflection
• Vehicle specific design and tuning for superior shock damping and control
• 3.0” Body diameter for increased oil volume and larger piston area
• CNC machined 6061 aluminum components with a black anodized finish
• 7/8” diameter induction hardened, chrome plated shock shafts
• 40% increase in front wheel travel over stock
• Fully Rebuildable and Re-tunable

The ICON 3.0 Series VS RR CDXS Coilover Kit, part number 58775X, is engineered to deliver advanced suspension control for the 2022-2025 Toyota Tundra and 2023 Toyota Sequoia. Its larger 3.0-inch shock body and increased piston surface area provide greater stability, improved damping, and enhanced vehicle control during demanding off-road driving while maintaining refined performance on the street. Compared with ICON 2.5 Series shocks, the 3.0 Series offers 50% more piston surface area in the primary ride zone and 100% more in the Bump Zone.
The multi-stage hydraulic Bump Zone progressively increases bottom-out resistance through the final 40% of compression travel, helping control suspension movement during hard impacts, large obstacles, and aggressive terrain. ICON CDXS technology provides independent high-speed and low-speed compression adjustment, allowing drivers to fine-tune handling response and suspension aggressiveness. Vehicle-specific shock lengths and valving are matched to each application for maximum available travel and consistent ride quality.
The coilover system provides front lift adjustment from 1.25 to 3.25 inches over stock on the Toyota Tundra and from 3 to 4.25 inches on the Toyota Sequoia. Installation on Tundra models with more than 2.25 inches of lift requires ICON sway bar drop bracket kit 55154. Kit 55154 is required at all lift heights on Tundra TRD Pro and Sequoia models; vehicles equipped with the TRD Off-Road package or TRD Pro also require part number 55164 when installing 55154. The shocks feature PTFE-lined spherical bearings, CNC-machined 6061 aluminum components with black anodized finishes, and 7/8-inch induction-hardened chrome-plated shafts.
Designed for long-term performance, the ICON 58775X coilover kit is fully rebuildable and re-tunable. It increases front wheel travel by 40% over stock and provides durable, vehicle-specific suspension performance for drivers who demand precise control on and off the road.

Features:

• ICON multi-stage, tunable hydraulic Bump Zone increases bottom-out resistance through the final 40% of compression travel

• CDXS adjustment provides independent control of high-speed and low-speed compression force

• Adjustable from 1.25 to 3.25 inches of front lift over stock on Toyota Tundra models

• Adjustable from 3 to 4.25 inches of front lift on Toyota Sequoia models

• Vehicle-specific shock design and valving deliver controlled damping and improved ride quality

• 3.0-inch shock body increases oil volume and piston surface area

• PTFE-lined spherical bearings provide durability and minimize deflection

• CNC-machined 6061 aluminum components feature a black anodized finish

• 7/8-inch induction-hardened, chrome-plated shock shafts resist wear

• Provides a 40% increase in front wheel travel over stock

• Fully rebuildable and re-tunable for long-term serviceability

Compatible With
2022 Toyota Tundra
2023 Toyota Sequoia
2023 Toyota Tundra
2024 Toyota Sequoia
2024 Toyota Tundra
2025 Toyota Sequoia
2025 Toyota Tundra
2026 Toyota Sequoia
2026 Toyota Tundra
