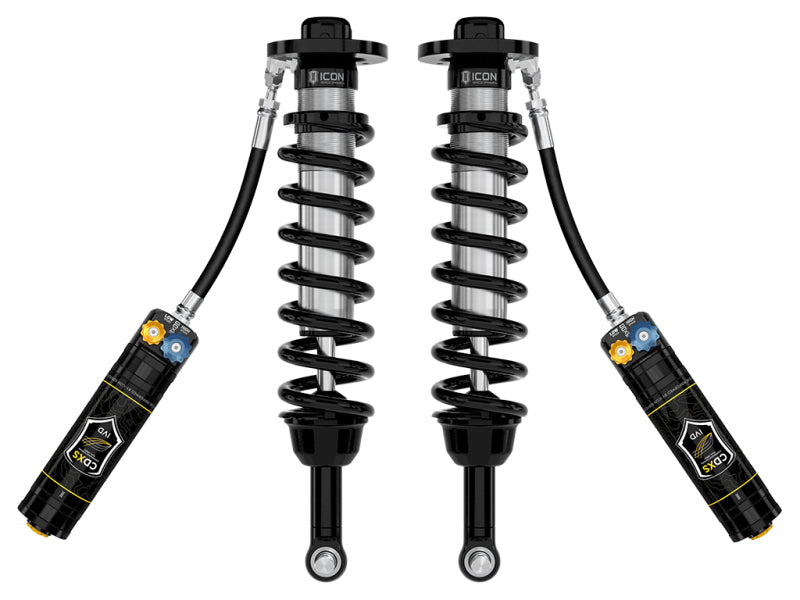

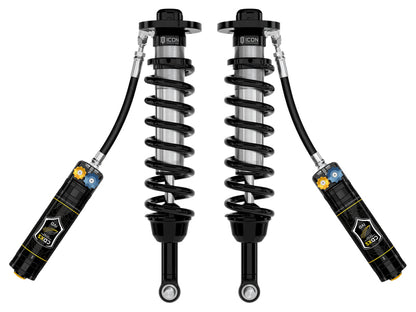

ICON 58771X V.S. 2.5 Series CDXS Remote Reservoir Front Coilover Kit for 2022-2026 Toyota Tundra

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2022-2026 Toyota Tundra. These adjustable coilovers are specifically designed for use the ICON 6" Lift Performance Suspension System and allow up to 5-6” of front lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tundra. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.

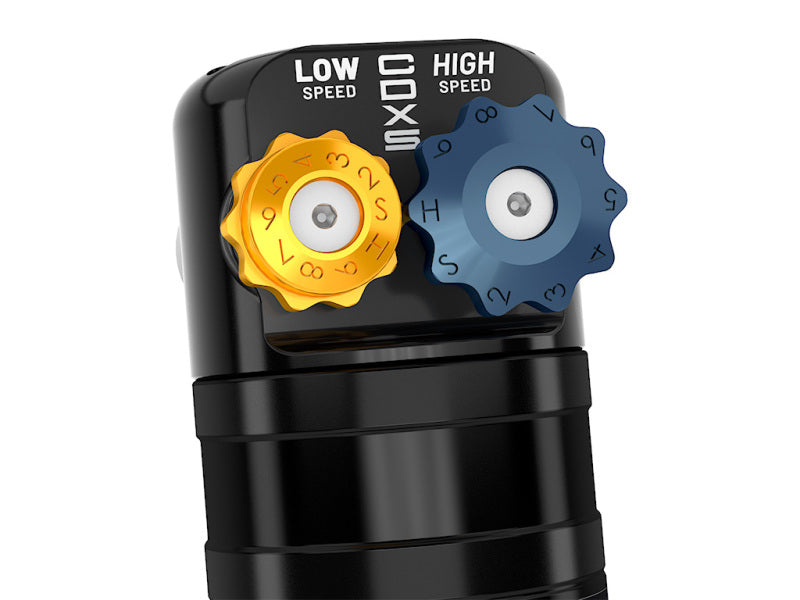

• ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness

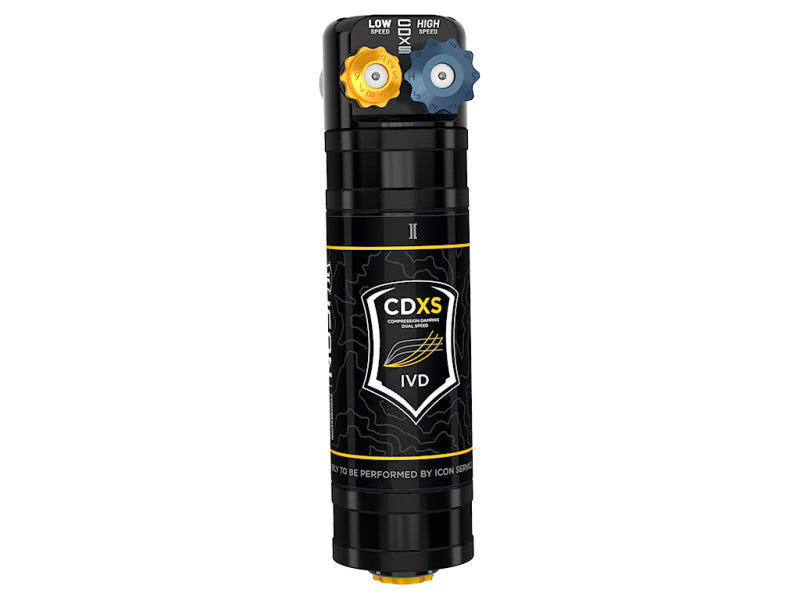

• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• Specific length designed for use with ICON 6" Lift Performance Suspension System
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• FK rod end bearings for extended longevity and minimal deflection
• Vehicle specific tuned for superior shock damping and control
• Increased wheel travel and improved ride quality over stock
• Adjustable ride height offers 5-6" of front lift over stock
• 6061 Aircraft grade aluminum CNC machined components
• Fully rebuildable and re-tunable
• ICON engineered coil springs

Upgrade the front suspension of your 2022-2026 Toyota Tundra with the ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir coilover kit, part number 58771X. Designed specifically for use with the ICON 6-inch Lift Performance Suspension System, this adjustable kit provides approximately 5-6 inches of front lift height adjustment. The increased ride height helps accommodate larger wheel and tire combinations while maintaining vehicle-specific suspension geometry, control, and ride quality.
ICON-engineered shock length and valving, combined with a larger 2.5-inch shock body and increased piston area, deliver maximum available wheel travel and improved damping performance compared with stock components. Remote reservoirs increase shock fluid capacity and heat dissipation to help resist overheating, cavitation, and damper fade during demanding off-road driving. The included Compression Damping Dual Speed (CDXS) valves provide independent control of high-speed and low-speed compression, allowing drivers to tune handling response and overall suspension aggressiveness with 10 detented settings for each adjustment range.
The ICON 58771X coilover kit features corrosion-resistant CAD-plated shock bodies, 7/8-inch shafts, FK rod end bearings, 6061 aircraft-grade aluminum CNC-machined components, and ICON-engineered coil springs. The components are fully rebuildable and re-tunable for long-term serviceability. Pairing these front coilovers with ICON 2.0 or 2.5 Aluminum Series rear shocks helps balance damping performance from front to rear for improved control on pavement and off-road terrain. Advertised lift ranges are based on a stock-equipped vehicle; added accessory weight may affect the final lift height and suspension performance. Professional installation and alignment are recommended.

Features:

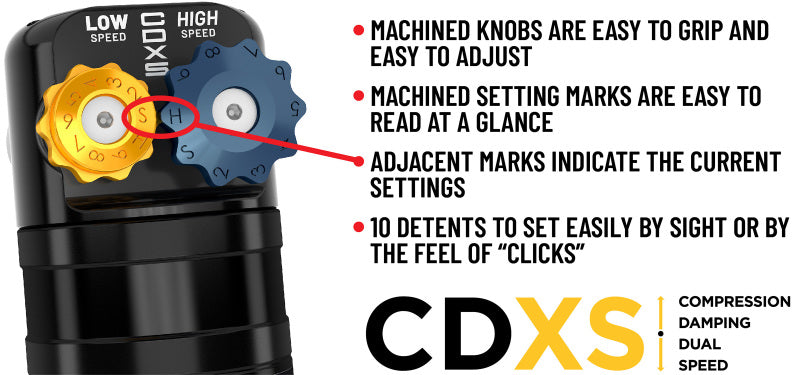

• CDXS adjustment provides independent high-speed and low-speed compression control for handling response and suspension aggressiveness

• Remote reservoirs increase fluid capacity and help maintain cooler operating temperatures during extended off-road use

• Vehicle-specific shock length and valving designed for the ICON 6-inch Lift Performance Suspension System

• Adjustable ride height provides approximately 5-6 inches of front lift over stock

• Larger 2.5-inch shock bodies and increased piston area improve travel, damping, and ride quality

• Corrosion-resistant CAD-plated shock bodies with 7/8-inch shafts

• FK rod end bearings provide extended longevity and minimal deflection

• 6061 aircraft-grade aluminum CNC-machined components

• ICON-engineered coil springs included

• Fully rebuildable and re-tunable design

Compatible With
2022 Toyota Tundra
2023 Toyota Tundra
2024 Toyota Tundra
2025 Toyota Tundra
2026 Toyota Tundra
