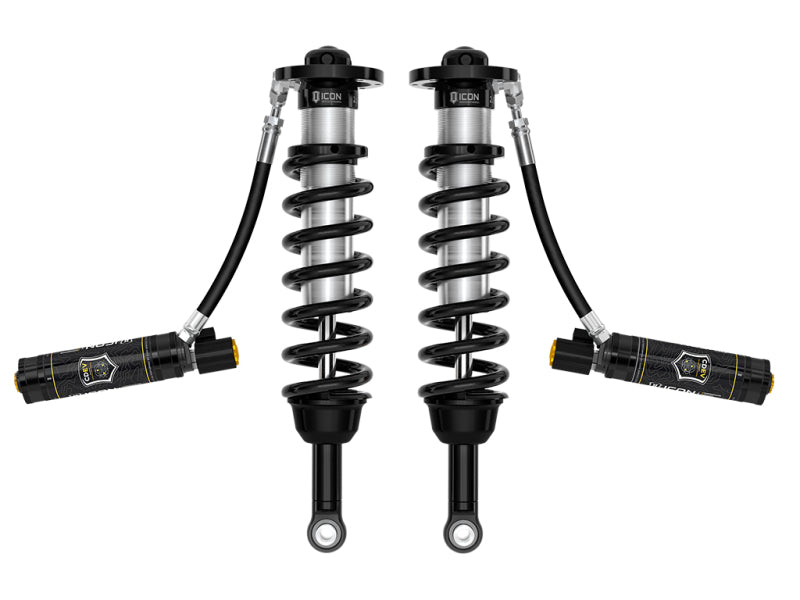

ICON 58771E 2022-2026 Toyota Tundra 2.5 VS Remote Reservoir CDEV Front Coilover Kit

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2022-2026 Toyota Tundra. These adjustable coilovers are specifically designed for use the ICON 6" Lift Performance Suspension System and allow up to 5-6” of front lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly. When paired with 2.5 Aluminum Series CDEV rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tundra. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. APPLICATION NOTE #383: Requires additional components to complete system. DO NOT attempt install without part numbers 51010, 51011, 51012, 51014, and 51017.

• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• Specific length designed for use with ICON 6" Lift Performance Suspension System
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• FK rod end bearings for extended longevity and minimal deflection
• Vehicle specific tuned for superior shock damping and control
• Increased wheel travel and improved ride quality over stock
• Adjustable ride height offers 5-6" of front lift over stock
• 6061 Aircraft grade aluminum CNC machined components
• Fully rebuildable and re-tunable
• ICON engineered coil springs

Upgrade the front suspension of your 2022-2026 Toyota Tundra with the ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover kit, Part Number 58771E. Designed specifically for use with the ICON 6-inch Lift Performance Suspension System, this adjustable coilover delivers up to 5-6 inches of front lift adjustment for accommodating larger wheel and tire combinations. Vehicle-specific shock length, valving, and increased piston area provide enhanced wheel travel, ride quality, and suspension control on pavement and demanding off-road terrain.
The included Compression Damping Electronic Valve (CDEV) enables precise, in-vehicle adjustment of compression damping through ICON Intelligent Control and the ICON mobile app. The electronically controlled valve can respond in less than 40 milliseconds, using onboard G-force and gyroscope data along with user-defined settings to adapt damping performance to changing terrain. When combined with compatible ICON 2.5 Aluminum Series CDEV rear shocks, the system helps maintain balanced front-to-rear control for a more consistent driving experience.
Remote reservoirs increase shock oil capacity and heat-dissipation surface area, helping resist overheating, cavitation, and damping fade during extended off-road use. The coilovers feature corrosion-resistant CAD-plated shock bodies, 7/8-inch shafts, FK rod end bearings, ICON-engineered coil springs, and CNC-machined 6061 aircraft-grade aluminum components. The shocks are fully rebuildable and re-tunable for long-term serviceability and performance. Installation requires additional components; do not attempt installation without ICON Part Numbers 51010, 51011, 51012, 51014, and 51017.

Features:

• CDEV technology allows in-vehicle compression damping adjustment through ICON Intelligent Control

• Remote reservoirs help maintain cooler operating temperatures during extended off-road use

• Vehicle-specific shock length designed for the ICON 6-inch Lift Performance Suspension System

• Adjustable ride height provides approximately 5-6 inches of front lift over stock

• Vehicle-specific tuning delivers improved shock damping and suspension control

• Increased wheel travel and ride quality compared with stock components

• Corrosion-resistant CAD-plated shock bodies with 7/8-inch shafts

• FK rod end bearings provide extended longevity and minimal deflection

• CNC-machined 6061 aircraft-grade aluminum components

• ICON-engineered coil springs

• Fully rebuildable and re-tunable design

• Fits 2022-2026 Toyota Tundra applications

Compatible With
2022 Toyota Tundra
2023 Toyota Tundra
2024 Toyota Tundra
2025 Toyota Tundra
2026 Toyota Tundra
