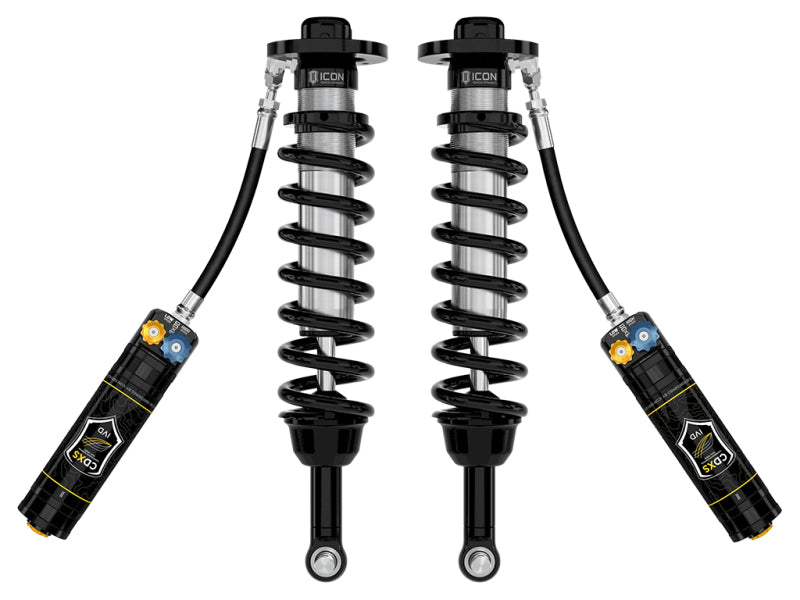

ICON 58770X V.S. 2.5 Series CDXS Remote Reservoir Front Coilover Kit for Toyota Tundra and Sequoia

$2,549.95

Skip to product information
1 of 8

Regular price $2,549.95
Sale price $2,549.95 Regular price $2,549.95
Shipping calculated at checkout.
ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2022-2026 Toyota Tundra or 2023-2026 Toyota Sequoia. These adjustable coilovers allow up to 1.25-3.5” of lift height adjustability on Tundra or 3.5-4.5" of front lift on Sequoia, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness. When paired with ICON 2.0 or 2.5 Aluminum Series rear coilovers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tundra or Sequoia. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. APPLICATION NOTE #374: Tundra lift heights above 2.25” require sway bar drop bracket kit part number 55154. Required for all lift heights on Tundra TRD Pro and Sequoia. When installing 55154 on model equipped with TRD Off-Road package or TRD Pro, part number 55164 is also required.
  • ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
  • Adjustable up to 1.25-3.5" of front lift height over stock on Tundra or 3-4.5" of front lift on Sequoia

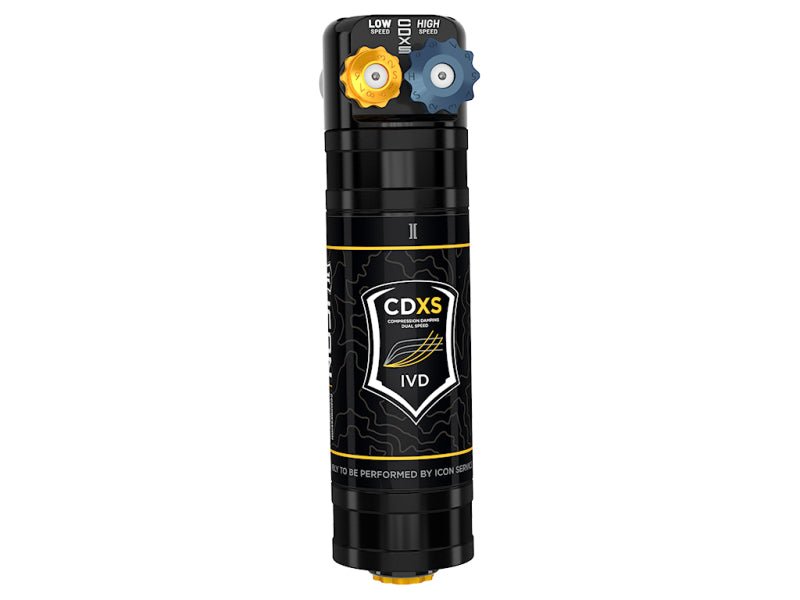

  • Remote reservoirs maintain cooler operating temperatures during extended off-road use
  • Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
  • FK rod end bearings for extended longevity and minimal deflection
  • Vehicle specific tuned for superior shock damping and control
  • Increased wheel travel and improved ride quality over stock
  • 6061 Aircraft grade aluminum CNC machined components
  • Fully rebuildable and re-tunable
  • ICON engineered coil springs

Upgrade the front suspension of your 2022–2026 Toyota Tundra or 2023–2026 Toyota Sequoia with the ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir coilover kit, part number 58770X. Vehicle-specific shock length, valving, and ICON-engineered coil springs provide increased wheel travel, improved ride quality, and enhanced suspension control on pavement and off-road terrain. Adjustable front lift height helps accommodate larger wheel and tire combinations while maintaining a properly tuned suspension system.

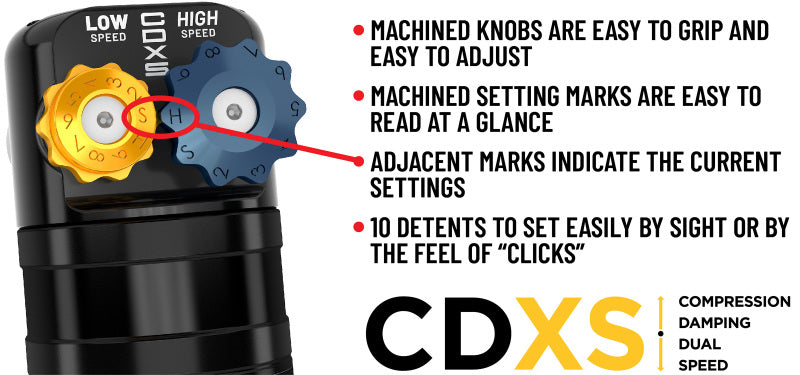

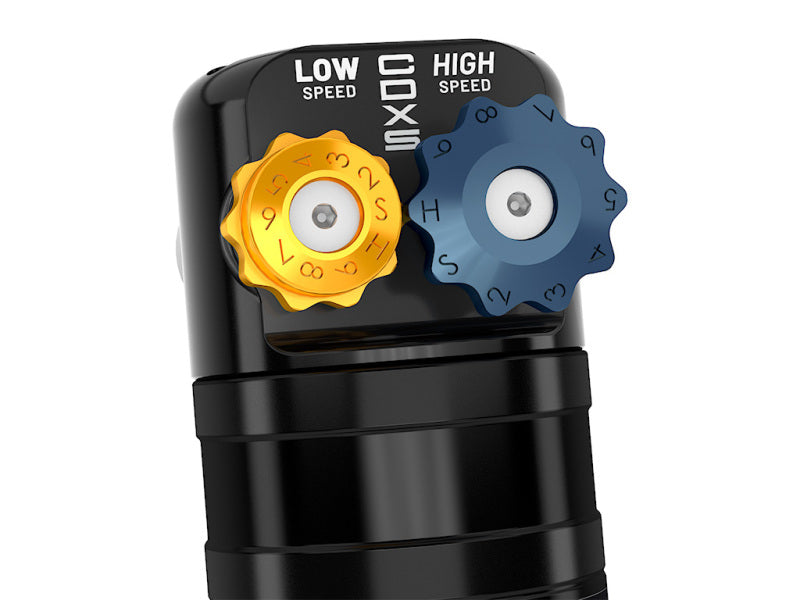

The larger 2.5-inch shock body and increased piston area improve damping performance over stock components. Remote reservoirs increase fluid capacity and cooling surface area to help control operating temperatures during extended or aggressive off-road use, reducing the risk of cavitation and damper fade. ICON’s Compression Damping Dual Speed (CDXS) technology provides independent high-speed and low-speed compression adjustment, with 10 detented settings for each adjustment range. This allows drivers to fine-tune handling response, ride firmness, and suspension aggressiveness for changing terrain and driving conditions.
Durable construction includes corrosion-resistant CAD-plated shock bodies, 7/8-inch shock shafts, FK rod end bearings, and CNC-machined 6061 aircraft-grade aluminum components. The coilovers are fully rebuildable and re-tunable for long-term serviceability. Pairing this front kit with ICON 2.0 or 2.5 Aluminum Series rear coilovers helps create balanced vehicle control from front to rear. On Tundra models, lift heights above 2.25 inches require sway bar drop bracket kit 55154. Kit 55154 is required for all lift heights on Tundra TRD Pro and Sequoia models; Tundra TRD Off-Road and TRD Pro applications also require part number 55164.

Features:

  • ICON CDXS technology with independent high-speed and low-speed compression adjustment
  • Adjustable front lift height from 1.25 to 3.5 inches on Toyota Tundra applications
  • Adjustable front lift height from 3 to 4.5 inches on Toyota Sequoia applications
  • Remote reservoirs help maintain cooler operating temperatures during extended off-road use
  • Vehicle-specific shock length and valving for improved damping and suspension control
  • Corrosion-resistant CAD-plated shock bodies with 7/8-inch diameter shafts
  • FK rod end bearings provide extended longevity and reduced deflection
  • ICON-engineered coil springs improve ride quality and wheel travel
  • CNC-machined 6061 aircraft-grade aluminum components
  • Fully rebuildable and re-tunable design

Compatible With
2022 Toyota Tundra
2023 Toyota Sequoia
2023 Toyota Tundra
2024 Toyota Sequoia
2024 Toyota Tundra
2025 Toyota Sequoia
2025 Toyota Tundra
2026 Toyota Sequoia
2026 Toyota Tundra
