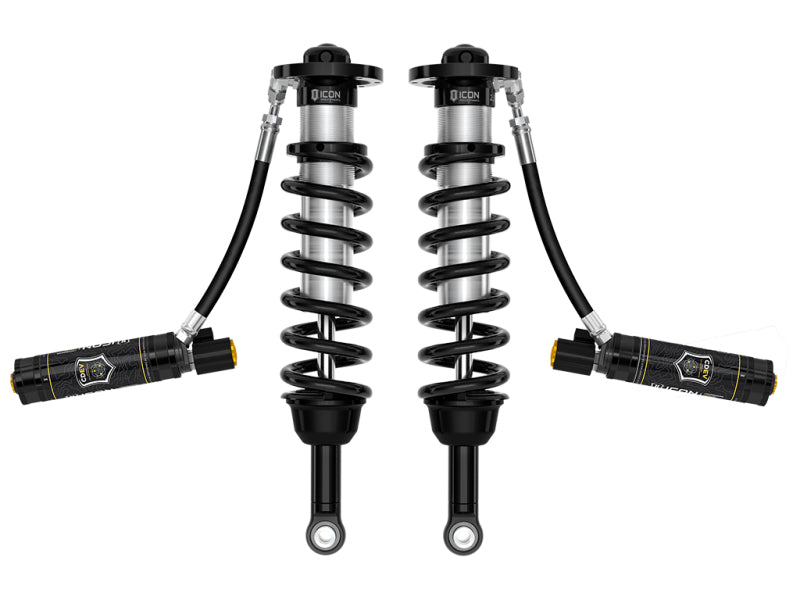

ICON 58770E V.S. 2.5 Series CDEV Remote Reservoir Front Coilover Kit for Toyota Tundra and Sequoia

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks with CDEV are an incredible upgrade for the front end of the 2022-2026 Toyota Tundra and 2023-2026 Toyota Sequoia. These adjustable coilovers allow up to 1.25-3.5” of lift height adjustability on Tundra or 3-4.5" of front lift on Sequoia, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly. When paired with ICON 2.5 or 3.0 Series CDEV rear shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tundra or Sequoia. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. APPLICATION NOTE #374: Tundra lift heights above 2.25” require sway bar drop bracket kit part number 55154. Required for all lift heights on Tundra TRD Pro and Sequoia. When installing 55154 on model equipped with TRD Off-Road package or TRD Pro, part number 55164 is also required.

• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• Adjustable up to 1.25-3.5" of front lift height over stock on Tundra or 3-4.5" of front lift on Sequoia
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• FK rod end bearings for extended longevity and minimal deflection
• Vehicle specific tuned for superior shock damping and control
• Increased wheel travel and improved ride quality over stock
• 6061 Aircraft grade aluminum CNC machined components
• Fully rebuildable and re-tunable
• ICON engineered coil springs

Upgrade the front suspension of your 2022–2026 Toyota Tundra or 2023–2026 Toyota Sequoia with the ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir coilover kit, part number 58770E. Designed for improved control on and off the road, this kit combines vehicle-specific shock length and valving with a larger shock body and increased piston area to deliver greater suspension travel, responsive damping, and a more controlled ride than stock components. Adjustable ride height also accommodates larger wheel and tire combinations while maintaining a properly tuned suspension system.
The integrated ICON CDE Valve provides electronically adjustable compression damping from inside the vehicle. Powered by ICON Intelligent Control and the ICON mobile app, the system uses onboard G-force and gyroscope data along with user-defined settings to adjust damping for changing terrain. The infinitely variable valve can react in less than 40 milliseconds, allowing precise control over shock performance. Pairing these front coilovers with compatible ICON 2.5 or 3.0 Series CDEV rear shocks helps maintain balanced front-to-rear vehicle control.
Remote reservoirs increase shock oil capacity and heat-dissipation area, helping resist overheating, cavitation, and damping fade during demanding off-road driving. The kit includes ICON-engineered coil springs, corrosion-resistant CAD-plated shock bodies, 7/8-inch shock shafts, FK rod-end bearings, and CNC-machined 6061 aircraft-grade aluminum components. The coilovers are fully rebuildable and re-tunable for long-term serviceability and future suspension adjustments.
For the Toyota Tundra, lift heights above 2.25 inches require ICON sway bar drop bracket kit 55154. Kit 55154 is required for all lift heights on Tundra TRD Pro and Sequoia applications. When installing 55154 on models equipped with the TRD Off-Road package or TRD Pro, part number 55164 is also required. Professional installation and alignment are recommended after installation.

Features:

• ICON CDE Valve technology enables in-vehicle compression damping adjustment through ICON Intelligent Control

• Adjustable front lift height from 1.25 to 3.5 inches on Toyota Tundra applications

• Adjustable front lift height from 3 to 4.5 inches on Toyota Sequoia applications

• Remote reservoirs help maintain cooler shock operating temperatures during extended off-road use

• Vehicle-specific shock length and valving improve damping, ride quality, and suspension control

• Corrosion-resistant CAD-plated shock bodies with 7/8-inch diameter shafts

• FK rod-end bearings provide extended service life and reduced deflection

• 6061 aircraft-grade aluminum CNC-machined components

• ICON-engineered coil springs included

• Fully rebuildable and re-tunable design

Compatible With
2022 Toyota Tundra
2023 Toyota Sequoia
2023 Toyota Tundra
2024 Toyota Sequoia
2024 Toyota Tundra
2025 Toyota Sequoia
2025 Toyota Tundra
2026 Toyota Sequoia
2026 Toyota Tundra
