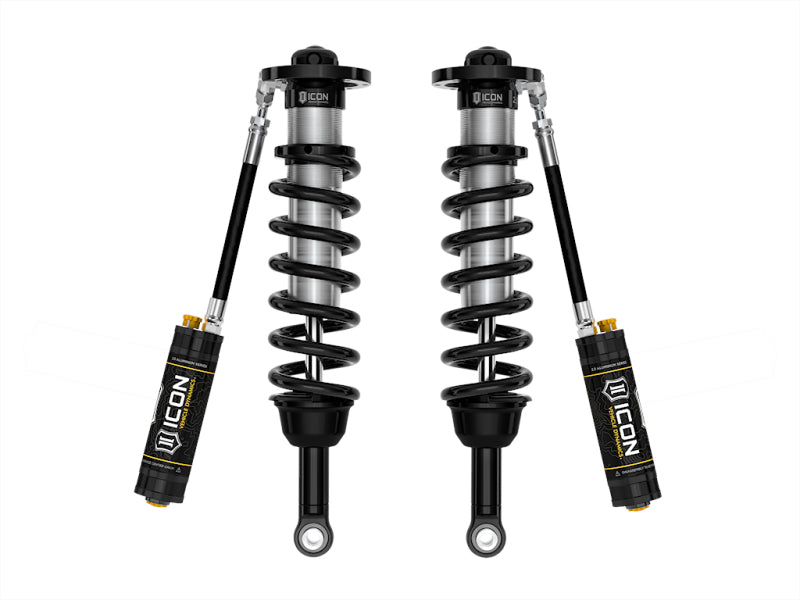

ICON 58770C V.S. 2.5 Series Remote Reservoir CDCV Front Coilover Kit for 2022-2026 Toyota Tundra and 2023-2026 Toyota Sequoia

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2022-2026 Toyota Tundra or 2023-2026 Toyota Sequoia. These adjustable coilovers allow up to 1.25-3.5” of lift height adjustability on Tundra or 3.5-4.5" of front lift on Sequoia, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON 2.0 or 2.5 Aluminum Series rear coilovers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tundra or Sequoia. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. APPLICATION NOTE #374 Tundra lift heights above 2.25” require sway bar drop bracket kit part number 55154. Required for all lift heights on Tundra TRD Pro and Sequoia. When installing 55154 on model equipped with TRD Off-Road package or TRD Pro, part number 55164 is also required.

• Adjustable up to 1.25-3.5" of front lift height over stock on Tundra or 3-4.5" of front lift on Sequoia
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• ICON CDCV equipped for 10 settings of external compression damping adjustment
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• FK rod end bearings for extended longevity and minimal deflection
• Vehicle specific tuned for superior shock damping and control
• Increased wheel travel and improved ride quality over stock
• 6061 Aircraft grade aluminum CNC machined components
• Fully rebuildable and re-tunable
• ICON engineered coil springs

Upgrade the front suspension of your Toyota Tundra or Toyota Sequoia with the ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir coilover kit, part number 58770C. Designed specifically for these applications, the kit provides adjustable front lift height, increased wheel travel, and improved ride quality over stock components. Tundra applications support approximately 1.25 to 3.5 inches of front lift adjustment, while Sequoia applications support approximately 3 to 4.5 inches, helping accommodate larger wheel and tire combinations while maintaining controlled suspension performance.
ICON’s vehicle-specific shock length and valving, combined with a larger 2.5-inch shock body and increased piston area, deliver precise damping and enhanced control on pavement and off-road terrain. Remote reservoirs increase shock oil capacity and cooling surface area to help resist heat-related damper fade during extended trail use, slow-speed technical driving, or high-speed desert travel. The included Compression Damping Control Valves provide 10 external compression settings, allowing the suspension to be tuned for street driving, rock crawling, or aggressive off-road performance.
The ICON 58770C coilovers feature corrosion-resistant CAD-plated shock bodies, 7/8-inch shock shafts, FK rod end bearings, ICON-engineered coil springs, and CNC-machined 6061 aircraft-grade aluminum components. The coilovers are fully rebuildable and re-tunable for long-term serviceability. Pairing them with ICON 2.0 or 2.5 Aluminum Series rear coilovers helps balance front-to-rear suspension control for a more consistent driving experience. For Tundra lift heights above 2.25 inches, sway bar drop bracket kit 55154 is required. Kit 55154 is required at all lift heights on Tundra TRD Pro and Sequoia models; models equipped with the TRD Off-Road package or TRD Pro also require part number 55164.

Features:

• Adjustable front lift height from approximately 1.25 to 3.5 inches on Toyota Tundra applications

• Adjustable front lift height from approximately 3 to 4.5 inches on Toyota Sequoia applications

• Remote reservoirs help maintain cooler operating temperatures during extended off-road use

• ICON CDCV provides 10 settings of external compression damping adjustment

• Vehicle-specific shock length and valving improve damping, control, and ride quality

• 2.5-inch shock bodies and increased piston area provide enhanced suspension performance

• Corrosion-resistant CAD-plated shock bodies with 7/8-inch diameter shafts

• FK rod end bearings promote extended service life and reduced deflection

• ICON-engineered coil springs support consistent suspension performance

• CNC-machined 6061 aircraft-grade aluminum components

• Fully rebuildable and re-tunable design

Compatible With
2022 Toyota Tundra
2023 Toyota Sequoia
2023 Toyota Tundra
2024 Toyota Sequoia
2024 Toyota Tundra
2025 Toyota Sequoia
2025 Toyota Tundra
2026 Toyota Sequoia
2026 Toyota Tundra
