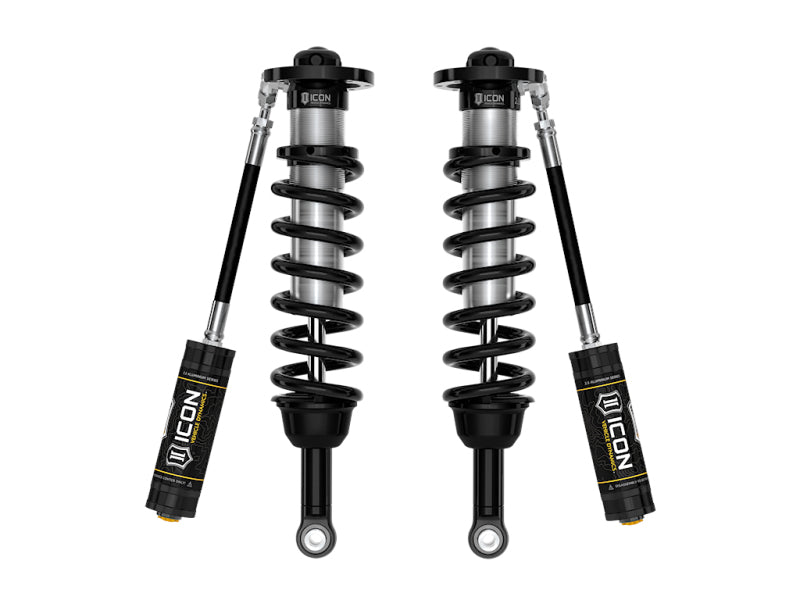

ICON 58770 Vehicle Dynamics 2.5 Series VS Remote Reservoir Front Coilover Kit for Toyota Tundra and Sequoia

$2,035.23

Skip to product information
1 of 6

Regular price $2,035.23
Sale price $2,035.23 Regular price $2,035.23
Shipping calculated at checkout.
ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2022-2026 Toyota Tundra or 2023-2026 Toyota Sequoia. These adjustable coilovers allow up to 1.25-3.5” of lift height adjustability on Tundra or 3-4.5" of lift on Sequoia, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. When paired with ICON 2.0 or 2.5 Aluminum Series rear coilovers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tundra or Sequoia. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. APPLICATION NOTE #374: Tundra lift heights above 2.25” require sway bar drop bracket kit part number 55154. Required for all lift heights on Tundra TRD Pro and Sequoia. When installing 55154 on model equipped with TRD Off-Road package or TRD Pro, part number 55164 is also required.
  • Adjustable up to 1.25-3.5" of front lift height over stock (Tundra) or 3-4.5" of lift over stock (Sequoia)
  • Remote reservoirs maintain cooler operating temperatures during extended off-road use
  • 100% Bolt-on - no drilling, cutting or welding necessary for installation
  • Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
  • FK rod end bearings for extended longevity and minimal deflection
  • Vehicle specific tuned for superior shock damping and control
  • Increased wheel travel and improved ride quality over stock
  • 6061 Aircraft grade aluminum CNC machined components
  • Fully rebuildable and re-tunable
  • ICON engineered coil springs

Upgrade the front suspension of your 2022–2026 Toyota Tundra or 2023–2026 Toyota Sequoia with the ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover kit, part number 58770. Designed specifically for each vehicle platform, these adjustable coilovers provide increased wheel travel, improved ride quality, and more controlled suspension performance on and off the road. The adjustable lift range supports larger and more aggressive wheel and tire combinations while maintaining vehicle-specific shock tuning.
The 2.5-inch shock bodies and increased piston area improve damping performance compared with stock components. Remote reservoirs increase shock oil volume and heat dissipation surface area, helping resist overheating, cavitation, and damper fade during extended off-road use. ICON-engineered coil springs, vehicle-specific shock length and valving, and FK rod end bearings work together to provide balanced control and extended component longevity. Pair the front coilovers with ICON 2.0 or 2.5 Aluminum Series rear coilovers for a properly matched suspension system.
This kit is fully bolt-on and requires no drilling, cutting, or welding. The corrosion-resistant CAD-plated shock bodies, 7/8-inch shafts, and CNC-machined 6061 aircraft-grade aluminum components are built for demanding use. The coilovers are fully rebuildable and re-tunable, allowing future servicing and performance adjustments. For Toyota Tundra lift heights above 2.25 inches, sway bar drop bracket kit part number 55154 is required. Part number 55154 is required for all lift heights on Tundra TRD Pro and Sequoia models; vehicles equipped with the TRD Off-Road package or TRD Pro also require part number 55164 when installing 55154.

Features:

  • Adjustable front lift range of 1.25–3.5 inches over stock for Toyota Tundra or 3–4.5 inches over stock for Toyota Sequoia
  • Remote reservoirs help maintain cooler operating temperatures during extended off-road use
  • 100% bolt-on installation with no drilling, cutting, or welding required
  • Corrosion-resistant CAD-plated shock bodies with 7/8-inch shock shafts
  • FK rod end bearings provide extended longevity and minimal deflection
  • Vehicle-specific tuning delivers improved shock damping and suspension control
  • Increased wheel travel and improved ride quality compared with stock components
  • CNC-machined 6061 aircraft-grade aluminum components
  • Fully rebuildable and re-tunable design
  • ICON-engineered coil springs

Compatible With
2022 Toyota Tundra
2023 Toyota Sequoia
2023 Toyota Tundra
2024 Toyota Sequoia
2024 Toyota Tundra
2025 Toyota Sequoia
2025 Toyota Tundra
2026 Toyota Sequoia
2026 Toyota Tundra
