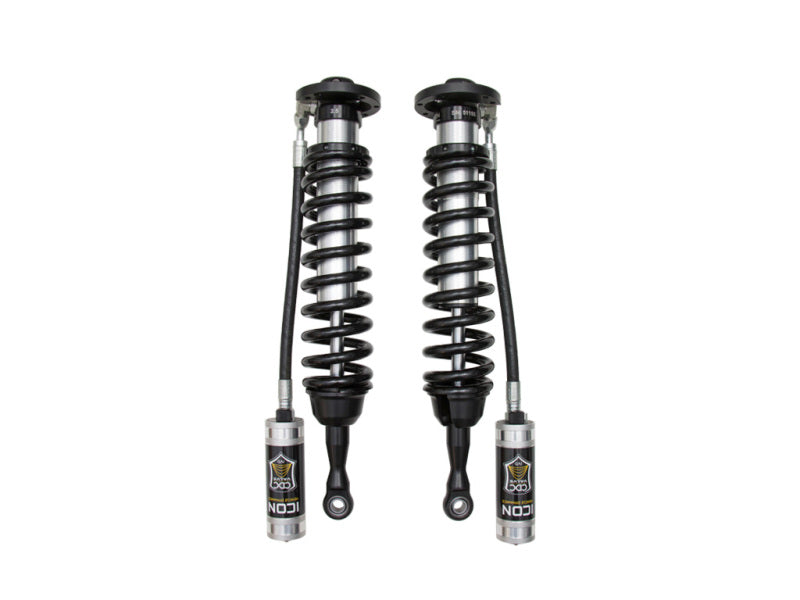

ICON 58750C V.S. 2.5 Series Remote Reservoir CDCV Coilover Kit for 2007-2021 Toyota Tundra and 2008-2022 Toyota Sequoia

The ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks w/ CDCV are an incredible upgrade for the front end of the 2007-2021 Toyota Tundra and 2008-2022 Toyota Sequoia. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 1-3” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 adjustment settings from soft to hard. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Tundra or Sequoia. These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock’s larger 2.5” body and increased piston area improves damping ability and ride quality across varying types of terrain. APPLICATION NOTE #24: Factory UCA's will not align properly past 2.5” of lift. Above 2.5” of lift an aftermarket UCA is recommended.

• Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• ICON CDCV equipped for 10 settings of external compression damping adjustment
• Height-adjustable coilovers offer 1.-3" of lift height adjustment over stock
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• FK Rod End bearings for extended longevity and minimal deflection
• Vehicle specific shock length yields maximum wheel travel
• 6061 Aircraft grade aluminum CNC machined components
• 2.5" diameter shock bodies with remote reservoirs
• Fully rebuildable and re-tunable
• ICON engineered coil springs

Upgrade the front suspension of your Toyota Tundra or Sequoia with the ICON Vehicle Dynamics V.S. Series 2.5 remote reservoir coilover kit, part number 58750C. Designed for the 2007-2021 Toyota Tundra and 2008-2022 Toyota Sequoia, this vehicle-specific system delivers sport-tuned damping, improved control, and enhanced ride quality on pavement and off-road terrain. Adjustable lift height supports larger, more aggressive wheel and tire combinations while maintaining application-specific suspension performance.
The 2.5-inch shock bodies and increased piston area provide greater damping capability than factory components, while remote reservoirs help control operating temperatures during extended or demanding use. The included ICON CDC Valve offers 10 externally adjustable compression settings, allowing drivers to fine-tune the ride from soft to firm without removing the shocks. When matched with compatible ICON rear shocks, the system helps create balanced suspension performance from front to rear.
ICON engineered coil springs, vehicle-specific shock lengths, and height-adjustable coilovers help maximize wheel travel and suspension response. Corrosion-resistant CAD-plated shock bodies, 7/8-inch shafts, FK rod-end bearings, and CNC-machined 6061 aircraft-grade aluminum components support long-term durability. The coilovers are fully rebuildable and re-tunable for continued serviceability. Application note: factory upper control arms may not align properly beyond 2.5 inches of lift; aftermarket upper control arms are recommended above that height.

Features:

• Vehicle-specific valving for improved damping, control, and ride quality over stock

• Remote reservoirs help maintain cooler operating temperatures during extended off-road use

• Included CDC Valve provides 10 settings of external compression damping adjustment

• Height-adjustable coilovers provide 1 to 3 inches of lift over stock

• 2.5-inch shock bodies with increased piston area for improved damping performance

• Corrosion-resistant CAD-plated shock bodies with 7/8-inch diameter shafts

• FK rod-end bearings support extended service life and minimal deflection

• Vehicle-specific shock length helps maximize wheel travel

• CNC-machined 6061 aircraft-grade aluminum components

• Fully rebuildable and re-tunable design

• ICON engineered coil springs

• Recommended for use with compatible ICON rear shocks for balanced vehicle control

Compatible With
2007 Toyota Tundra
2008 Toyota Sequoia
2008 Toyota Tundra
2009 Toyota Sequoia
2009 Toyota Tundra
2010 Toyota Sequoia
2010 Toyota Tundra
2011 Toyota Sequoia
2011 Toyota Tundra
2012 Toyota Sequoia
2012 Toyota Tundra
2013 Toyota Sequoia
2013 Toyota Tundra
2014 Toyota Sequoia
2014 Toyota Tundra
2015 Toyota Sequoia
2015 Toyota Tundra
2016 Toyota Sequoia
2016 Toyota Tundra
2017 Toyota Sequoia
2017 Toyota Tundra
2018 Toyota Sequoia
2018 Toyota Tundra
2019 Toyota Sequoia
2019 Toyota Tundra
2020 Toyota Sequoia
2020 Toyota Tundra
2021 Toyota Sequoia
2021 Toyota Tundra
2022 Toyota Sequoia
