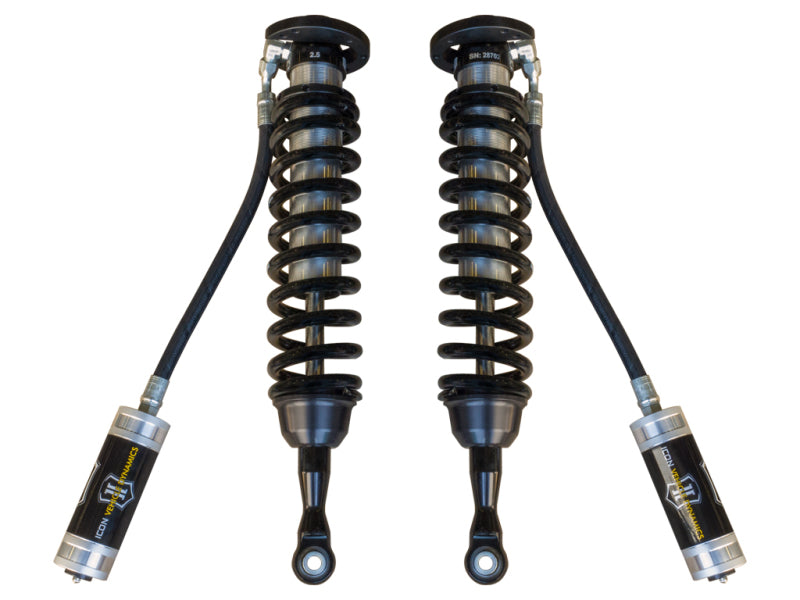

ICON 58750 Vehicle Dynamics 2.5 Series Remote Reservoir Front Coilover Kit for 2007-2021 Toyota Tundra and 2008-2022 Toyota Sequoia

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2007-2021 Toyota Tundra and 2008-2022 Toyota Sequoia. These adjustable coilovers allow up 1-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving, their large 2.5” shock body with increased piston surface area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tundra or Sequoia. These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock’s larger 2.5” body and increased piston area improves damping ability and ride quality across varying types of terrain. APPLICATION NOTE #24: Factory UCA's will not align properly past 2.5” of lift. Above 2.5” of lift an aftermarket UCA is recommended.

• Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• Height-adjustable coilovers offer 1.-3" of lift height adjustment over stock
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• FK rod end bearings for extended longevity and minimal deflection
• Vehicle specific shock length yields maximum wheel travel
• 6061 Aircraft grade aluminum CNC machined components
• Hose Length Optimized for Increased Fluid Transfer
• 2.5" diameter shock bodies with remote reservoirs
• Fully rebuildable and re-tunable
• ICON engineered coil springs

Upgrade the front suspension of your Toyota Tundra or Sequoia with the ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover kit, part number 58750. Designed specifically for the 2007-2021 Toyota Tundra and 2008-2022 Toyota Sequoia, this height-adjustable system provides approximately 1 to 3 inches of lift adjustment over stock. The added ride height helps accommodate larger wheel and tire combinations while improving suspension performance on and off the road.
ICON uses vehicle-specific shock lengths, valving, and coil spring rates to deliver maximum available wheel travel, improved damping, and enhanced vehicle control. The 2.5-inch shock bodies provide increased piston surface area compared with factory components, supporting more consistent ride quality across changing terrain. Remote reservoirs increase shock oil capacity and heat-dissipation surface area, helping resist overheating, cavitation, and damper fade during extended or demanding off-road use.
Each ICON 58750 coilover is built with corrosion-resistant CAD-plated shock bodies, 7/8-inch shock shafts, FK rod end bearings, and CNC-machined 6061 aircraft-grade aluminum components. The hose length is optimized for efficient fluid transfer, while ICON-engineered coil springs are matched to this application. The shocks are fully rebuildable and re-tunable for long-term serviceability. Pairing this front kit with ICON 2.0 or 2.5 Aluminum Series rear shocks helps balance suspension control from front to rear. Application note: Factory upper control arms may not align properly beyond 2.5 inches of lift; an aftermarket upper control arm is recommended above that height.

Features:

• Vehicle-specific tuning for improved shock damping, vehicle control, and ride quality over stock

• Remote reservoirs help maintain cooler operating temperatures during extended off-road use

• Height-adjustable coilovers provide approximately 1 to 3 inches of lift adjustment over stock

• Corrosion-resistant CAD-plated shock bodies with 7/8-inch diameter shafts

• FK rod end bearings provide extended longevity and minimal deflection

• Vehicle-specific shock length maximizes available wheel travel

• CNC-machined 6061 aircraft-grade aluminum components

• Optimized hose length promotes increased fluid transfer

• 2.5-inch shock bodies with remote reservoirs

• Fully rebuildable and re-tunable design

• ICON-engineered coil springs

• Recommended for use with ICON 2.0 or 2.5 Aluminum Series rear shocks for balanced suspension performance

Compatible With
2007 Toyota Tundra
2008 Toyota Sequoia
2008 Toyota Tundra
2009 Toyota Sequoia
2009 Toyota Tundra
2010 Toyota Sequoia
2010 Toyota Tundra
2011 Toyota Sequoia
2011 Toyota Tundra
2012 Toyota Sequoia
2012 Toyota Tundra
2013 Toyota Sequoia
2013 Toyota Tundra
2014 Toyota Sequoia
2014 Toyota Tundra
2015 Toyota Sequoia
2015 Toyota Tundra
2016 Toyota Sequoia
2016 Toyota Tundra
2017 Toyota Sequoia
2017 Toyota Tundra
2018 Toyota Sequoia
2018 Toyota Tundra
2019 Toyota Sequoia
2019 Toyota Tundra
2020 Toyota Sequoia
2020 Toyota Tundra
2021 Toyota Sequoia
2021 Toyota Tundra
2022 Toyota Sequoia
